Wire Mesh Cable Tray Straight Section - Electro-Zinc Resistant Steel - 12" W x 2" D x 5' L - Chrome Finish
Wire Mesh Cable Tray Straight Section - Electro-Zinc Resistant Steel - 12" W x 2" D x 5' L - Chrome Finish
Wire Mesh Cable Tray Straight Section - Electro-Zinc Resistant Steel - 12" W x 2" D x 5' L - Chrome Finish
Wire Mesh Cable Tray Straight Section - Electro-Zinc Resistant Steel - 12" W x 2" D x 5' L - Chrome Finish
Wire Mesh Cable Tray Straight Section - Electro-Zinc Resistant Steel - 12" W x 2" D x 5' L - Chrome Finish
Wire Mesh Cable Tray Straight Section - Electro-Zinc Resistant Steel - 12" W x 2" D x 5' L - Chrome Finish

Wire Mesh Cable Tray Straight Section - Electro-Zinc Resistant Steel - 12" W x 2" D x 5' L - Chrome Finish

SKU KK-12X2X5-EZ
$49.96 - $49.96
$49.96
$49.96 - $49.96
$49.96
Request a quote

Large Quantity & Frequent Purchaser Discounts

Are you looking to place frequent or large quantity orders? Call, email or chat with us to inquire about applicable discounts!

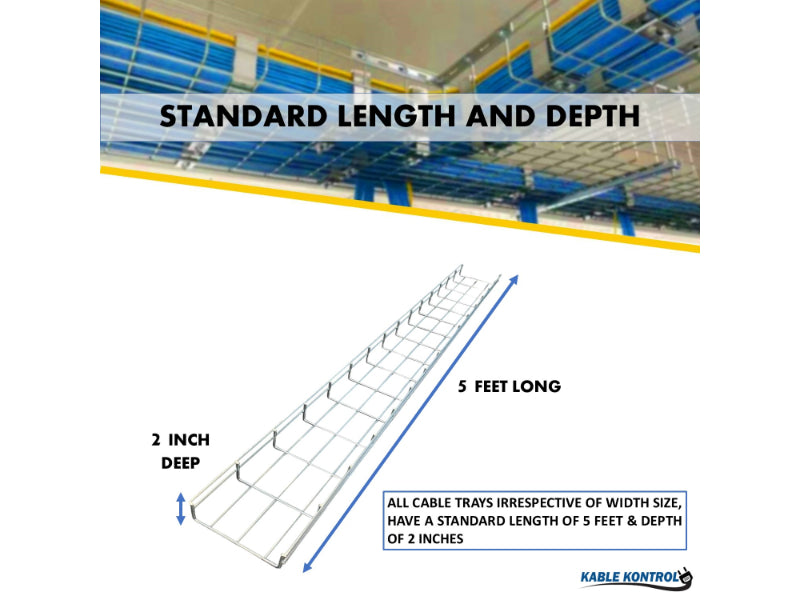

  • Product Size - 12" W x 2" D x 5' L
  • Color - Chrome
  • Electro Zinc Resistant Finish protects the steel wire mesh cable trays from weather & chemical corrosion
  • Suspends cables, out of the way, in an expandable & versatile fashion

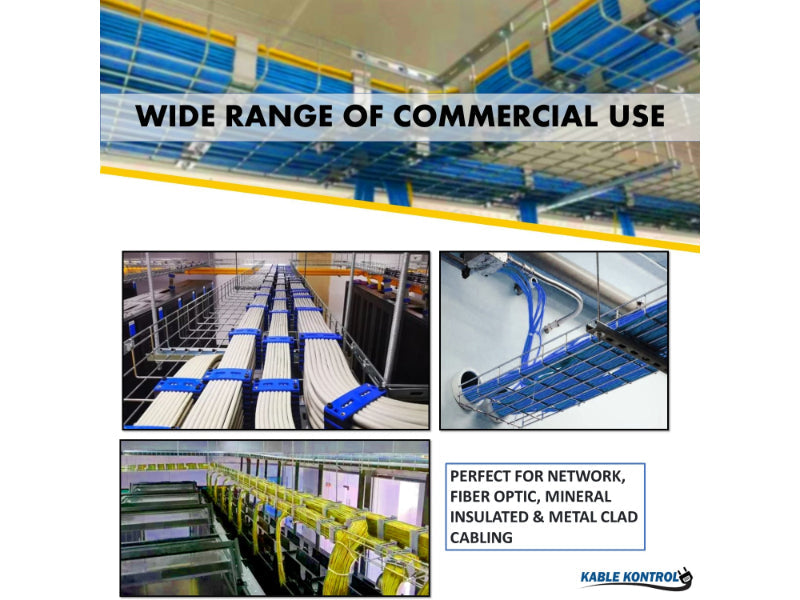

  • Perfect for network, fiber optic, mineral insulated & metal clad cabling

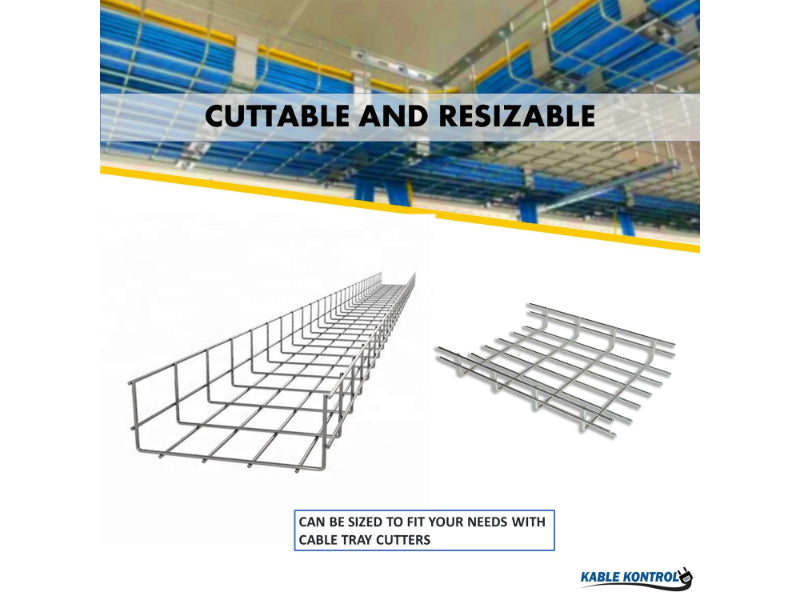

  • Can be sized to fit your needs with cable tray cutters
  • NEC Approved

Kable Kontrol® Chrome Cable Tray Straight Section - Electro-Zinc Plated Steel is a professional quality Steel Wire Mesh Cable Trays for your building's wire management needs. Our standard and budget-friendly cable tray system comes has a wire thickness of 0.197". Cable trays all have electro-zinc resistant finish and are NEC Approved.

ONLINE RETAILERS

Technical Specifications

Part # Color Length Width Height Cable Fill (50% Fill) UL
 Listed
Actual Area
Inside Tray (in²) 		Number of
CAT 5e Cables 		Number of
CAT 6 Cables 		Number of
CAT 6A Cables
KK-4X2X5-EZ Silver 5 FT 4” 2" 8.2 118 83 64 _
KK-4x2x10-EZ Silver 10 FT 4” 2" 8.2 118 83 64 _
KK-6X2X5-EZ Silver 5 FT 6” 2" 12.1 175 123 95 _
KK-6x2x10-EZ Silver 10 FT 6” 2" 12.1 175 123 95 _
KK-8X2X5-EZ Silver 5 FT 8” 2" 16.1 231 163 125 _
KK-8x2x10-EZ Silver 10 FT 8” 2" 16.1 231 163 125 _
KK-12X2X5-EZ Silver 5 FT 12” 2" 23.9 345 243 187 E535093
KK-12x2x10-EZ Silver 10 FT 12” 2" 23.9 345 243 187 E535093
KK-4X4X5-EZ Silver 5 FT 4" 4” 15.8 227 160 123 E535093
KK-6X4X5-EZ Silver 5 FT 6" 4” 23.6 341 240 185 E535093
KK-8X4X5-EZ Silver 5 FT 8" 4” 31.5 454 321 247 E535093
KK-12X4X5-EZ Silver 5 FT 12" 4” 47.5 686 484 372 E535093
KK-18X4X5-EZ Silver 5 FT 18" 4" 71.5 1032 728 560 E535093
KK-24X6X5-EZ Silver 5 FT 24" 6” 143.3 2068 1459 1123 E535093

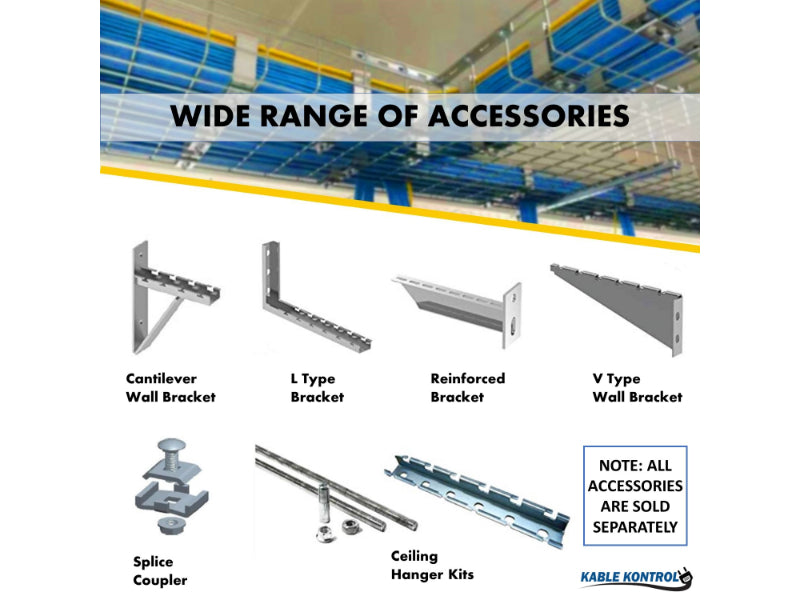

Cable Tray Accessories
