Twin Wire Ferrules - Nylon Insulated

Twin Wire Ferrules - Nylon Insulated

SKU WFT-20-WH-500

Login To See Discounted Pricing

$25.76 - $79.20
$27.48
$25.76 - $79.20
$27.48
Request a quote

Want to Sell Our Products. Click Here

  • UL listed (E549077): Complies with strict safety and quality standards
  • Maximum electrical rating: 105°C, 600 volts
  • Connector material: High-quality copper tube for superior conductivity
  • Insulation material: Durable nylon sleeve for added electrical and mechanical protection

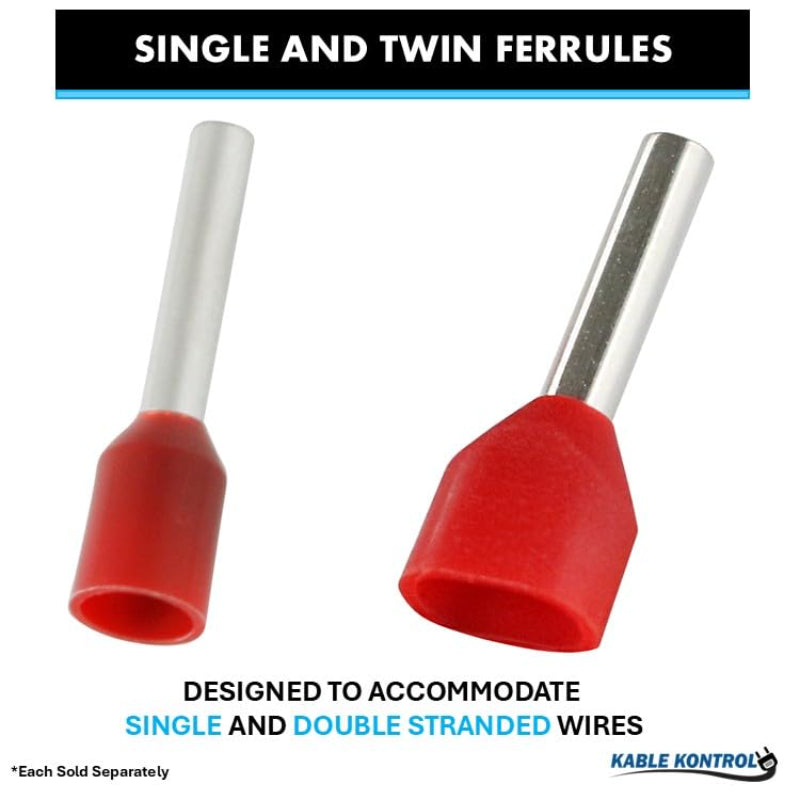

  • Terminates two wires: Designed to join two stranded wires in one ferrule for neat, efficient connections
  • Prevents wire fraying: Ensures clean, strong, and secure terminations
  • Easy insertion: Nylon insulation helps guide wires smoothly into terminal blocks
  • Enhanced safety: Improves connection reliability and reduces risk of shorts or loose wires
  • Convenient packaging: Sold in packs of 500 pieces for cost-effective, bulk use
  • Versatile applications: Perfect for control panels, machinery wiring, and compact power distribution installations

Twin nylon insulated wire ferrules provide a reliable and professional way to terminate two stranded wires together in a single, clean connection. Featuring a high-conductivity copper tube and a durable nylon insulation sleeve, these ferrules ensure strong, secure electrical connections while preventing wire strand fraying. UL listed for safety and performance, they are rated for up to 105°C and 600 volts, making them ideal for control panels, power distribution systems, and compact multi-wire terminations. The nylon insulation improves dielectric strength, guides wires easily into terminals, and reduces installation time. Conveniently sold in packs of 500 pieces, these ferrules help keep projects efficient and organized.

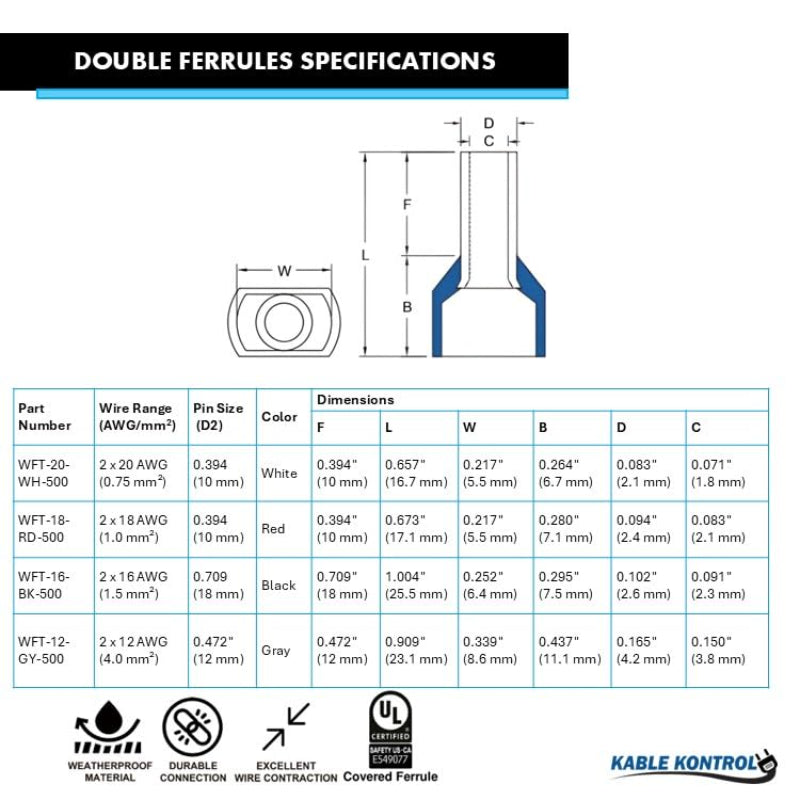

Technical Specifications

Part Number Wire Range (AWG/mm2)

Pin Size
 (D2)

 Color Dimensions
F L W B D C

WFT-20-WH-500

 2 x 20 AWG
(0.75 mm²)		 0.394
(10 mm)		 White 0.394"
(10 mm)		 0.657"
(16.7 mm)		 0.217"
(5.5 mm)		 0.264"
(6.7 mm)		 0.083"
(2.1 mm)		 0.071"
(1.8 mm)

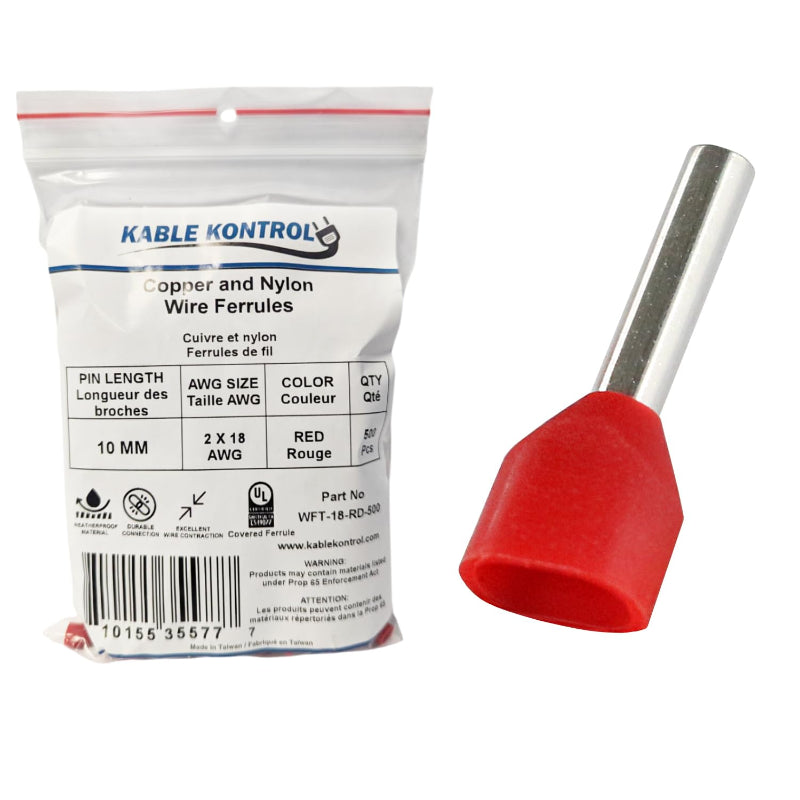

WFT-18-RD-500

 2 x 18 AWG
(1.0 mm²)		 0.394
(10 mm)		 Red 0.394"
(10 mm)		 0.673"
(17.1 mm)		 0.217"
(5.5 mm)		 0.280"
(7.1 mm)		 0.094"
(2.4 mm)		 0.083"
(2.1 mm)

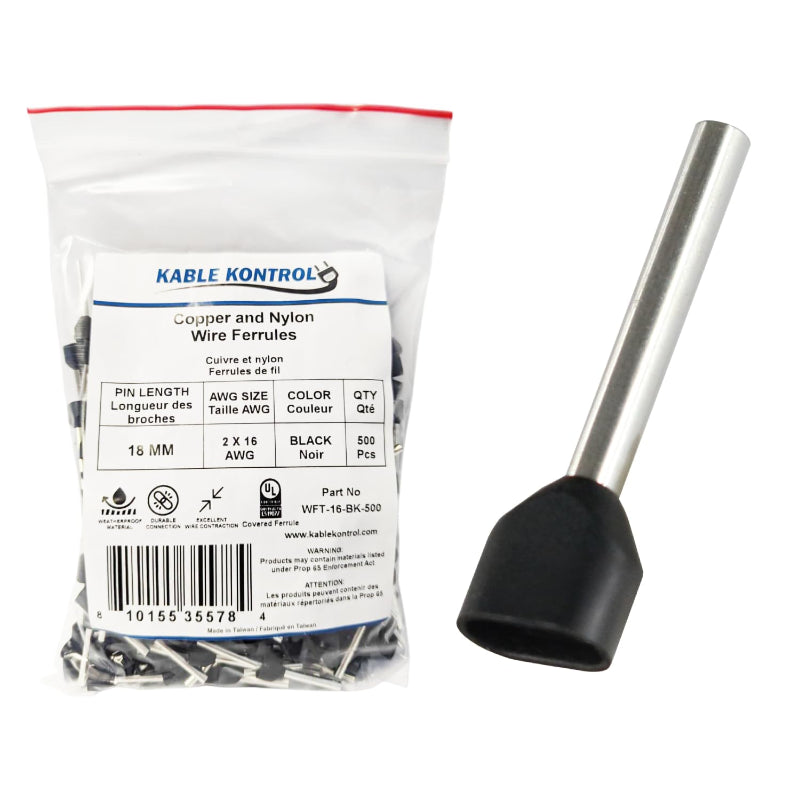

WFT-16-BK-500

 2 x 16 AWG
(1.5 mm²)		 0.709
(18 mm)		 Black 0.709"
(18 mm)		 1.004"
(25.5 mm)		 0.252"
(6.4 mm)		 0.295"
(7.5 mm)		 0.102"
(2.6 mm)		 0.091"
(2.3 mm)

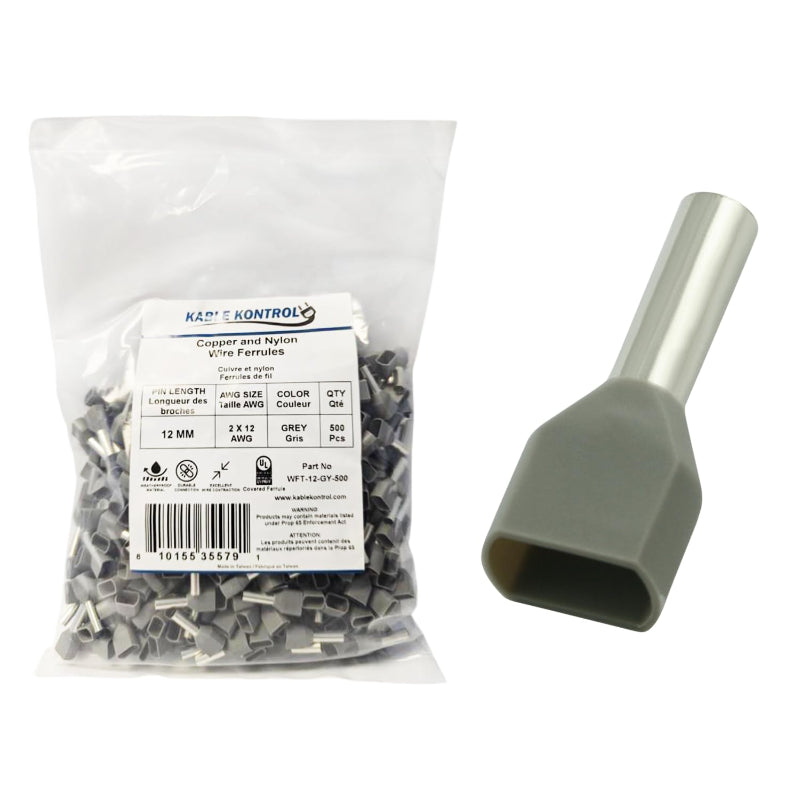

WFT-12-GY-500

2 x 12 AWG
(4.0 mm²)

0.472"
(12 mm)

 Grey 0.472"
(12 mm)		 0.909"
(23.1 mm)		 0.339"
(8.6 mm)		 0.437"
(11.1 mm)		 0.165"
(4.2 mm)		 0.150"
(3.8 mm)
