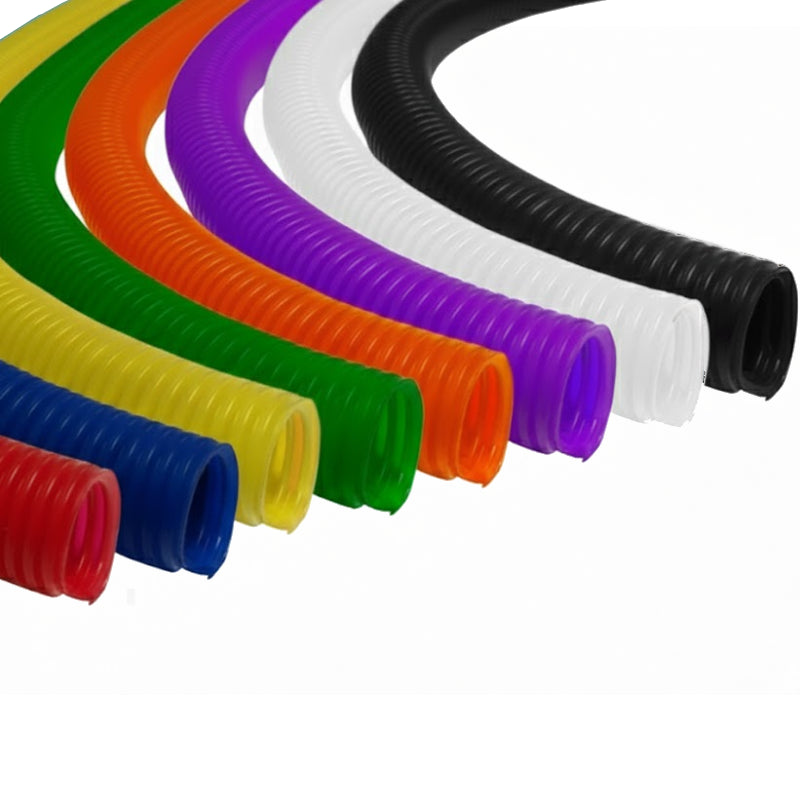

Convoluted Split Wire Loom Tubing - Polyethylene
Convoluted Split Wire Loom Tubing - Polyethylene
Convoluted Split Wire Loom Tubing - Polyethylene
Convoluted Split Wire Loom Tubing - Polyethylene
Convoluted Split Wire Loom Tubing - Polyethylene
Convoluted Split Wire Loom Tubing - Polyethylene
Convoluted Split Wire Loom Tubing - Polyethylene
Convoluted Split Wire Loom Tubing - Polyethylene
Convoluted Split Wire Loom Tubing - Polyethylene

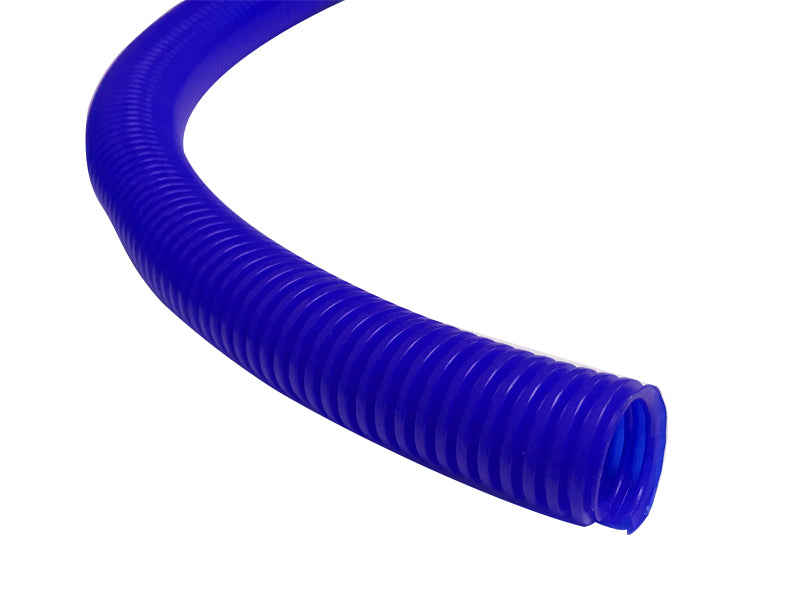

Blue split wire loom tubing per foot
Blue split wire loom tubing with pre-cut sections
Convoluted Split Wire Loom Tubing - Polyethylene

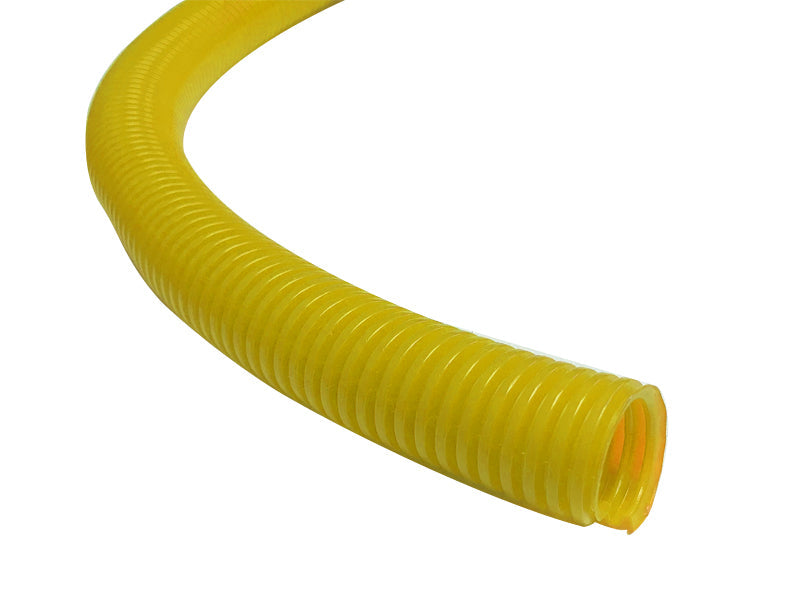

Yellow split wire loom tubing per foot
Yellow split wire loom tubing with pre-cut sections
Convoluted Split Wire Loom Tubing - Polyethylene

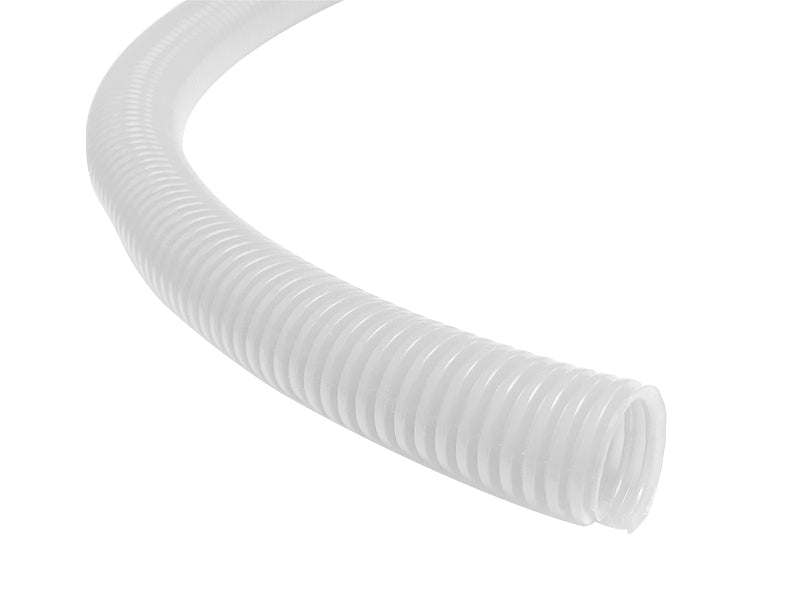

White split wire loom tubing per foot

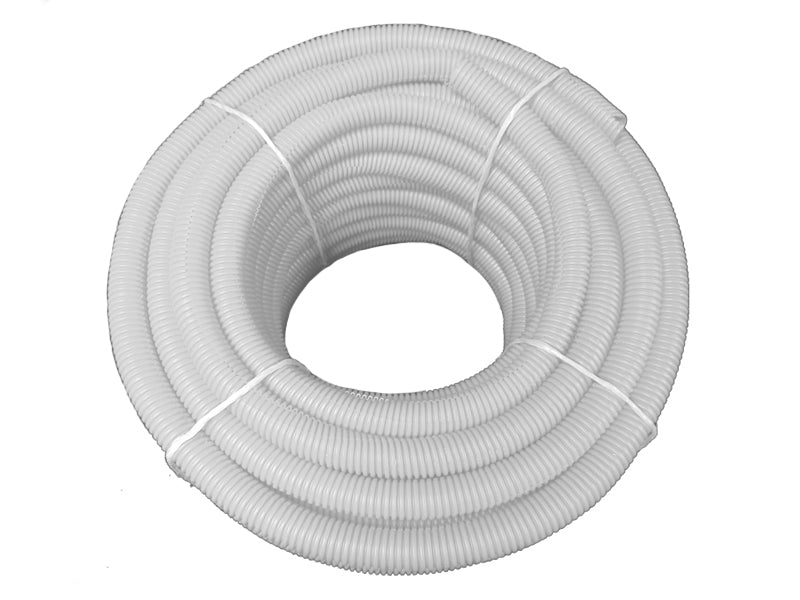

White split wire loom tubing with pre-cut sections
White split wire loom tubing in a box

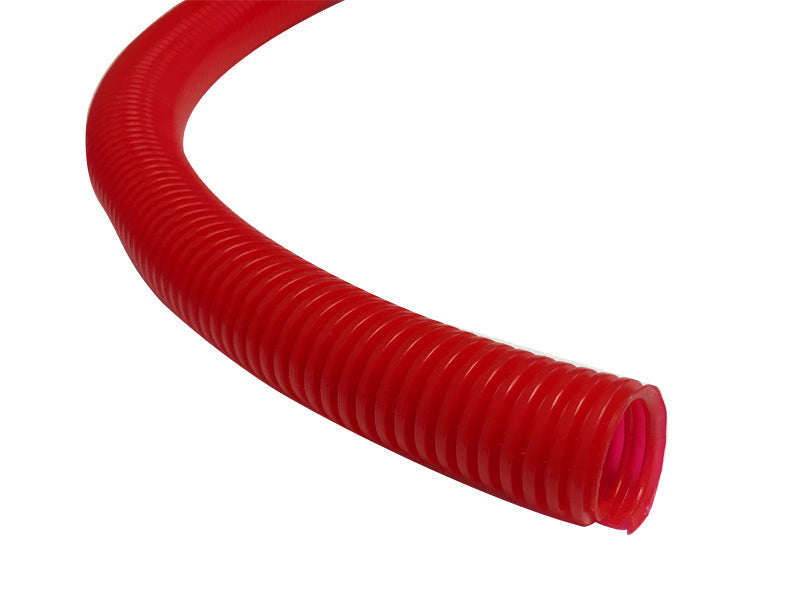

Red split wire loom tubing per foot
Red split wire loom tubing with pre-cut sections
Convoluted Split Wire Loom Tubing - Polyethylene

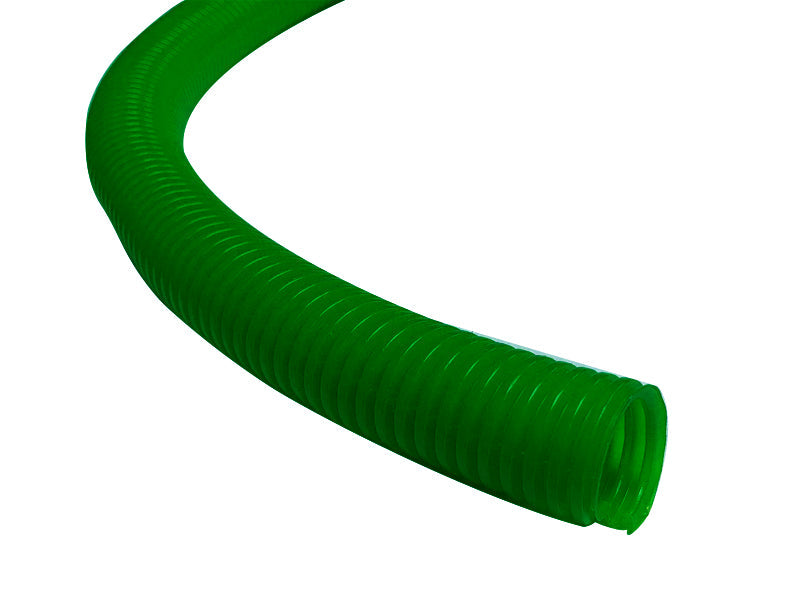

Green split wire loom tubing per foot
Green split wire loom tubing with pre-cut sections
Convoluted Split Wire Loom Tubing - Polyethylene
Purple split wire loom tubing per foot

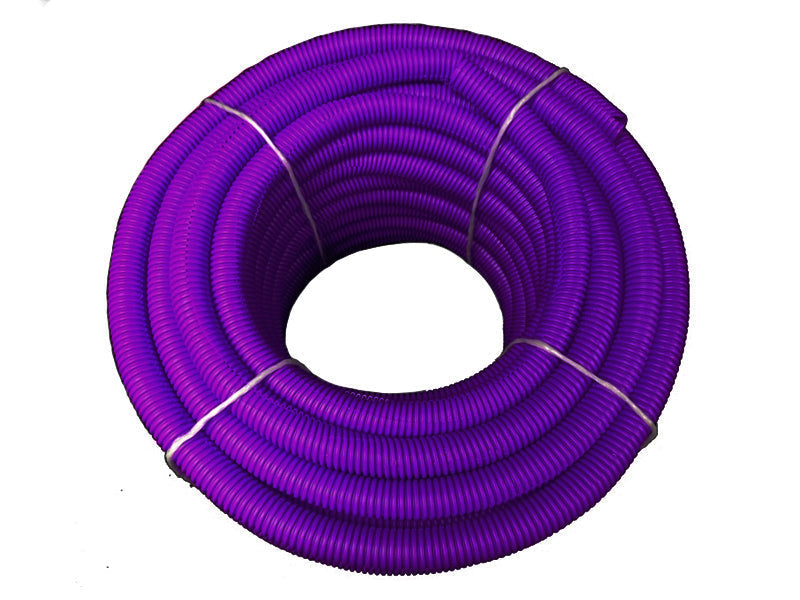

Purple split wire loom tubing with pre-cut sections
Convoluted Split Wire Loom Tubing - Polyethylene

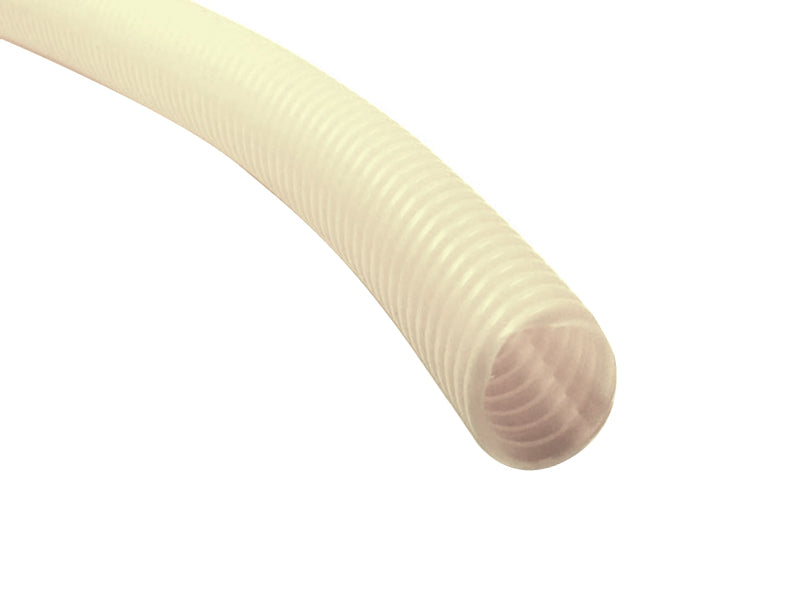

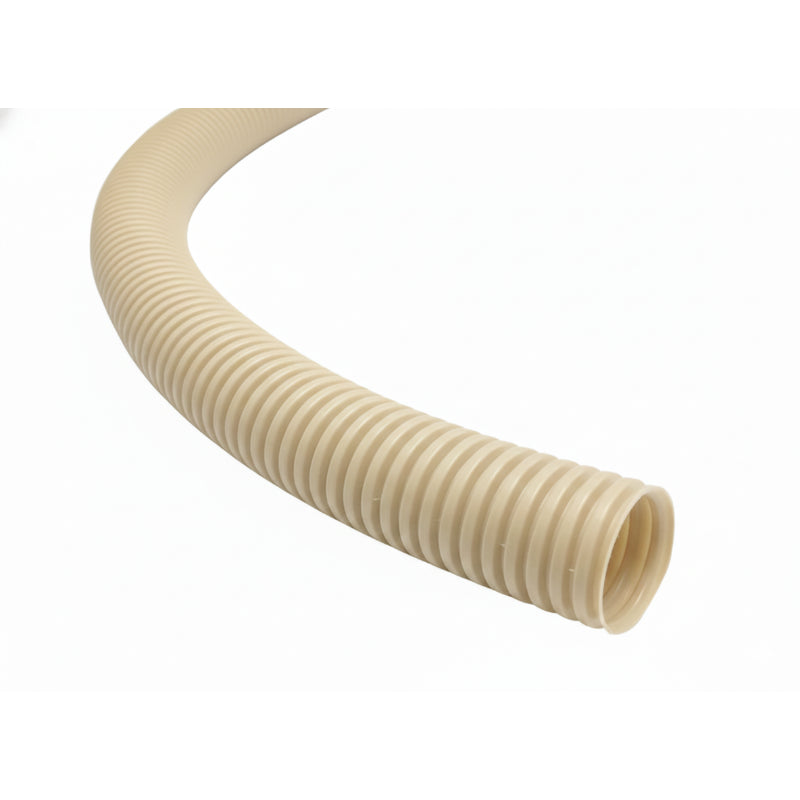

Beige split wire loom tubing per foot
Beige split wire loom tubing with pre-cut sections
Convoluted Split Wire Loom Tubing - Polyethylene
Orange split wire loom tubing per foot

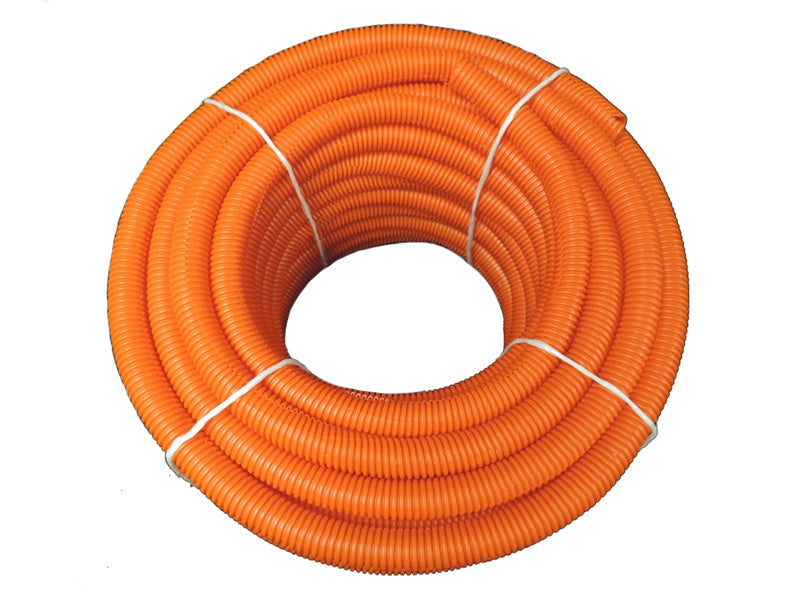

Orange split wire loom tubing with pre-cut sections
Convoluted Split Wire Loom Tubing - Polyethylene
Gray split wire loom tubing per foot
Gray split wire loom tubing with pre-cut sections
Convoluted Split Wire Loom Tubing - Polyethylene
Convoluted Split Wire Loom Tubing - Polyethylene

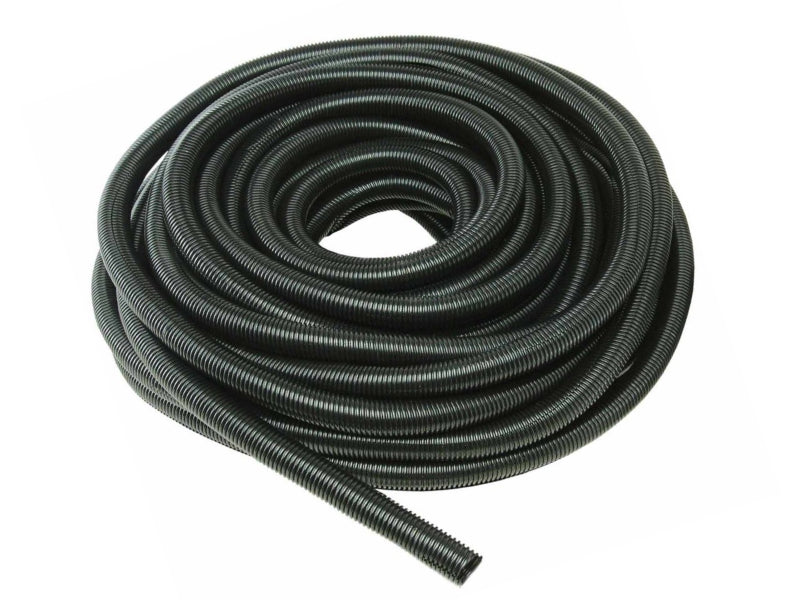

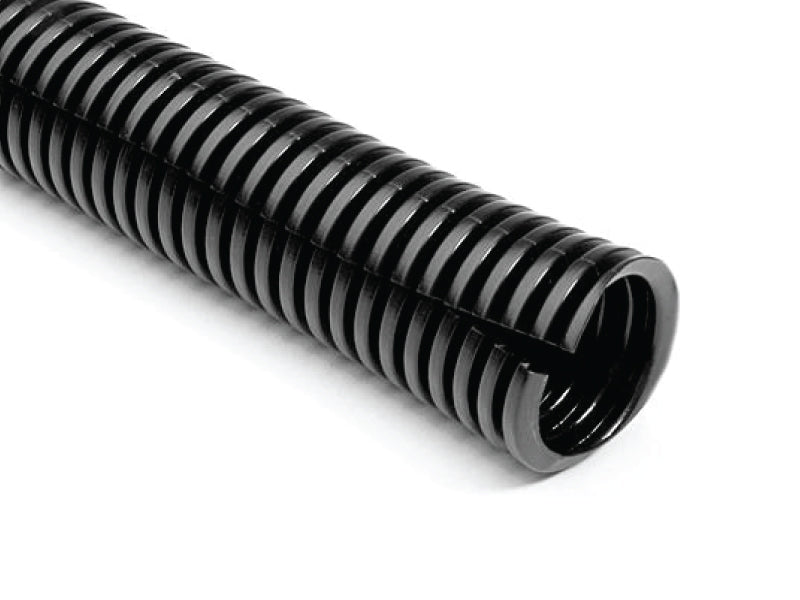

Black convoluted wiring loom
Convoluted Split Wire Loom Tubing - Polyethylene
Blue split wire loom tubing per foot
Blue split wire loom tubing with pre-cut sections
Yellow split wire loom tubing per foot
Yellow split wire loom tubing with pre-cut sections
White split wire loom tubing per foot
White split wire loom tubing with pre-cut sections
White split wire loom tubing in a box
Red split wire loom tubing per foot
Red split wire loom tubing with pre-cut sections
Green split wire loom tubing per foot
Green split wire loom tubing with pre-cut sections
Purple split wire loom tubing per foot
Purple split wire loom tubing with pre-cut sections
Beige split wire loom tubing per foot
Beige split wire loom tubing with pre-cut sections
Orange split wire loom tubing per foot
Orange split wire loom tubing with pre-cut sections
Gray split wire loom tubing per foot
Gray split wire loom tubing with pre-cut sections
Black convoluted wiring loom

Convoluted Split Wire Loom Tubing - Polyethylene

SKU WL901-BK-10
$3.46 - $2,763.98
$3.46
$3.46 - $2,763.98
$3.46
Color: Black
Request a quote

Large Quantity & Frequent Purchaser Discounts

Are you looking to place frequent or large quantity orders? Call, email or chat with us to inquire about applicable discounts!

Click Here to Request a Quote

Kable Kontrol Convoluted Split Wire Loom Tubing Features

  • MADE IN NORTH AMERICA
  • Resistant To Auto Fluids & Chemicals
  • Temperature Range -40ºF to 200F (-40ºC - 93ºC)
  • Made of Durable Polyethylene
  • Slit Wire Looms Allows For Easy And Quick Installation

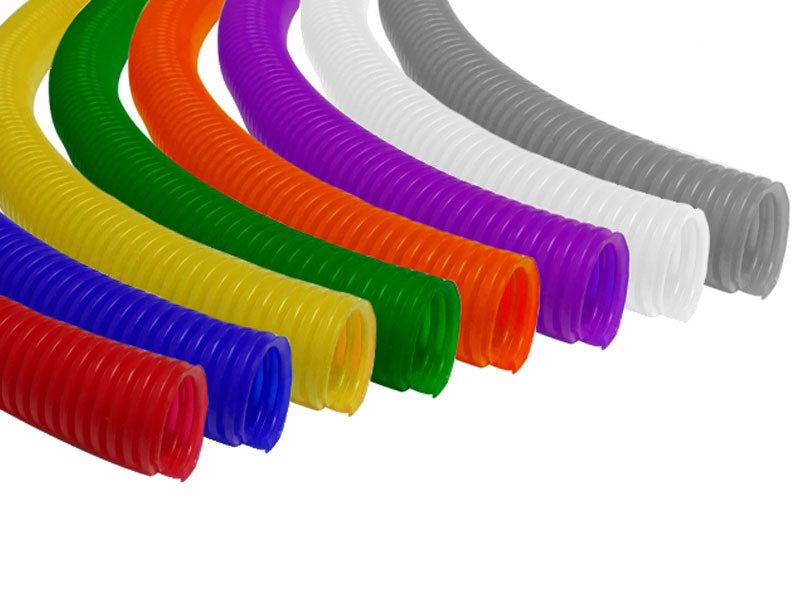

  • Available In Many Colors And Sizes
  • REACH & RoHS COMPLIANT

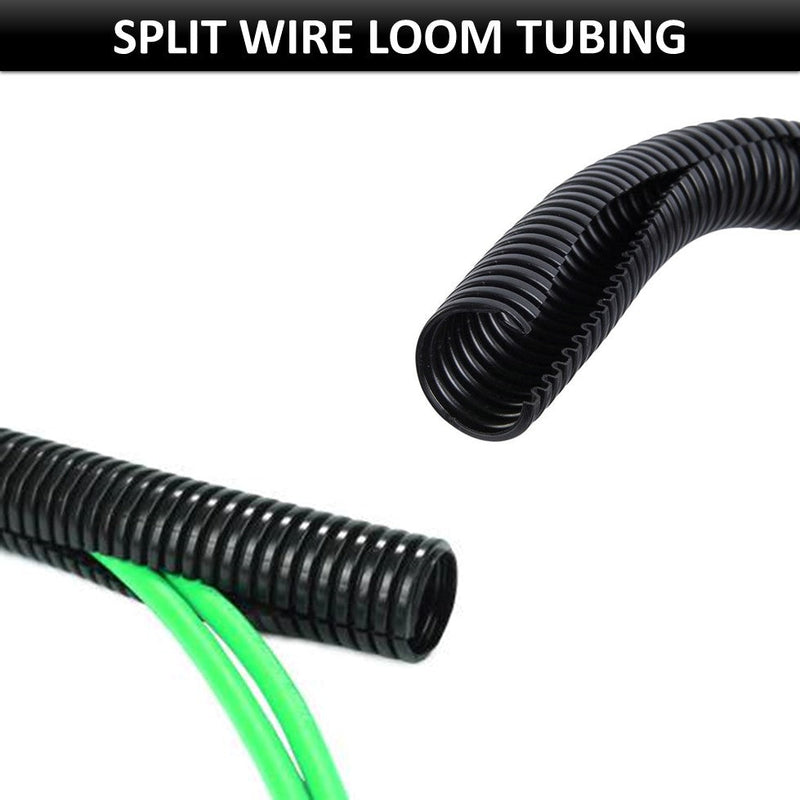

Kable Kontrol® Convoluted Split Wire Loom Tubing is an affordable cable organizer and cable protector that is made of durable polyethylene convoluted material. The Wire loom is perfect for organizing cables and hoses by identifying specific runs into color-coded bundles that will help keep your electronic equipment in order and will prevent equipment failure or fire hazards. Wire loom comes slit down the middle which offers easy installation; just open the tubing along the slit and insert the wires. It is also highly flexible, resistant to gas and chemicals, and secures your wires, cables or even small hoses.

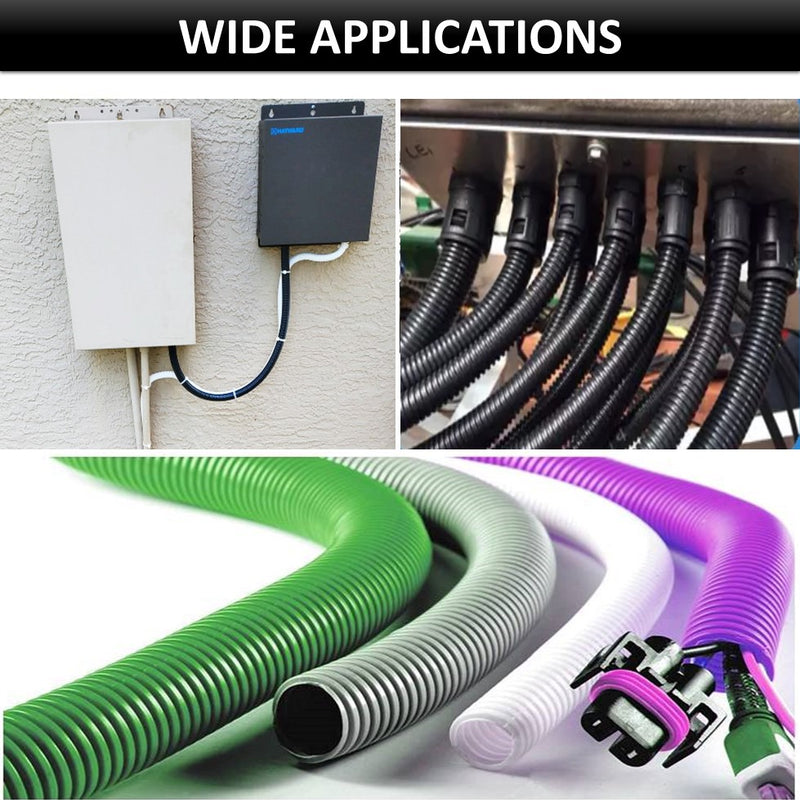

Split wire loom tubing is resistant to auto fluids and chemicals with an operating temperature range of -40ºF to 200F (-40ºC to +93ºC). Color wire loom is suitable for use in many industries, such as automotive, computer/electronics, farm/agricultural, marine, recreation vehicles, telecommunications, construction, and specialty markets.

Compliance with European Union's Directive 2015/863/EU (RoHS 3)

REACH Compliance (EU Regulation EC 1907/2006)

NAFTA Certified

CATALOG

CHEMICAL RESISTANCE

ONLINE RETAILERS

Technical Specifications & Test Data

Nominal Internal Diameter  Dimension "A" Inside Diameter Dimension "B" Outside Diameter Dimension "C" Wall Thickness
Min Max Min Max
1/4" (6 mm) 0.237” (6.02 mm) 0.266” (6.76 mm) 0.372” (9.45 mm) 0.400” (10.16 mm) 0.005” (0.12 mm)
3/8" (9 mm) 0.341” (8.66 mm) 0.380” (9.65 mm) 0.496” (12.59 mm) 0.526” (13.36 mm) 0.005” (0.12 mm)
1/2" (13 mm) 0.471” (11.97 mm) 0.515” (13.07 mm) 0.645” (16.39 mm) 0.681” (17.31 mm) 0.005” (0.12 mm)
5/8" (16 mm) 0.603” (15.32 mm) 0.639” (16.23 mm) 0.802” (20.36 nmm) 0.837” (21.26 mm) 0.005” (0.12 mm)
3/4” (19 mm) 0.707” (17.96 mm) 0.759” (19.28 mm) 0.950” (24.13 mm) .989” (25.12 mm) 0.005” (0.12 mm)
1" (23 mm) 0.897” (22.78 mm) 0.949” (24.10 mm) 1.077 (27.36 mm) 1.109 (28.17 mm) 0.006” (0.15 mm)
1-1/4" (30 mm) 1.199” (30.45 mm) 1.257” (31.93 mm) 1.446” (36.73 mm) 1.500” (38.10 mm) 0.006” (0.15 mm)
1-1/2" (40 mm) 1.566” (39.78 mm) 1.647” (41.83 mm) 1.867” (47.42 mm) 1.947” (49.45 mm) 0.006” (0.15 mm)
2" (51 mm) 1.969” (50.01 mm) 2.038” (51.77 mm) 2.285” (58.04 mm) 2.388” (60.66 mm) 0.011” (0.028 mm)
2-1/2" (64 mm) 2.447” (62.15 mm) 2.516” (63.9 mm) 2.771” (70.39 mm) 2.874” (73.01 mm) 0.011” (0.028 mm)
3-1/2" (89 mm) 3.481” (88.41 mm) 3.559” (90.41 mm) 3.81” (97 mm) 3.937” (100 mm) 0.011” (0.028 mm)
Performance Enhancers
Flame Retardant No
UV Inhibitor No
Heat Stabilizer No
Performance Characteristics
Flexibility Excellent
Abrasion Resistance Good
Chemical Resistance Good                 See Chemical Resistant Report: CR-013
Recommended Operating Upper Temperature +200°F (93°C)
Recommended Operating Lower Temperature -40°F (-40°C)
Typical Physical Properties Test Method Value Units
Specific Gravity/Density ASTM D792 0.924 -
