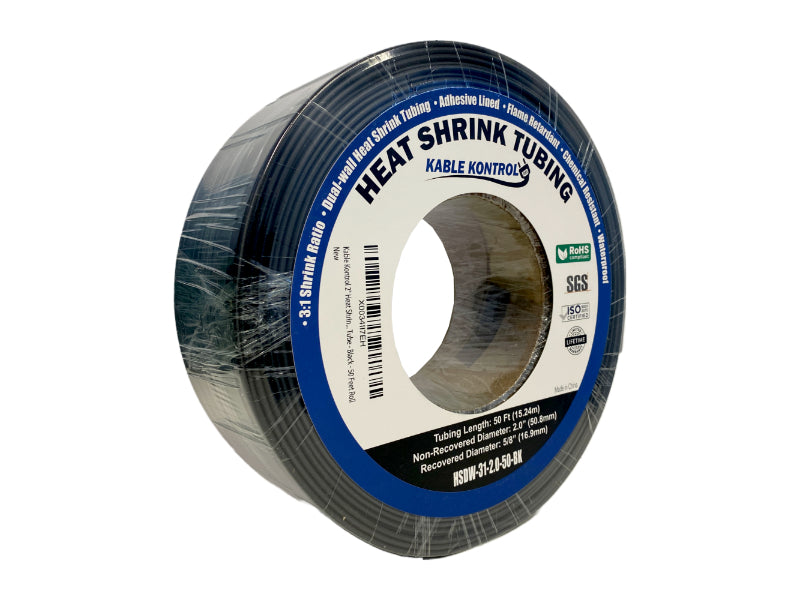

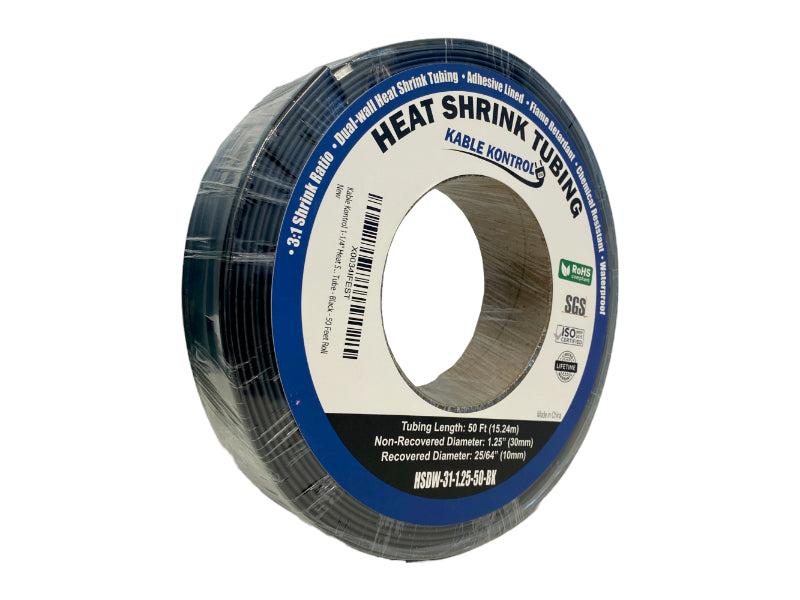

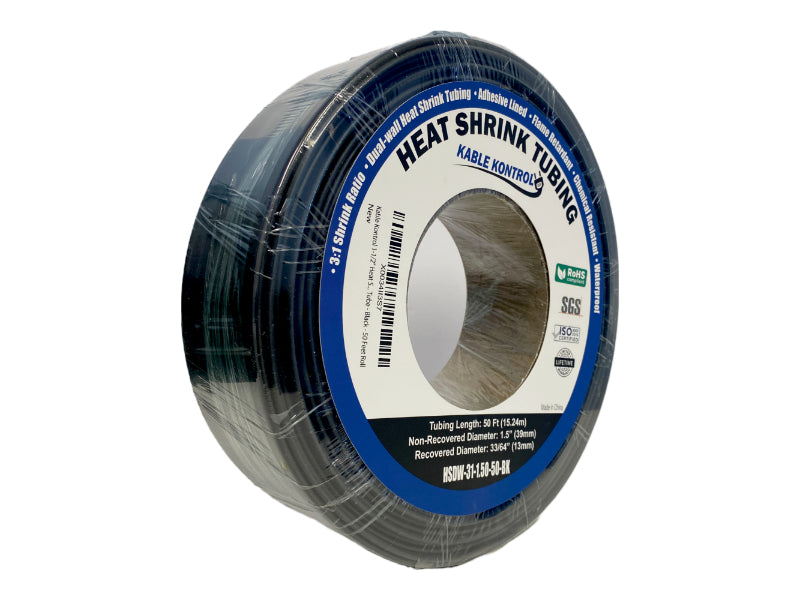

3:1 Adhesive Lined Dual Wall Heat Shrink Tubing - 50 Foot Spool

SKU
  • Length: 50 Feet Long
  • Good sealing of irregular shapes

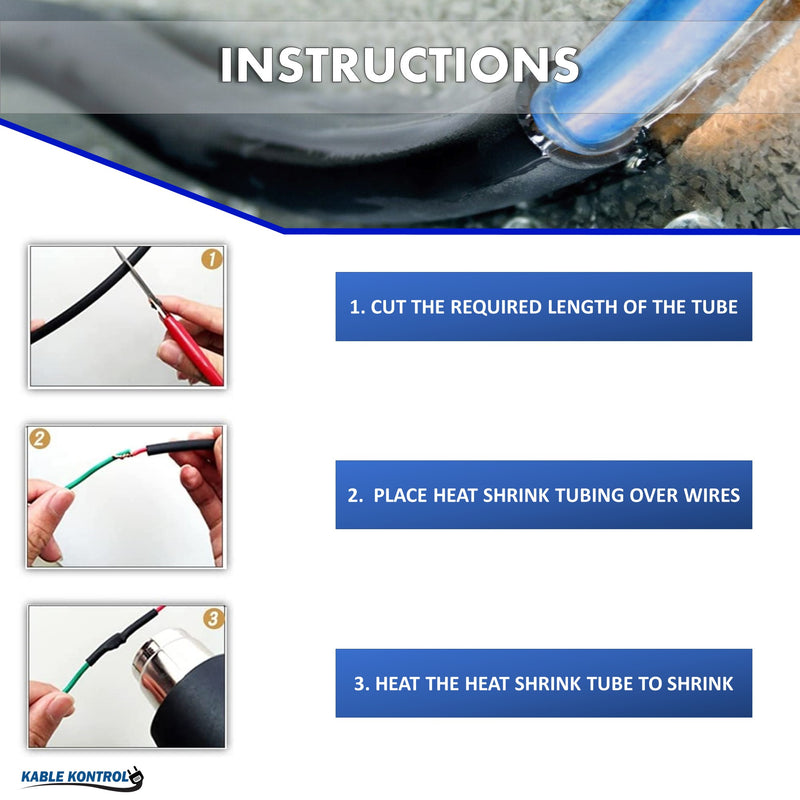

  • Easy To Cut and Install
  • Waterproof and moisture protection
  • Adhesive Will Form Water Tight Seal When Cooled

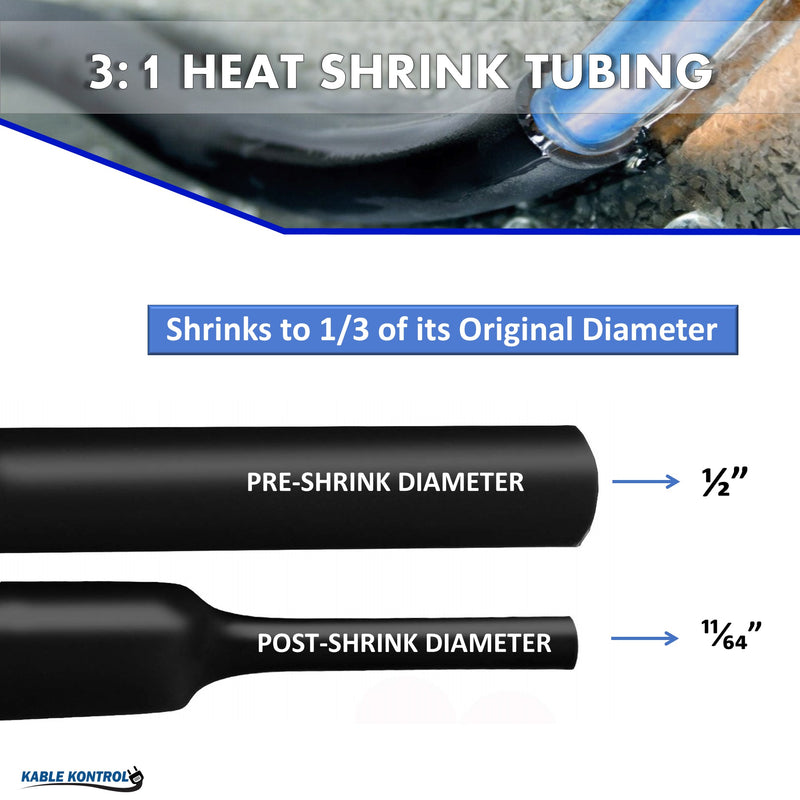

  • 3:1 shrink ratio (shrinks to 1/3 its original diameter)
  • Operating temperature: -55°C -125°C
  • High Resistance to Chemicals & Oils
  • ROHS Complaint

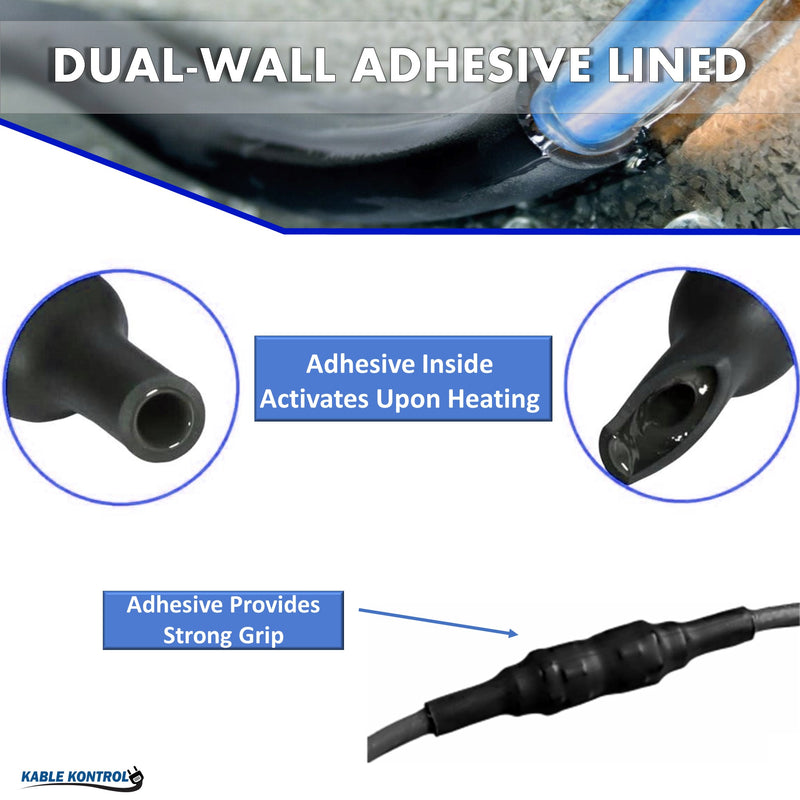

Dual wall (adhesive lined) 3:1 heat shrink tubing is made from a specially formulated, cross-linked polyolefin that is co-extruded with a meltable adhesive sealant. It offers excellent electrical, chemical and physical properties. This tough, flexible, flame retardant tubing can be used for electrical insulation, wire bundling, lightweight harnessing, and wire strain relief in a variety of home, commercial, industrial and military applications. When heated and the tubing begins to shrink, the inner adhesive layer begins to melt and flow (similar to hot melt glue). When the tubing has shrunk and cooled, the inner layer forms an adhesion layer between the tubing and the wire or component, providing a protective water-tight seal. It is an excellent way to terminate the ends of your Braided Sleeving, creating a tight, professional finish. The flame retardant jacket of 3:1 heat shrink tubing is in compliance with RoHS, the European directive on the Restriction of Hazardous Substances.

Please Note: Diameters For Heat Shrink Tubing Are Measured as ROUND TUBE, NOT FLAT.

RoHS Compliant

ISO Certified

Technical Specifications

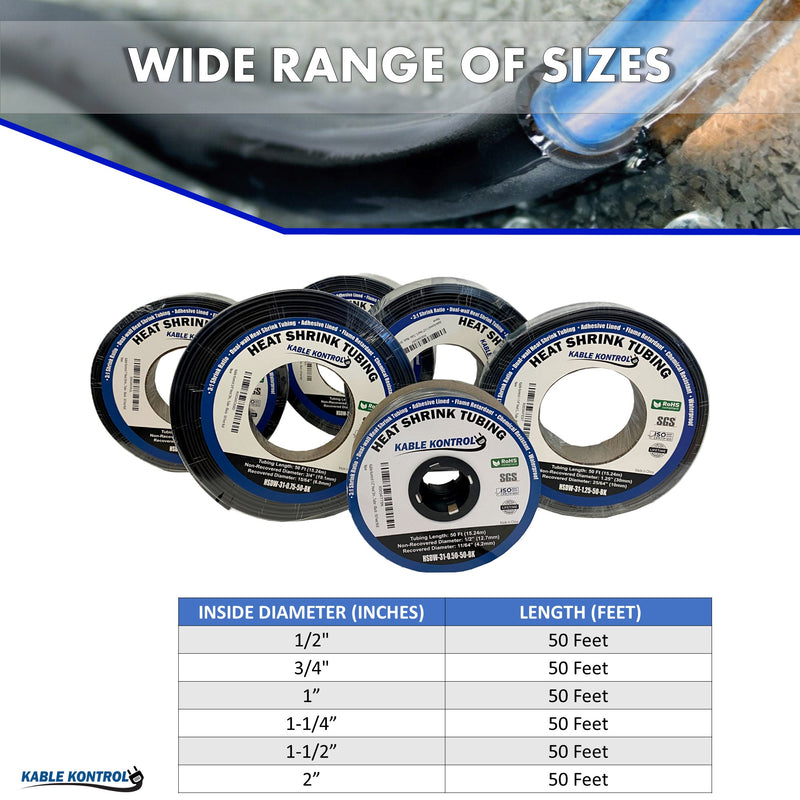

Nominal Size



Expanded

Recovered

Inside Diameter

Inside Diameter

in

mm

in

mm

1/2"

0.500

12.7

0.195

4.95

3/4"

0.750

19.1

0.313

7.95

1"

1

25.4

0.400

10.2

1-1/4"

1.25

30

0.393

10.0

1-1/2”

1.570

39.9

0.510

13.0

2"

2.0

50.8

0.665

16.9
