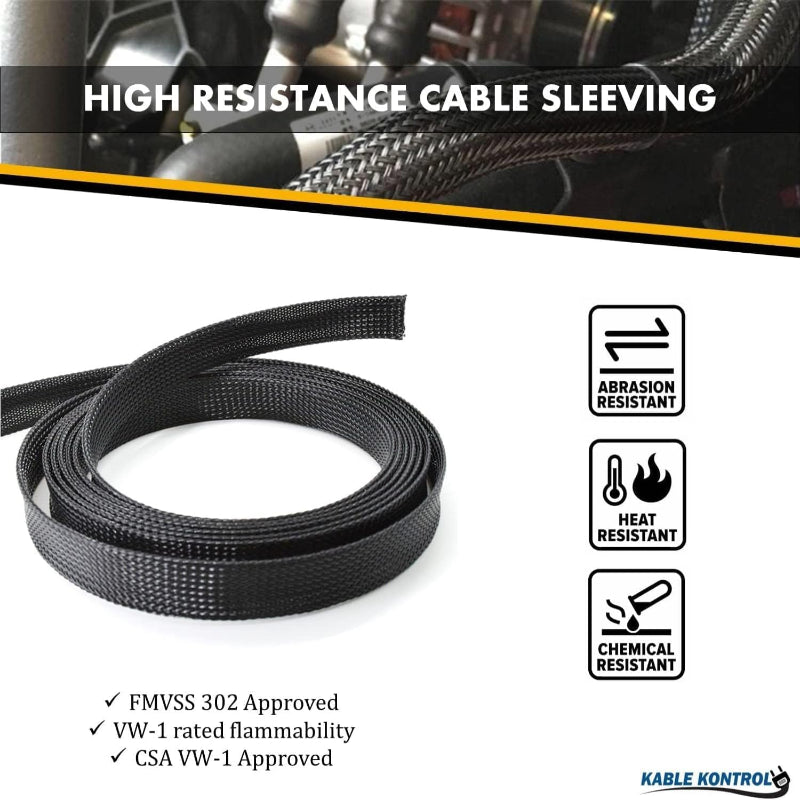

Flame Retardant Expandable PET Braided Cable Sleeving - No Tracer

SKU FRFW013-25
Original price $16.70 - Original price $562.50
Original price
$16.70
$16.70 - $562.50
Current price $16.70
Request a quote
  • CSA VW-1 Approved
  • FMVSS 302 Approved
  • VW-1 rated flammability
  • UL Temperature Approved
  • Material: Polyethylene Terephthalate (PET)
  • High Quality & Easy To Install
  • Resists Gasoline, chemicals & Cleaning Solvents
  • Operating temperature: -94°F to 257°F (-70°C to 125°C)
  • Expands Up to 150% of Initial Diameter
  • Cut & Abrasion Resistant
  • High expansion ratio
  • Excellent mechanical abrasion resistance
  • Offers a high expansion ratio and excellent mechanical abrasion and cut resistance.
  • All Custom Cut Lengths 25' Are NON-CANCELLABLE & NON-REFUNDABLE

Kable Kontrol® Flame Retardant Expandable PET Braided Cable Sleeving, the ultimate solution for protecting and organizing your cables. Crafted & designed with high-quality, halogen-free, and flame retardant polyester, this cable sleeving ensures maximum safety and durability. With its VW-1 rated flammability and FMVSS 302 approval, you can trust it to resist gasoline, chemicals, and cleaning solvents, making it perfect for a variety of applications.

CSA VW-1 Approved: Meets strict flammability standards for enhanced safety. FMVSS 302 Approved: Complies with automotive flammability regulations, making it ideal for automotive wiring. UL Temperature Approved: Reliable performance across a wide temperature range from -94°F to 257°F (-70°C to 125°C). High Expansion Ratio: Expands up to 150% of its initial diameter, accommodating a wide range of cable sizes for easy installation. Resists Gasoline, Chemicals & Cleaning Solvents: Suitable for industrial and automotive applications where exposure to harsh chemicals and solvents is common. Economically Priced:Offers high-quality protection at an affordable price, without compromising on performance.

Versatile Applications:

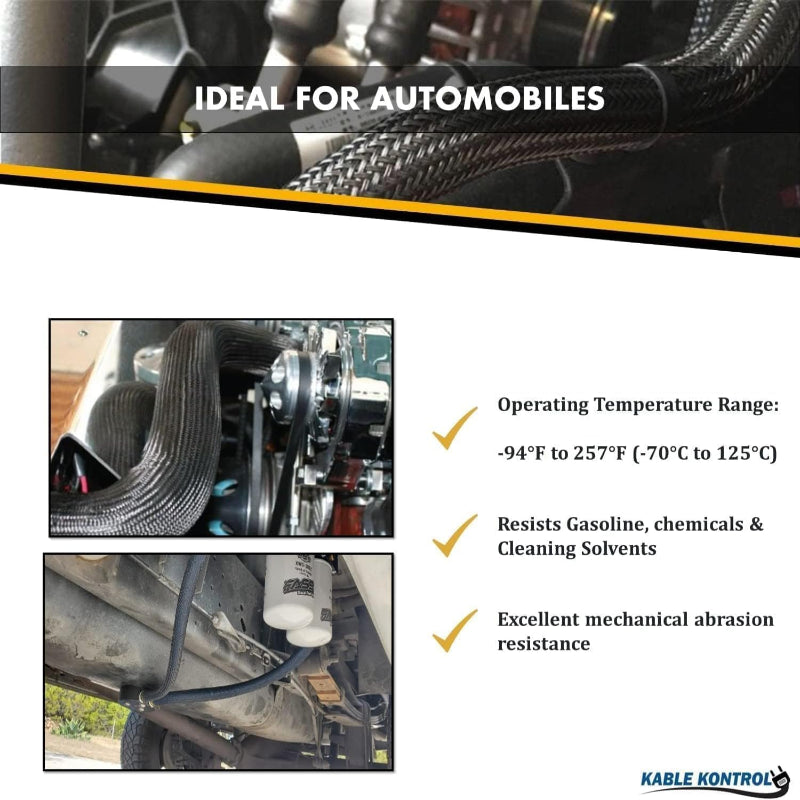

  • Automotive Wiring: Safeguard wiring harnesses in vehicles with resistance to gasoline and chemicals.
  • Industrial Equipment: Protect cables in machinery and equipment exposed to harsh chemicals and solvents.
  • Marine Applications: Ensure cable protection in marine environments with resistance to saltwater and fuel.
  • Aerospace: Reliable cable protection in aircraft and spacecraft with high temperature and chemical resistance.
  • Home Electronics: Manage and protect cables in home theaters, gaming systems, and computer setups.

FMVSS 302 Approved

VW-1 rated flammability

UL Temperature Approved

CSA VW-1 Approved

Technical Specifications

Nominal
 Size
Product
 Part #
Expansion Range Spool Put-Ups
Min. Max. Bulk Shop
1/8" FRFW013 3/32" 1/4" 1,000' 225'
1/4" FRFW025 1/8" 7/16" 1,000' 200'
3/8" FRFW038 3/16” 5/8” 500' 150'
1/2" FRFW050 1/4” 3/4" 500' 100’
5/8" FRFW058 3/8” 1” 250’ 100’
3/4" FRFW075 1/2” 1 1/4” 250’ 100’
1" FRFW100 5/8” 1 5/8” 250’ 100’
1 1/4" FRFW125 3/4”  1 3/4” 250’ 100’
1 1/2" FRFW150 1” 2 1/2” 200’ 100’
1 3/4" FRFW175 1 1/4” 2 3/4” 200’ 100’
2" FRFW200 1 3/4” 3 1/2” 200’ 50’
2 1/2" FR FW250 1 3/4” 4 1/2” 200’ 50’
3" FRFW300 2 1/2” 4 3/4” 100’ 50’

Testing Data

Physical Properties
Monofilament Thickness (ASTM D-204) .010
Flammability Rating UL-94
Recommended Cutting Hot Knife
Colors 28
Wall Thickness .025
Tensile Strength - Yarn (ASTM D-2265) lbs. 7.5
Abrasion Resistance Medium
Specific Gravity 1.38
Moisture Absorption % (ASTM D-570) .1 - .2



Chemical Resistance

1=No Effect   2=Little Effect   3=Affected   4=More Affected   5=Severely Affected
Aromatic Solvents
2
Alipahtic Solvents
1
Chlorinated Solvents 3
Weak Bases 1
Strong Bases 2
Salt Water (O-S-1926) 1
Hydraulic Fluid (MIL-H-5606) 1
Lubricating Oil (MIL-A-8243) 1
De-Icing Fluid (MIL-A-8243) 1
Strong Acids 3
Strong Oxidants 2
Esters/Ketones 1
UV Light 1
Petroleum 1
Fungus (ASTM G-21) 1
Salts 1



Hard Vacuum Data (ASTM E-595 at 10-5 torr)
TML .19
CVCM .00
WVR .16
Smoke D-Max (ASTM E-662) 56
Outgassing Medium
Oxygen Index (ASTM D-2863) 21



Operating Temperatures
Minimum Continuous -94°F/-70°C
Maximum Continuous (MIL-I-23053) 257°F/125°C
Melt (ASTM D-2117) 482°F/250°C



Other Information
Halogen Free Yes
RoHS Yes
SVHC None
UL/CSA Yes
