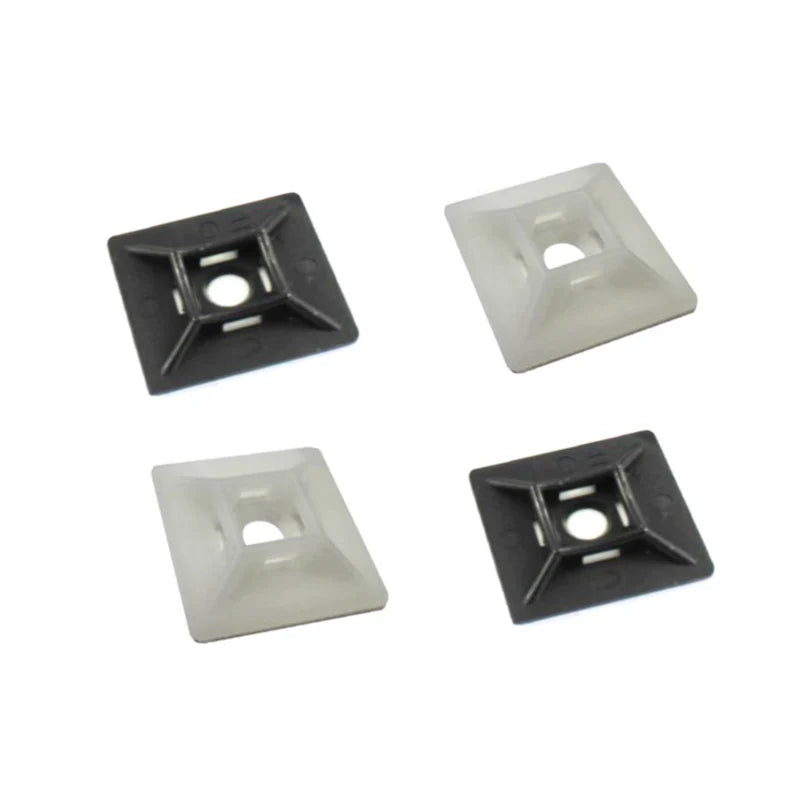

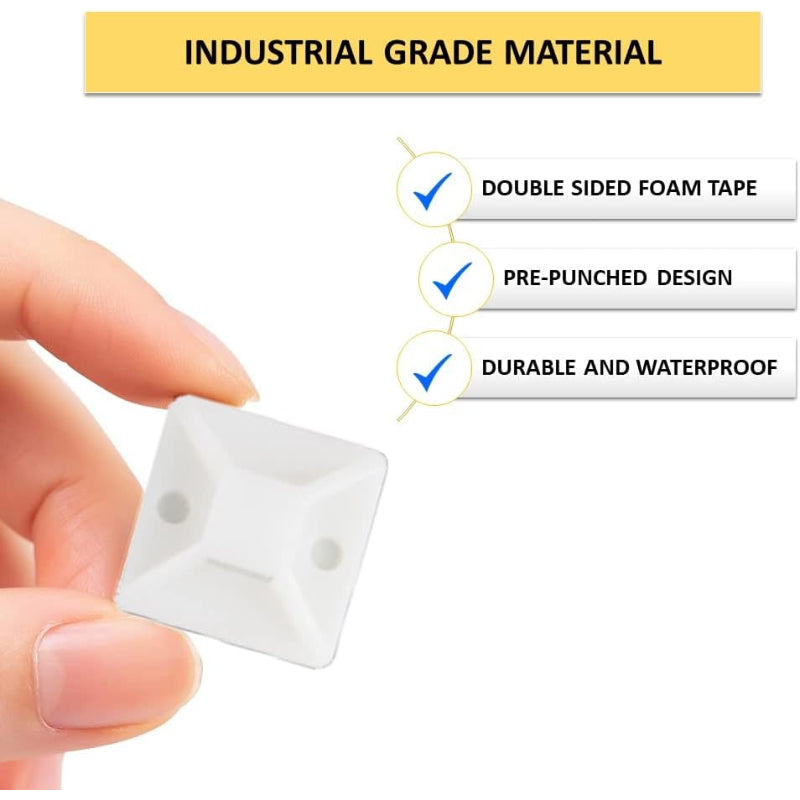

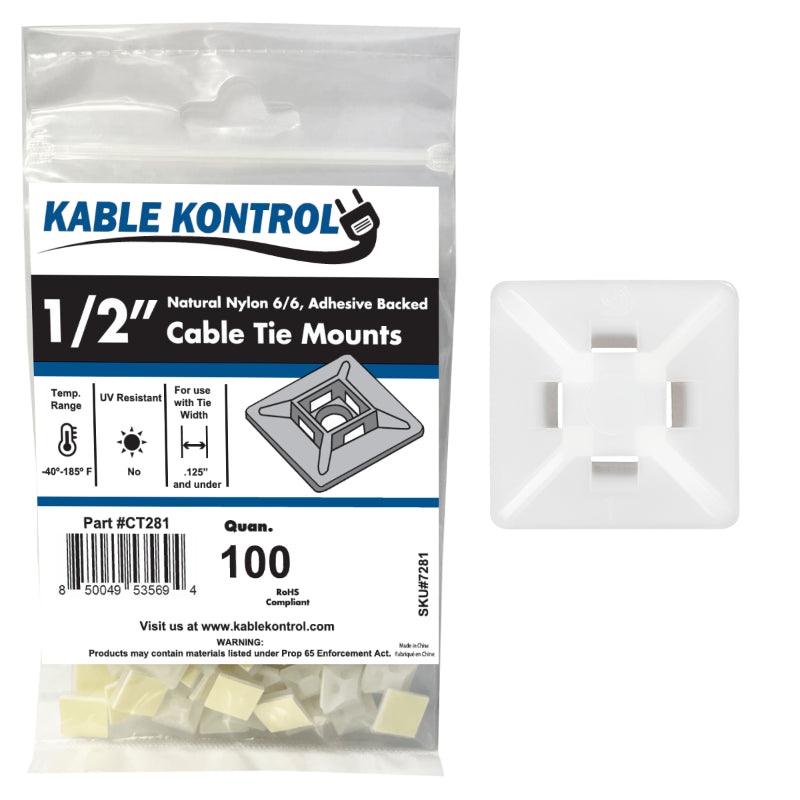

Adhesive backed nylon zip tie mounts are designed to be used together with cable ties. adhesive zip tie mounts are an easy solution to secure your wire bundles or other items to any surface you desire. Adhesive backed cable tie mounts secure to the surface by the adhesive tape on the back after the backing paper is peeled off. May be secured using a self-tapping screw inserted into a special hole.
Material Specifications
MATERIAL | MIN OPERATING TEMPERATURE |
MAX OPERATING TEMPERATURE |
UV RESISTANCE |
UL FLAME RATING |

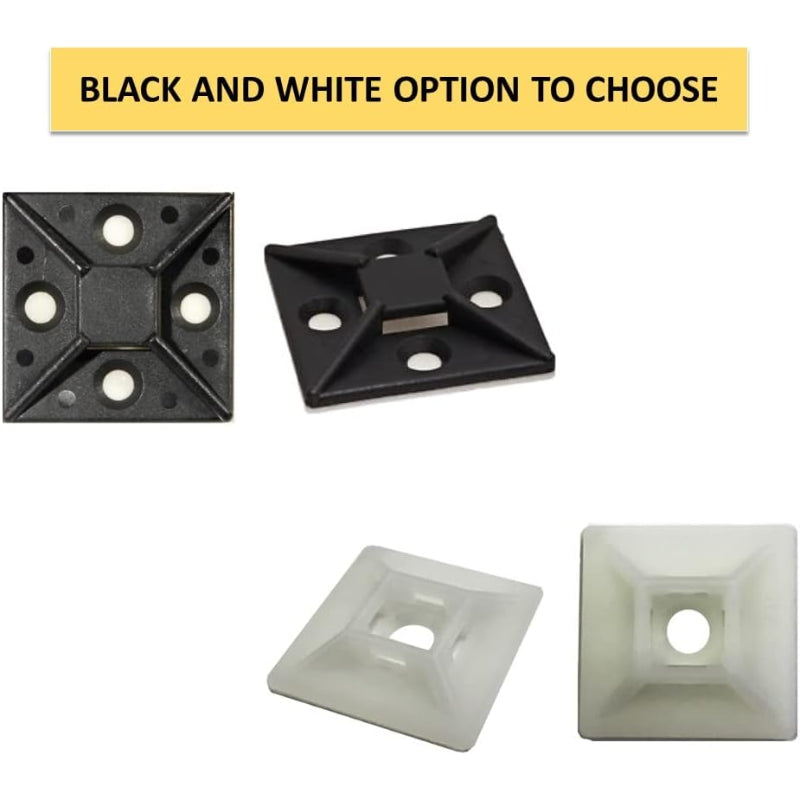

Nylon 6/6- Natural |
-40ºF -40ºC |
185ºF 85ºC |
None | 94V-2 |
Nylon 6/6- UV Stabilized Black |
-40ºF -40ºC |
185ºF 85ºC |
Very High | 94V-2 |
Technical Specifications
Item # | A (Inches) | B (Inches) | C (Inches) | D (Inches) |
H (Inches)
|
UL Listed
|
|

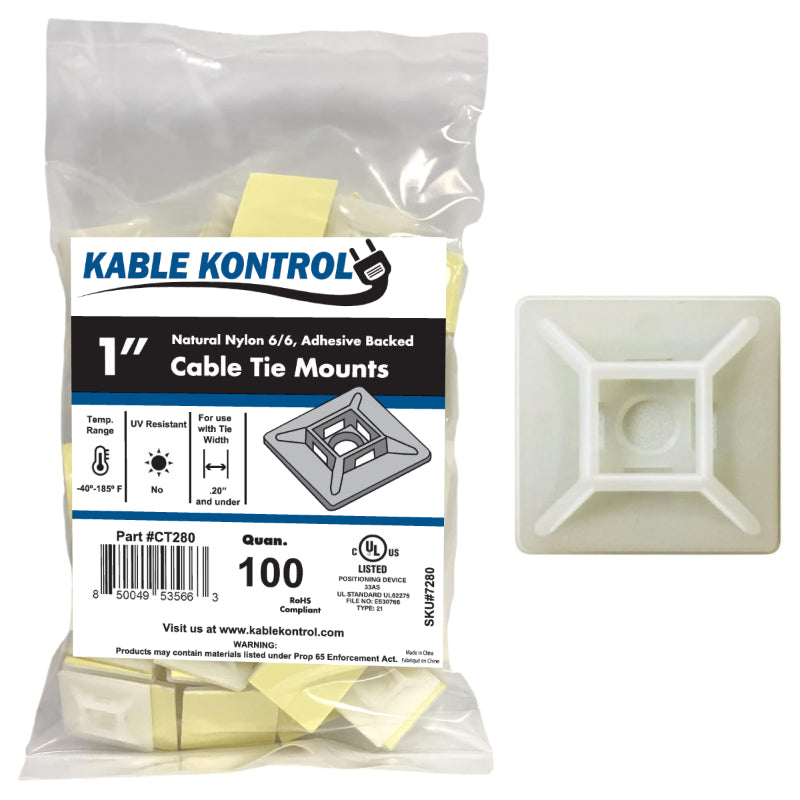

CT280/CT280-B | 1.06 | 0.2 | 1.06 | 0.2 |
0.2
|
File No. E530766 | |
CT281 | 0.5 | 0.126 | 0.5 | - | 0.126 | - | |

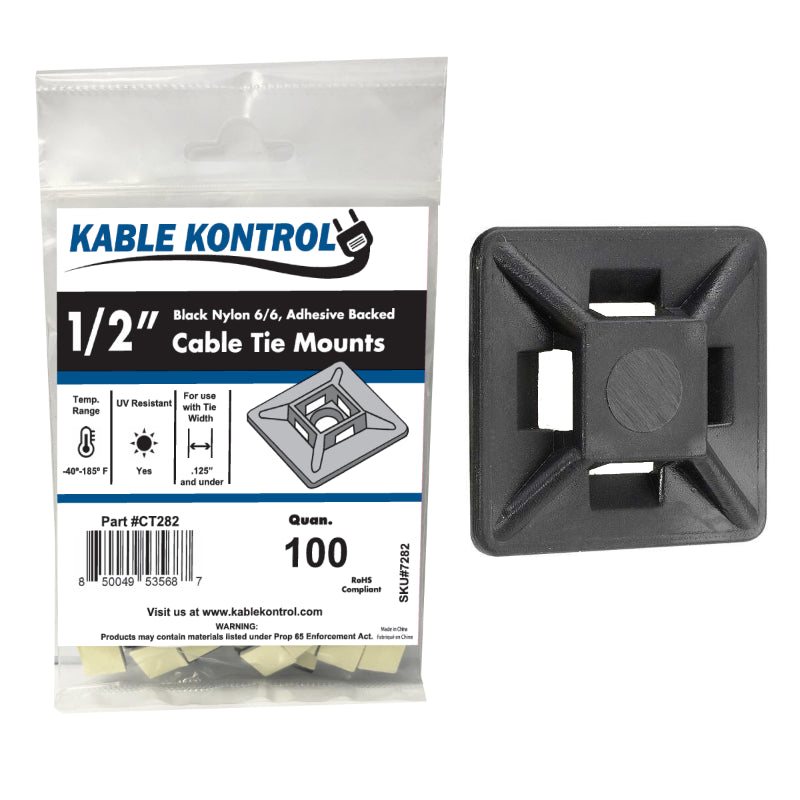

CT282 | 0.5 | 0.126 | 0.5 | - | 0.126 | - | |

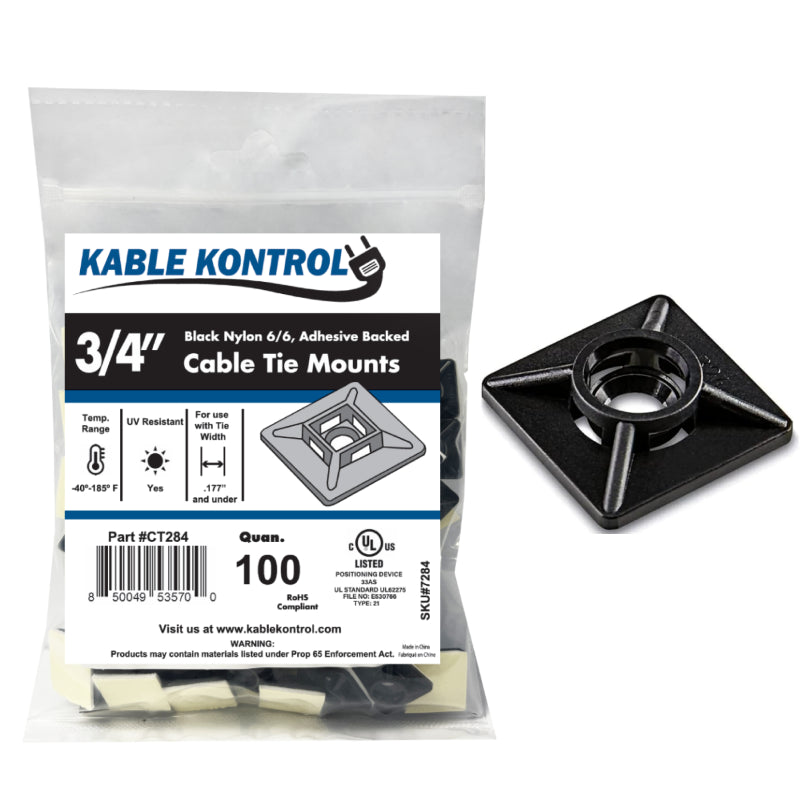

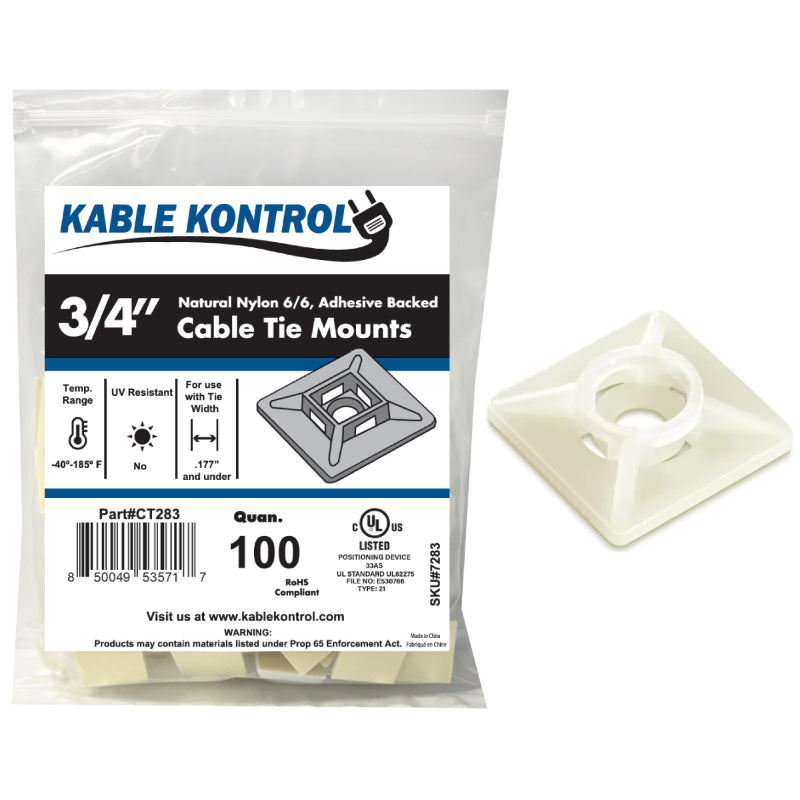

CT283/CT284 | 0.75 | 0.177 | 0.75 | 0.126 | 0.154 | File No. E530766 |
|

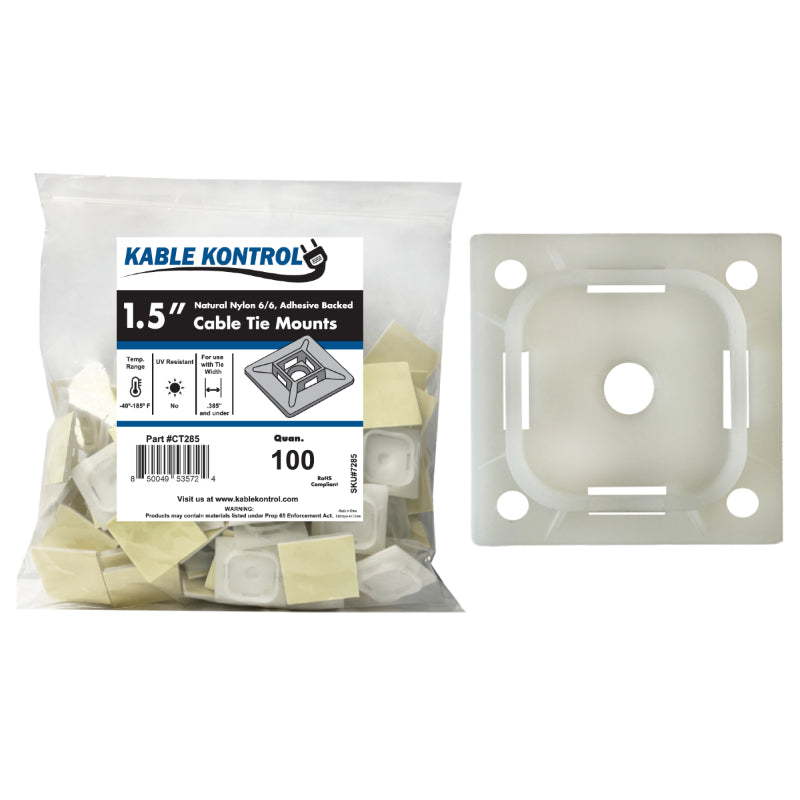

CT285/CT286 | 1.5 | 0.394 | 1.5 | 0.197 | 0.2295 | - |
Item # | A (mm) | B (mm) | C (mm) | D (mm) |
H (mm)
|
UL Listed | |
CT280/CT280-B | 27.70 | 5.30 | 27.70 | 5.00 |
5.70
|
File No. E530766 |
|
CT281 | 12.70 | 3.20 | 12.70 | - | 3.20 | - | |
CT282 | 12.70 | 3.20 | 12.70 | - | 3.20 | - | |
CT283/CT284 | 19.05 | 4.50 | 19.05 | 3.20 | 3.90 | File No. E530766 |
|
CT285/CT286 | 38.10 | 10.00 | 38.10 | 5.00 | 7.50 | - |
Kable Kontrol® Nylon cable ties are the ideal high-quality, durable, and cost-effective option for all indoor and outdoor zip tie applications where your cable ties will be used for bundling wires or securing objects.If you are looking for cable ties that provide greater resistance to the sun look no further than our UV Black cable ties which provide greater resistance to weather exposure than their counterparts in Colored and Natural nylon cable ties, making them a cost-effective and durable method for securing any bundle or item outside. Our zip ties are available from 4" to 60" in length as well as numerous tensile breaking strengths. If you need a cable tie that will provide even more durability than any nylon cable tie look no further our Stainless Steel cable ties are virtually incorruptible by outdoor exposure. These ties are ideal for bundling wires or hoses in demanding applications where corrosion, vibration, general weathering, radiation, and temperature extremes are a concern. Commonly used in industries such as mining, pulping, and chemical plants. Made with Flame retardant Grade 304 stainless steel. These metal cable ties are designed with an easy-to-install, low-profile, self-locking ball bearing head. They are non-toxic and flame retardant with an operating temperature range of minus 112 degrees Fahrenheit to 1000 degrees Fahrenheit. Steel zip ties can handle a lot of heat! Stainless Steel Cable Ties can be installed indoors, outdoors, or underground if necessary.
