Non Insulated Ring Wire Terminal - Electrical Connector
Non Insulated Ring Wire Terminal - Electrical Connector
Non Insulated Ring Wire Terminal - Electrical Connector
Non Insulated Ring Wire Terminal - Electrical Connector
Non Insulated Ring Wire Terminal - Electrical Connector
Non Insulated Ring Wire Terminal - Electrical Connector
Non Insulated Ring Wire Terminal - Electrical Connector
Non Insulated Ring Wire Terminal - Electrical Connector
Non Insulated Ring Wire Terminal - Electrical Connector
Non Insulated Ring Wire Terminal - Electrical Connector
Non Insulated Ring Wire Terminal - Electrical Connector
Non Insulated Ring Wire Terminal - Electrical Connector
Non Insulated Ring Wire Terminal - Electrical Connector
Non Insulated Ring Wire Terminal - Electrical Connector
Non Insulated Ring Wire Terminal - Electrical Connector
Non Insulated Ring Wire Terminal - Electrical Connector

Non Insulated Ring Wire Terminal - Electrical Connector

SKU RTNI-2218-6

Login To See Discounted Pricing

$3.48 - $10.42
$3.48
$3.48 - $10.42
$3.48

Free Shipping for Order Above $99

Request a quote

Want to Sell Our Products. Click Here

  • Safety Certified: UL Listed (E545229) for trusted safety and compliance.
  • Pack Quantity – 100 Pcs
  • Affordable & Practical: Cost-effective solution for general wiring needs.

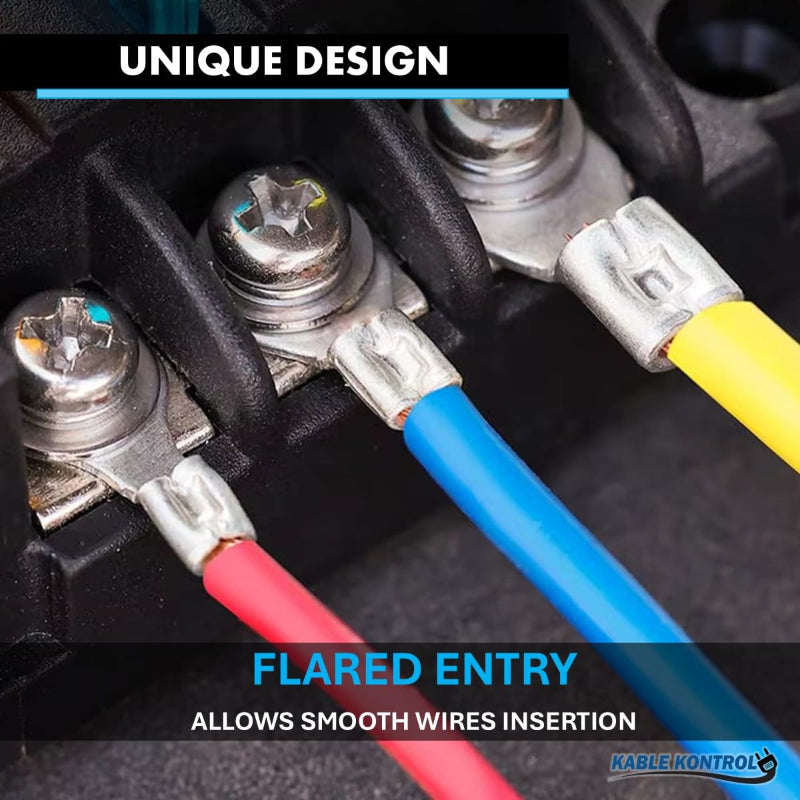

  • Secure Connections: Ring-shaped design attaches easily to screw or stud-type fittings.
  • Durable Build: High-quality copper with a tin-plated finish for corrosion resistance.

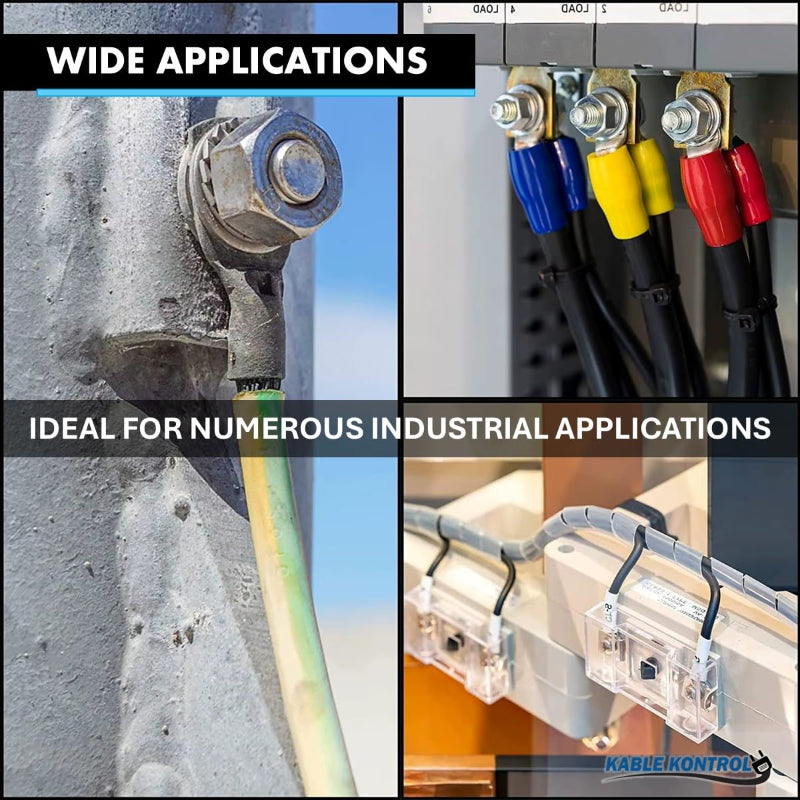

  • Versatile Applications: Ideal for automotive, marine, and general electrical installations.
  • High Performance: Supports up to 600 volts and temperatures up to 105°C (221°F).

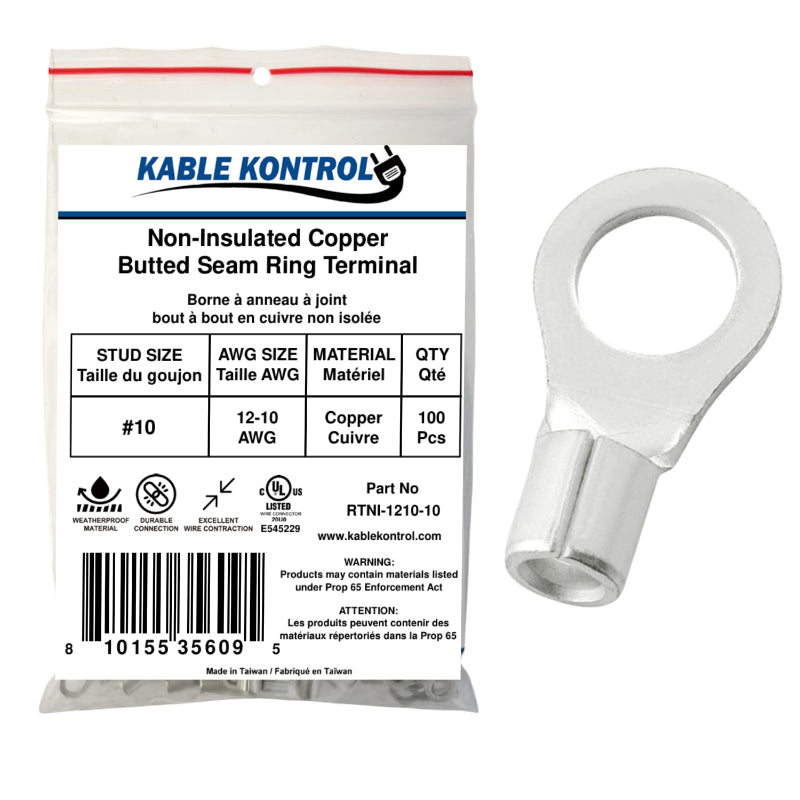

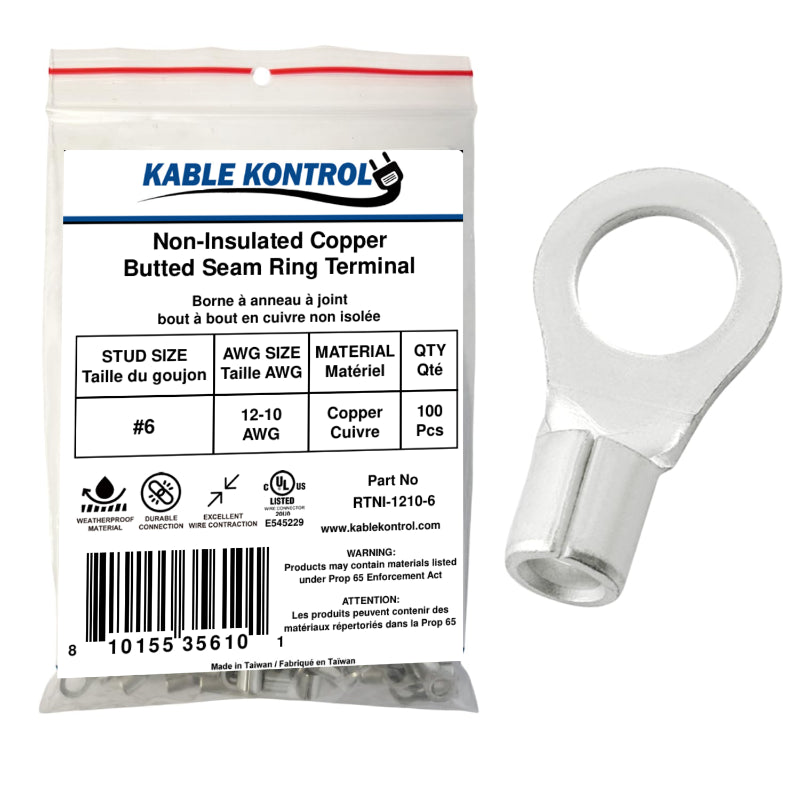

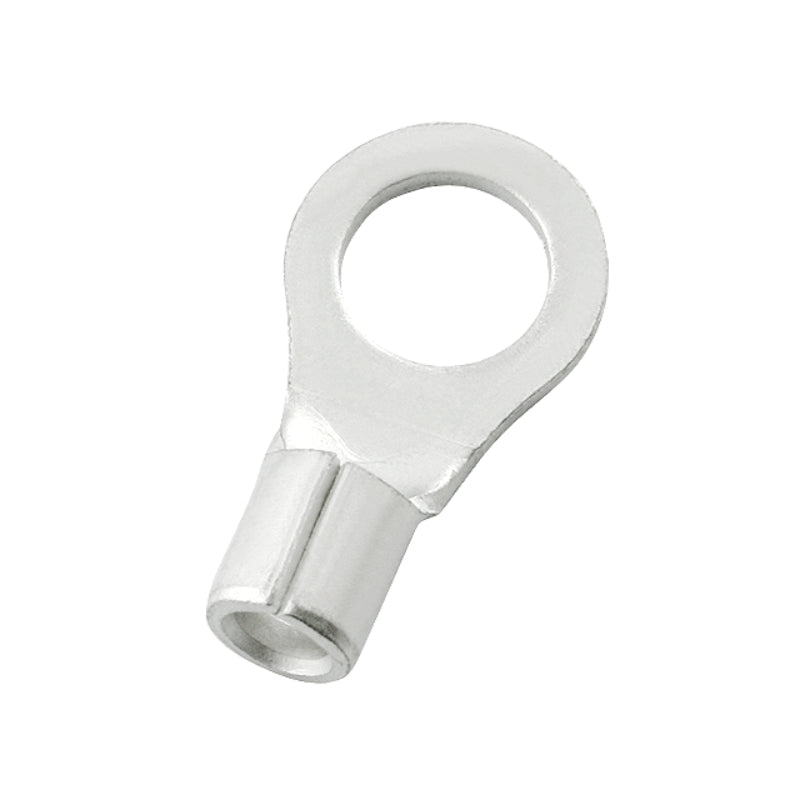

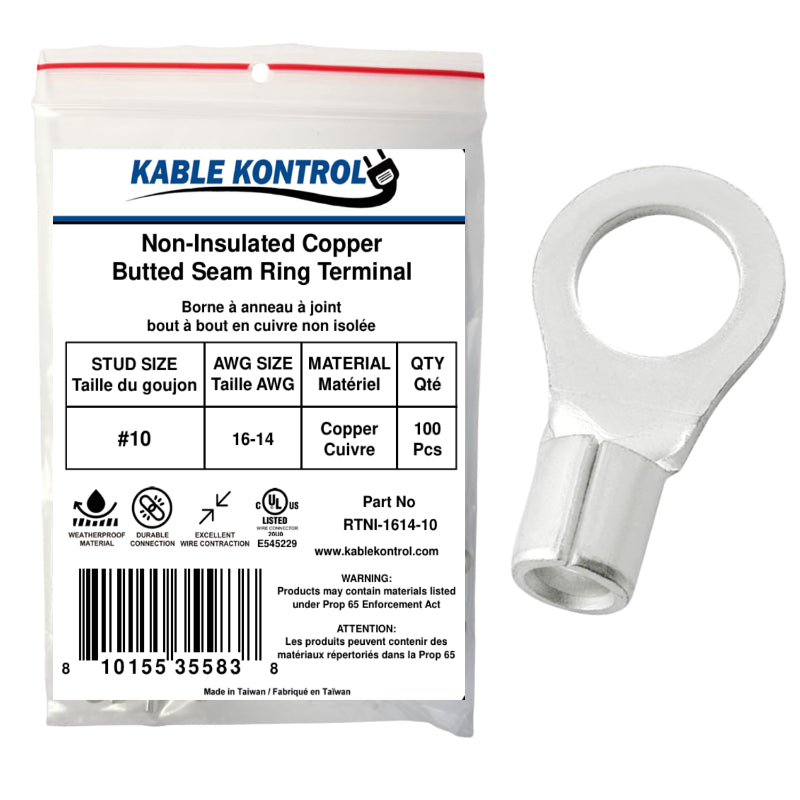

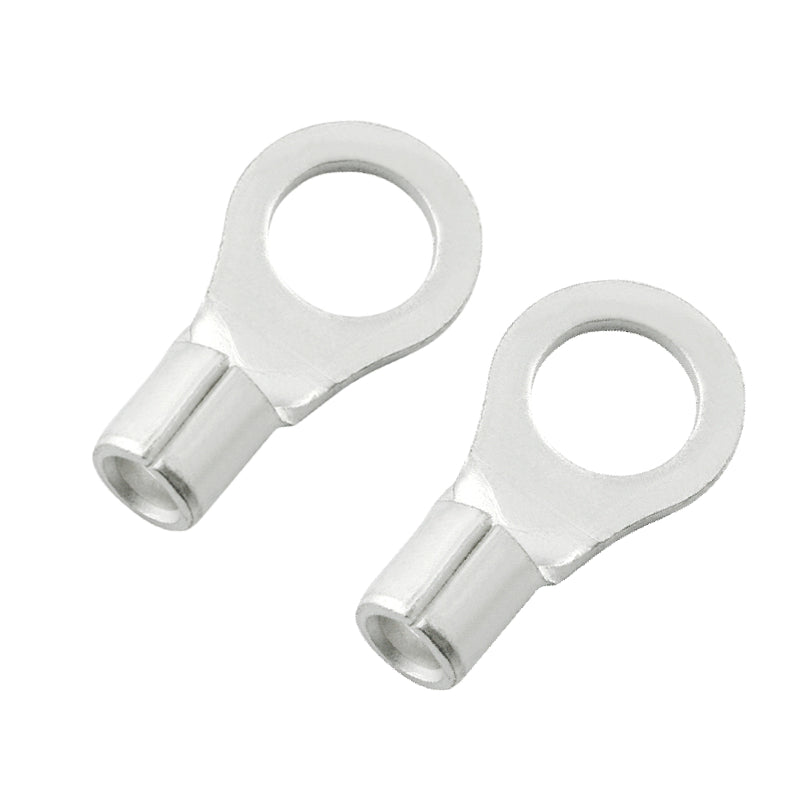

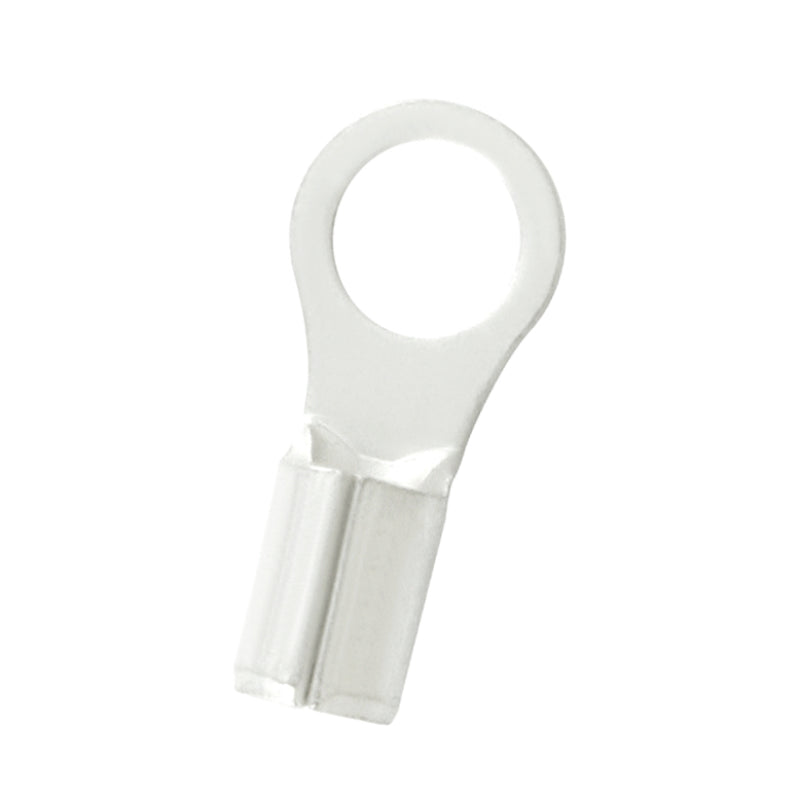

The Kable Kontrol® Ring Terminal Connector - Non Insulated is a budget-friendly and reliable choice for connecting, mating, or terminating single wires. Its practical ring-shaped design ensures a secure connection to screw or stud-type electrical applications, making it ideal for automotive, marine, and general electrical projects. Crafted from high-quality copper with a corrosion-resistant tin-plated finish, this ring terminal delivers excellent conductivity and long-lasting performance. It is perfect for situations where insulation or special performance features are not required, providing a simple yet effective solution for a wide range of wiring tasks. Built to handle up to 600 volts and withstand temperatures up to 105°C (221°F), this terminal is UL Listed (E545229) for safety and reliability. Choose this economical ring terminal to simplify your electrical connections while maintaining performance and compliance.

  • UL Listed (E545229)

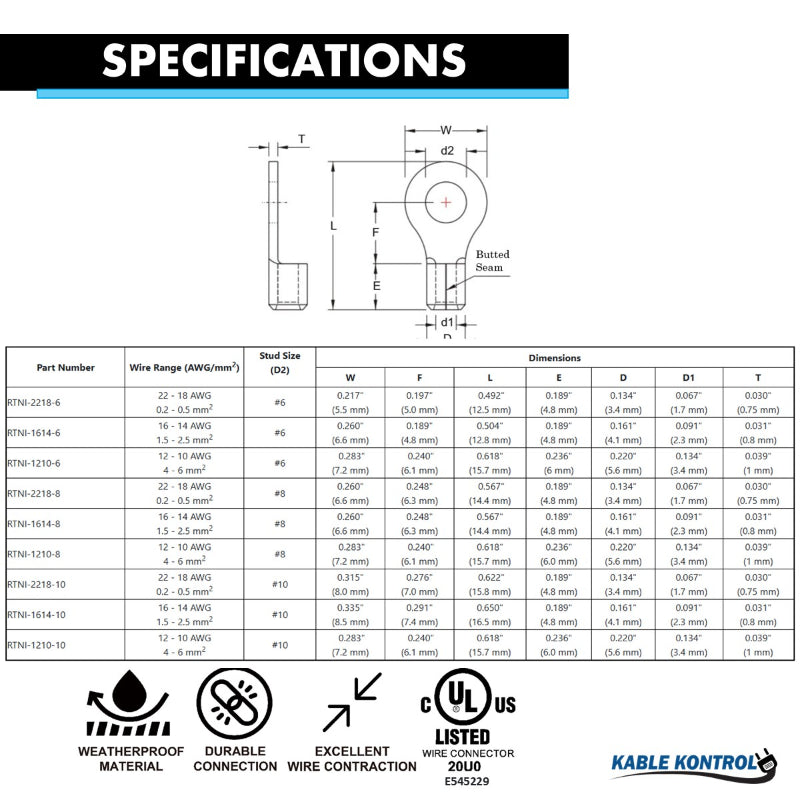

Technical Specifications

Part Number Wire Range (AWG/mm2)

Stud Size
(D2)

 Dimensions
W F L E D D1 T
RTNI-2218-6 22 - 18 AWG
0.2 - 0.5 mm2 		#6 0.217"
(5.5 mm)		 0.197"
(5.0 mm)		  0.492"
(12.5 mm)		 0.189"
(4.8 mm)		 0.134"
(3.4 mm)		 0.067"
(1.7 mm)		 0.030"
(0.75 mm)

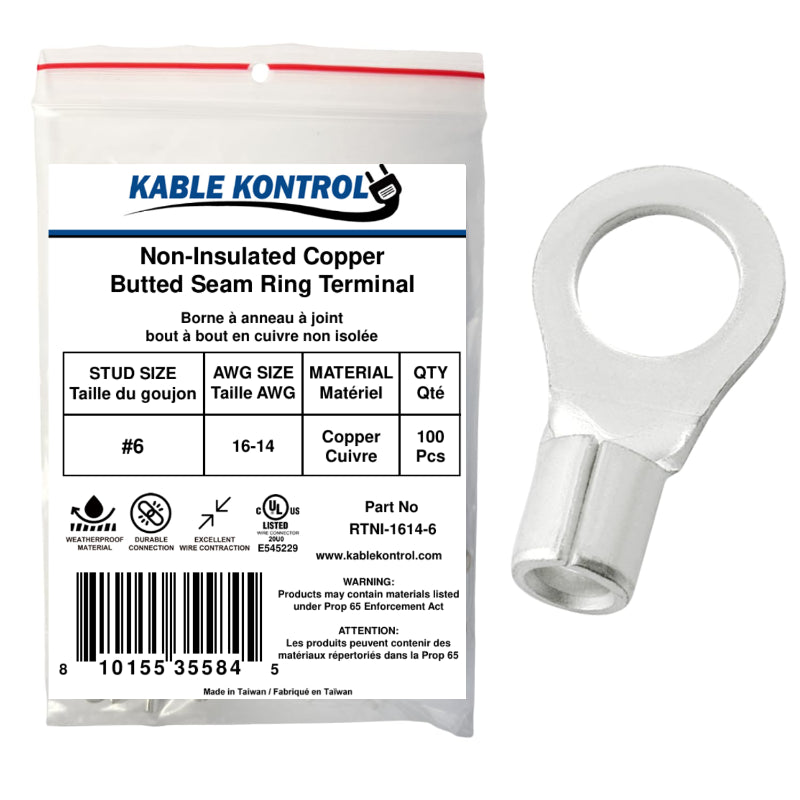

RTNI-1614-6 16 - 14 AWG
1.5 - 2.5 mm2 		#6 0.260"
(6.6 mm)		 0.189"
(4.8 mm)		 0.504"
(12.8 mm)		 0.189"
(4.8 mm)		 0.161"
(4.1 mm)		 0.091"
(2.3 mm)		 0.031"
(0.8 mm)
RTNI-1210-6 12 - 10 AWG
4 - 6 mm2 		#6  0.283"
(7.2 mm)		  0.240"
(6.1 mm)		 0.618"
(15.7 mm)		 0.236"
(6 mm)		 0.220"
(5.6 mm)		 0.134"
(3.4 mm)		 0.039"
(1 mm)

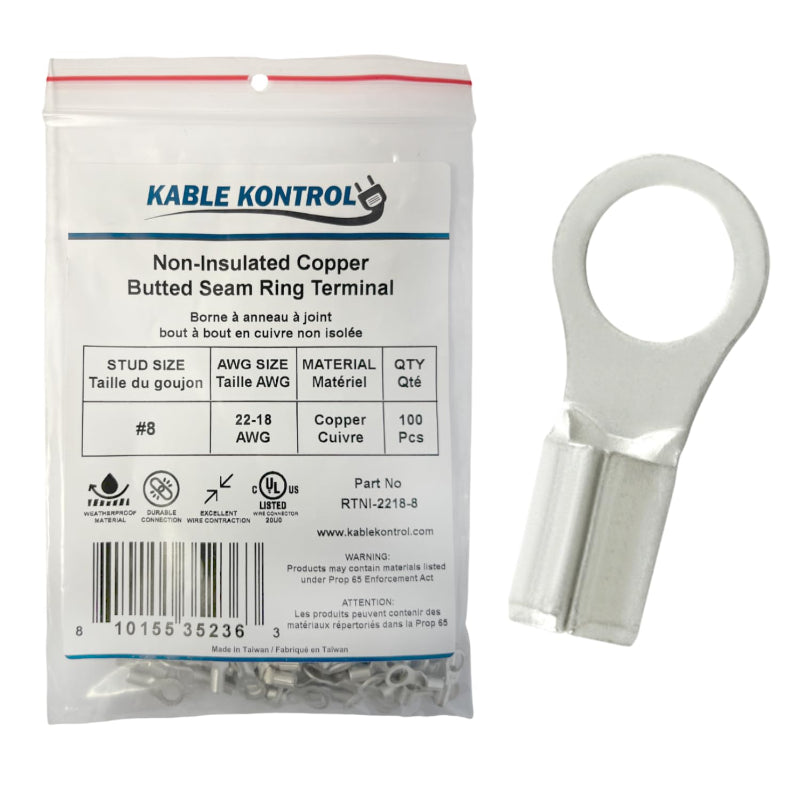

RTNI-2218-8 22 - 18 AWG
0.2 - 0.5 mm2 		#8 0.260"
(6.6 mm)		 0.248"
(6.3 mm)		  0.567"
(14.4 mm)		 0.189"
(4.8 mm)		 0.134"
(3.4 mm)		 0.067"
(1.7 mm)		 0.030"
(0.75 mm)

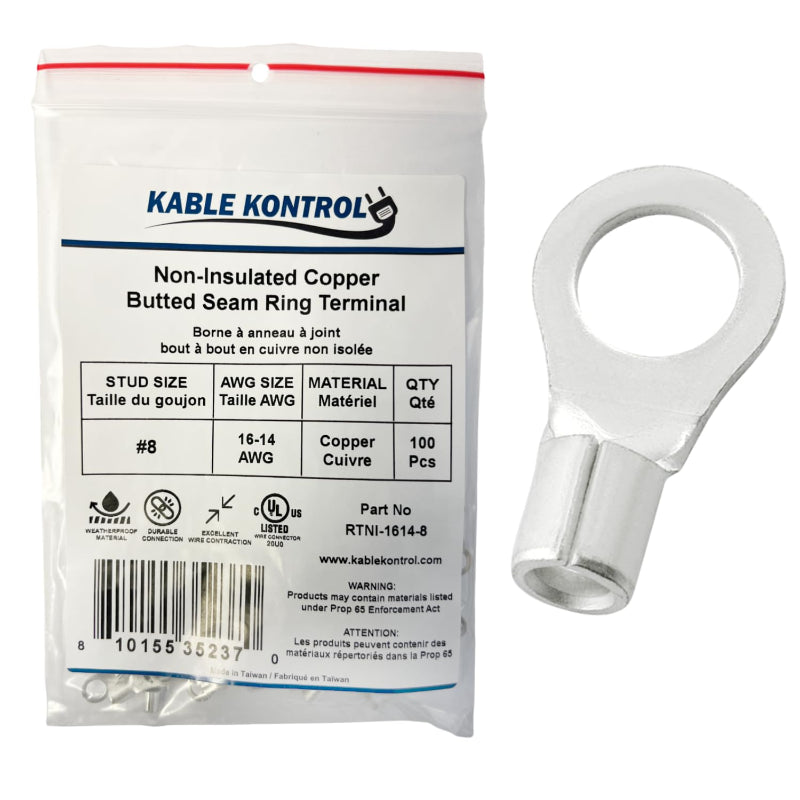

RTNI-1614-8 16 - 14 AWG
1.5 - 2.5 mm2 		#8 0.260"
(6.6 mm)		 0.248"
(6.3 mm)		 0.567"
(14.4 mm)		 0.189"
(4.8 mm)		 0.161"
(4.1 mm)		 0.091"
(2.3 mm)		 0.031"
(0.8 mm)
RTNI-1210-8 12 - 10 AWG
4 - 6 mm2 		#8  0.283"
(7.2 mm)		  0.240"
(6.1 mm)		 0.618"
(15.7 mm)		 0.236"
(6.0 mm)		 0.220"
(5.6 mm)		 0.134"
(3.4 mm)		 0.039"
(1 mm)

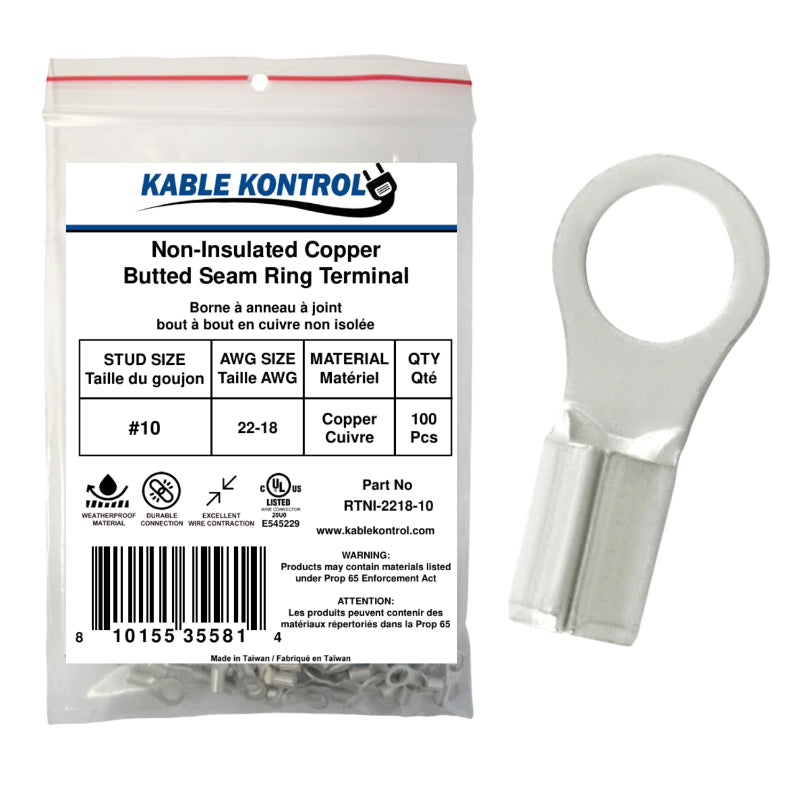

RTNI-2218-10 22 - 18 AWG
0.2 - 0.5 mm2 		#10 0.315"
(8.0 mm)		 0.276"
(7.0 mm)		  0.622"
(15.8 mm)		 0.189"
(4.8 mm)		 0.134"
(3.4 mm)		 0.067"
(1.7 mm)		 0.030"
(0.75 mm)
RTNI-1614-10 16 - 14 AWG
1.5 - 2.5 mm2 		#10 0.335"
(8.5 mm)		 0.291"
(7.4 mm)		 0.650"
(16.5 mm)		 0.189"
(4.8 mm)		 0.161"
(4.1 mm)		 0.091"
(2.3 mm)		 0.031"
(0.8 mm)
RTNI-1210-10 12 - 10 AWG
4 - 6 mm2 		#10  0.283"
(7.2 mm)		  0.240"
(6.1 mm)		 0.618"
(15.7 mm)		 0.236"
(6.0 mm)		 0.220"
(5.6 mm)		 0.134"
(3.4 mm)		 0.039"
(1 mm)
