UV Rated Split Loom

UV Rated Split Loom

  • MADE IN NORTH AMERICA

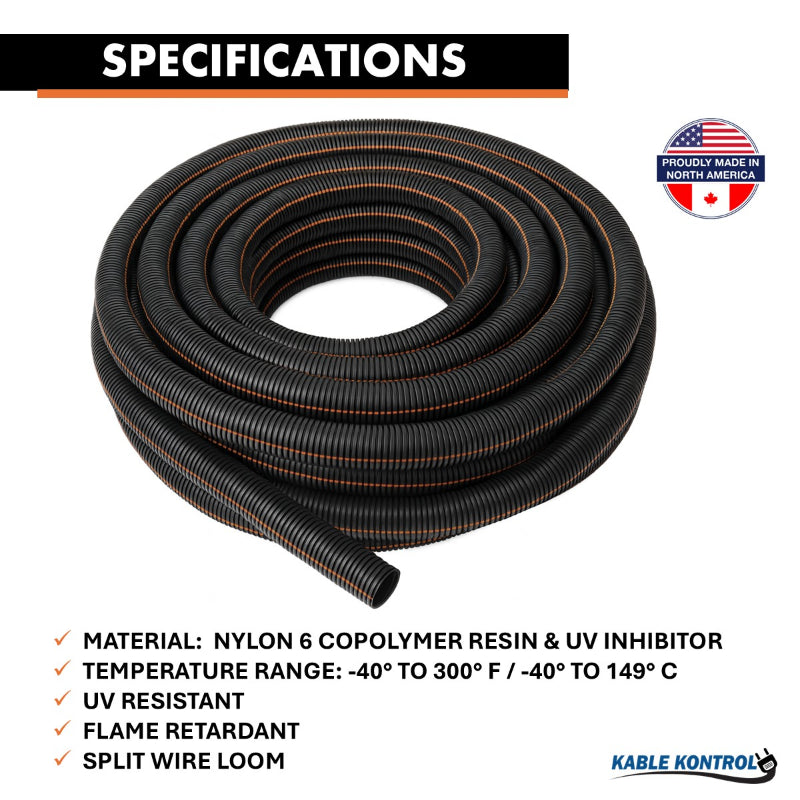

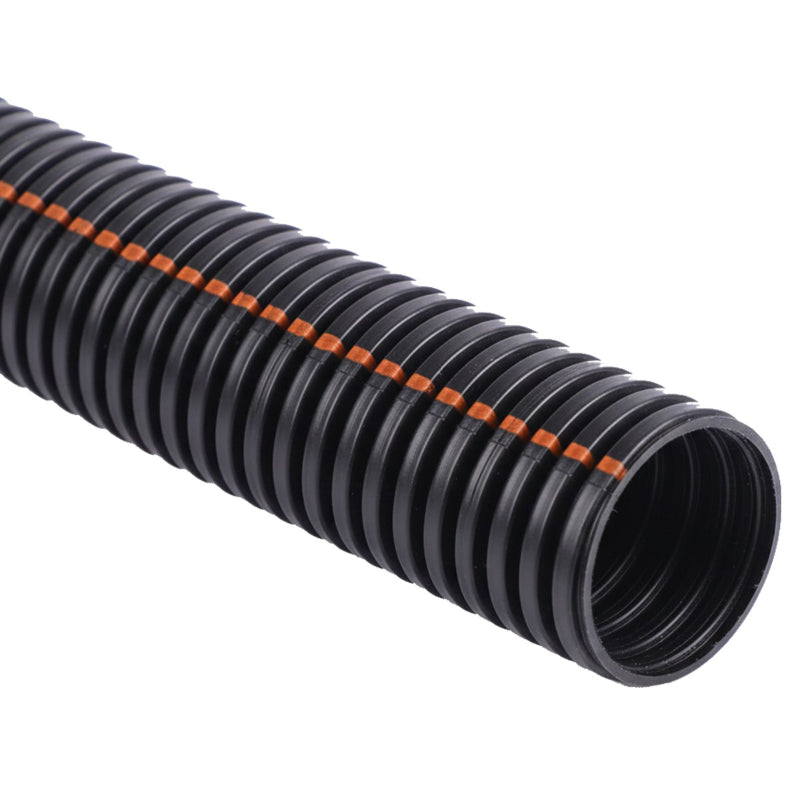

  • Flexible convoluted split tubing/conduit manufactured from a nylon 6 copolymer resin and UV Inhibitor.

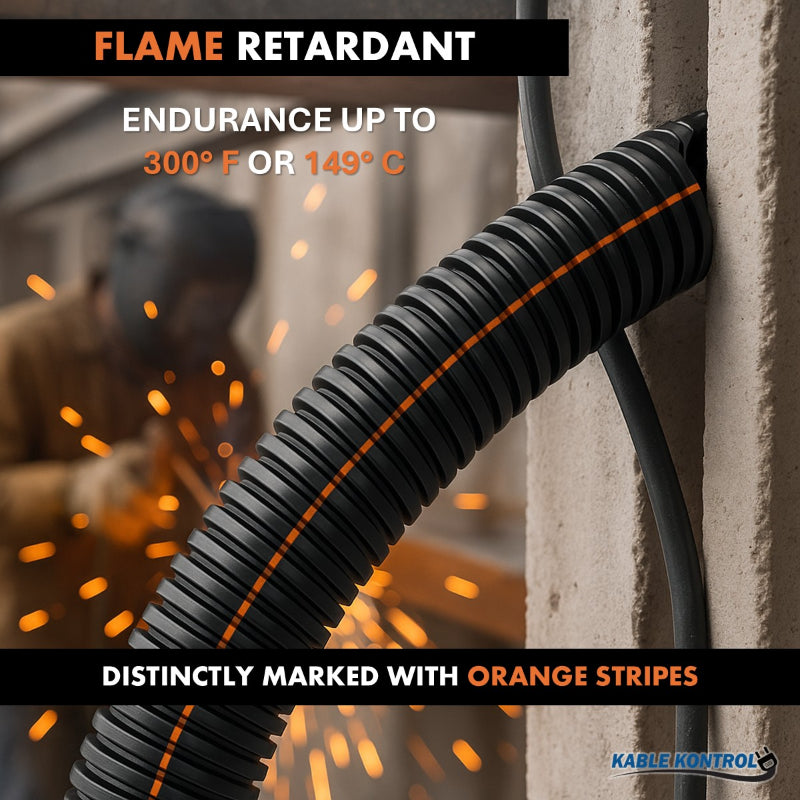

  • All UV resistant high-temperature split loom is distinctly marked with an orange stripe running the entire length.
  • Temperature range: -40° to 300° F, -40° to 149° C.

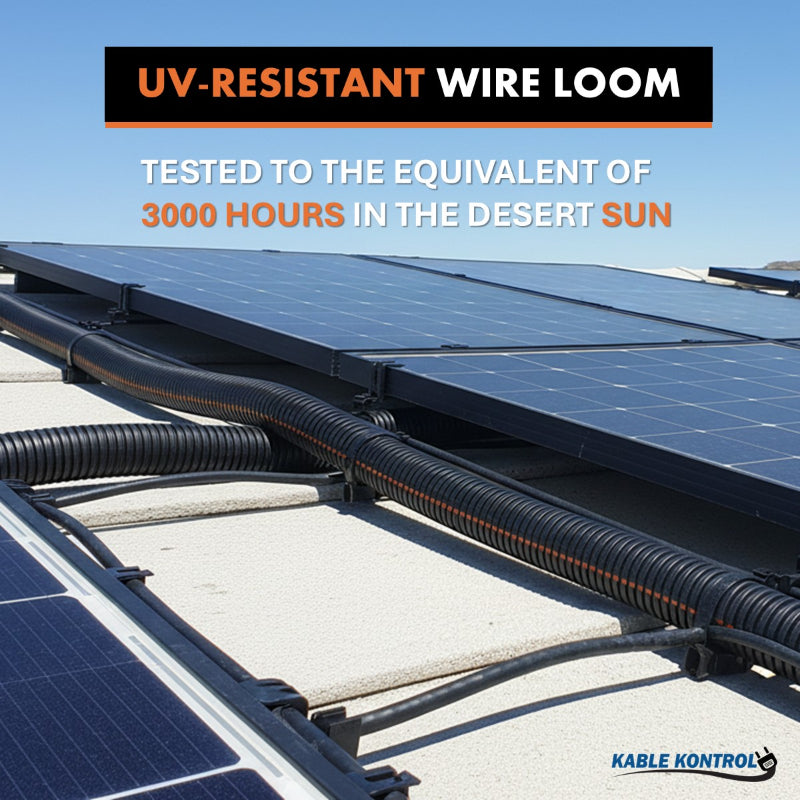

  • Tested to the equivalent of 3000 hours in the desert sun
  • UV inhibitor protects against discoloration and fading

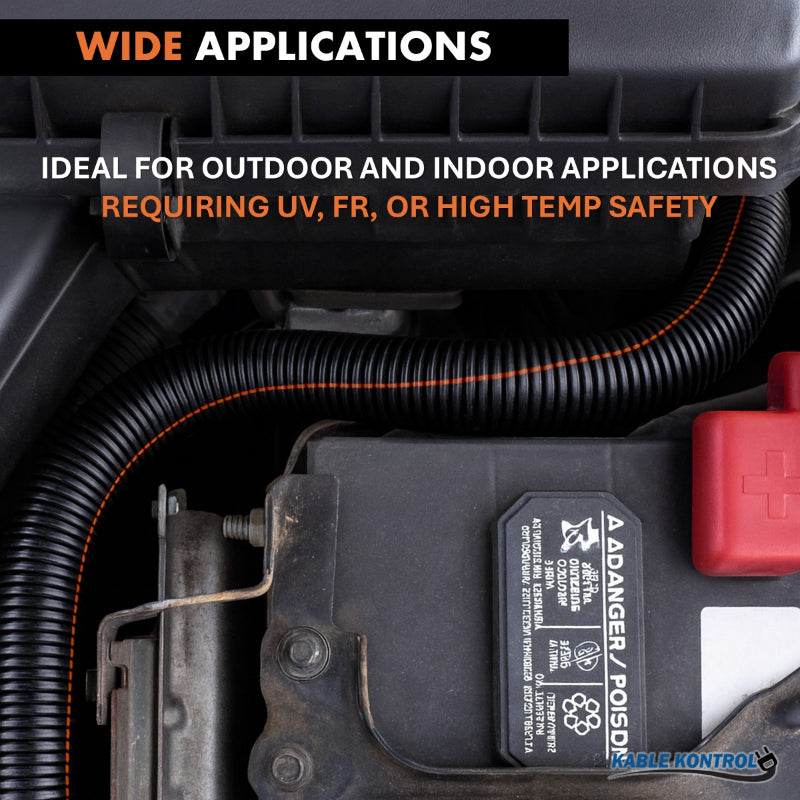

  • Can be used both indoors and outdoors, and also in sunlight
  • Compliant with the (RoHS), REACH Directive and the Conflict Minerals Initiative
  • Note: All Lengths Will Be Shipped as continuous lengths. Lengths are NON-SPLICED

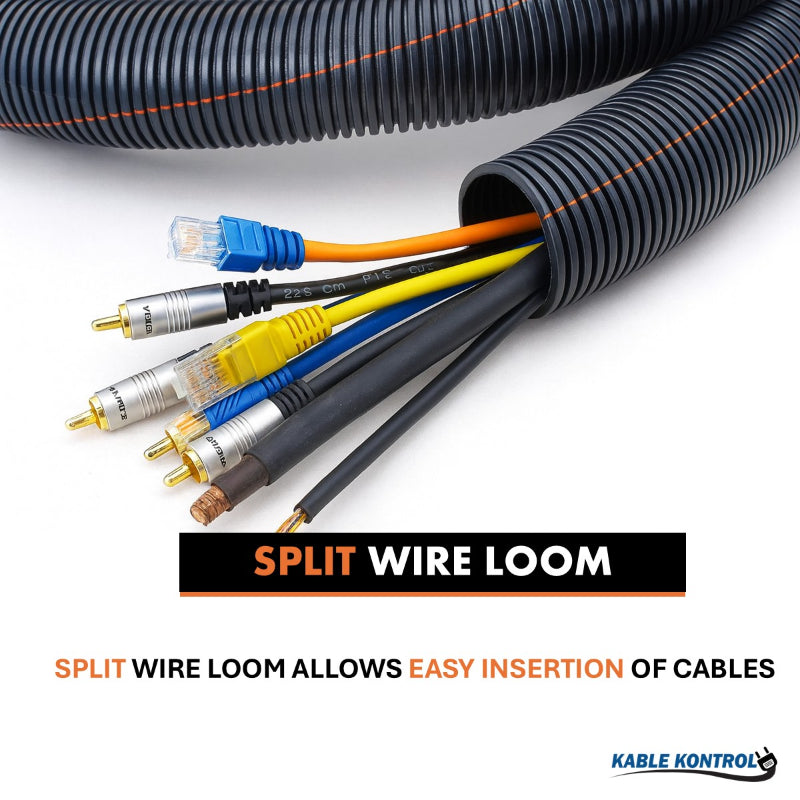

Kable Kontrol Split UV resistant Nylon wire loom tubing is a high-temperature cable sleeving with an added UV stabilizer that protects wires, and cables against abrasion or crushing, and has a heat resistance range up to 300° F. The material with UV stabilizer has been tested to the equivalent of 3000 hours in the desert sun. Flexible convoluted tubing / conduit manufactured from a nylon 6 co-polymer resin and UV Inhibitor. Nylon (NU) Conduit is black with an orange stripe.

Compliance with European Union's Directive 2015/863/EU (RoHS 3)

REACH Compliance (EU Regulation EC 1907/2006)

NAFTA Certified

CATALOGUE

CHEMICAL RESISTANCE

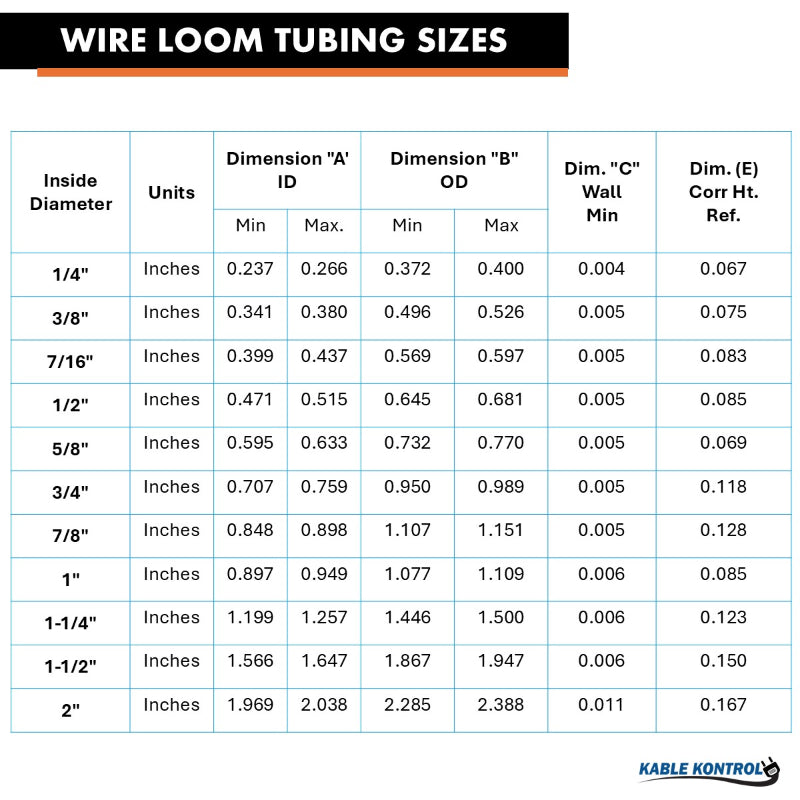

Technical Specifications & Test Data
