Polypropylene Flame Retardant Wire Loom Tubing

Polypropylene Flame Retardant Wire Loom Tubing

SKU FRPPWL.250-100SP

Login To View Discounted Wholesale Pricing

$32.40 - $5,288.86
$32.40
$32.40 - $5,288.86
$32.40
Request a quote

Delivery time

Want to Sell Our Products. Click Here

  • MADE IN NORTH AMERICA
  • Available in Black Only
  • Flame Test: Rated As V2 According to UL-94
  • Self-Extinguishing
  • Temperatures From -40ºF to +275ºF
  • Extremely Flexible & Has Very Good Chemical & Abrasion Resistance
  • Black Color Allows For Natural UV Protection
  • Center Split, Easy To Install
  • Approved by ABYC for use in the marine industry

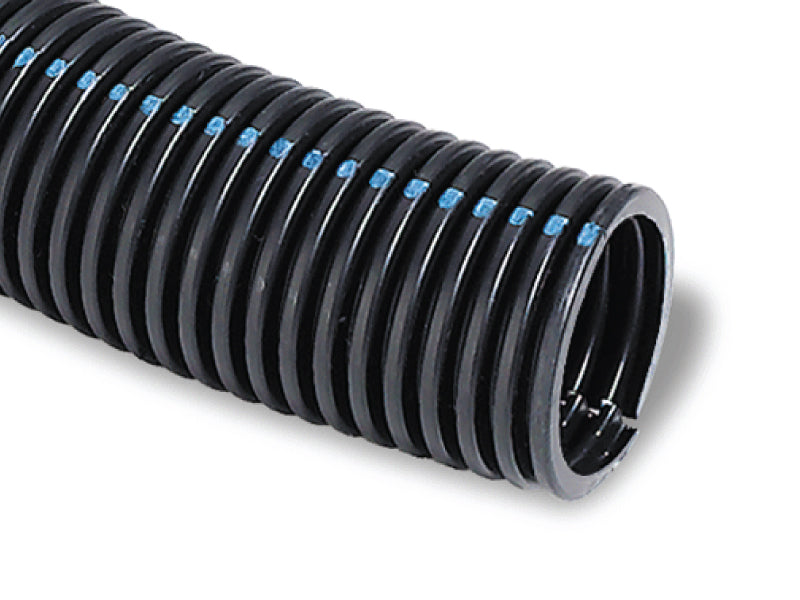

  • Blue Stripe For Flame Retardant Loom Identification
  • REACH & RoHS COMPLIANT

Polypropylene Flame retardant wire loom is manufactured to meet the stringent requirements of the marine and emergency vehicle industries where extra protection is necessary. FR wire loom meets UL 94-V2 rating for flame retardancy. The high-rise ridge of this Flame retardant loom tubing offers greater flexibility without twisting, tangling, or slit separation. It is distinctly identified by a blue stripe running its entire length. While some protective tubing is rigid, our Flame Retardant Polypropylene Wire Loom fully guards your vital cables and wiring against not only intense heat but also abrasion, chemicals, impact, and crushing, while retaining all the flexibility your cables had before.

Compliant with the European Union's Directive 2015/863 (RoHS 3)

REACH Compliance (EU Regulation EC 1907/2006)

NAFTA Certified

CATALOGUE

CHEMICAL RESISTANCE

ONLINE RETAILERS

Technical Specifications & Test Data

Nominal Internal Diameter  Dimension "A" Inside Diameter Dimension "B" Outside Diameter Dimension "C" Wall Thickness
Min Max Min Max
1/4" (6 mm) 0.237” (6.02 mm) 0.266” (6.76 mm) 0.372” (9.45 mm) 0.400” (10.16 mm) 0.005” (0.12 mm)
3/8" (9 mm) 0.341” (8.66 mm) 0.380” (9.65 mm) 0.496” (12.59 mm) 0.526” (13.36 mm) 0.005” (0.12 mm)
1/2" (13 mm) 0.471” (11.97 mm) 0.515” (13.07 mm) 0.645” (16.39 mm) 0.681” (17.31 mm) 0.005” (0.12 mm)
5/8" (16 mm) 0.603” (15.32 mm) 0.639” (16.23 mm) 0.802” (20.36 nmm) 0.837” (21.26 mm) 0.005” (0.12 mm)
3/4” (19 mm) 0.707” (17.96 mm) 0.759” (19.28 mm) 0.950” (24.13 mm) 0.989” (25.12 mm) 0.005” (0.12 mm)
1" (23 mm) 0.897” (22.78 mm) 0.949” (24.10 mm) 1.077 (27.36 mm) 1.109 (28.17 mm) 0.006” (0.15 mm)
1-1/4" (30 mm) 1.199” (30.45 mm) 1.257” (31.93 mm) 1.446” (36.73 mm) 1.500” (38.10 mm) 0.006” (0.15 mm)
1-1/2" (40 mm) 1.566” (39.78 mm) 1.647” (41.83 mm) 1.867” (47.42 mm) 1.947” (49.45 mm) 0.006” (0.15 mm)
2" (51 mm) 1.969” (50.01 mm) 2.038” (51.77 mm) 2.285” (58.04 mm) 2.388” (60.66 mm) 0.011” (0.028 mm)

Flexible polypropylene convoluted tubing / conduit manufactured with a flame-retardant additive.

Performance Enhancers
Flame Retardant Yes
UV Inhibitor No
Heat Stabilizer No
Performance Characteristics
Flexibility Good
Abrasion Resistance Good
Chemical Resistance Good
Recommended Operating Upper Temperature +275°F (135°C)
Recommended Operating Lower Temperature -40°F (-40°C)
