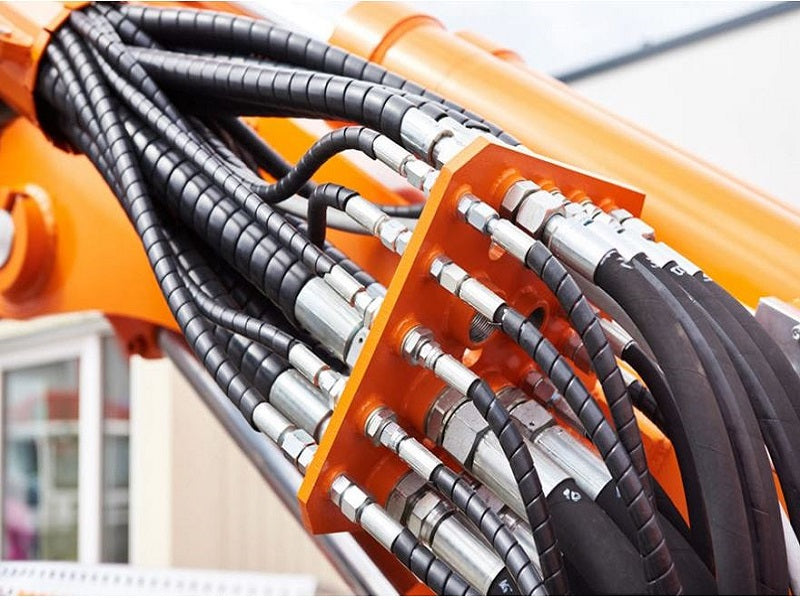

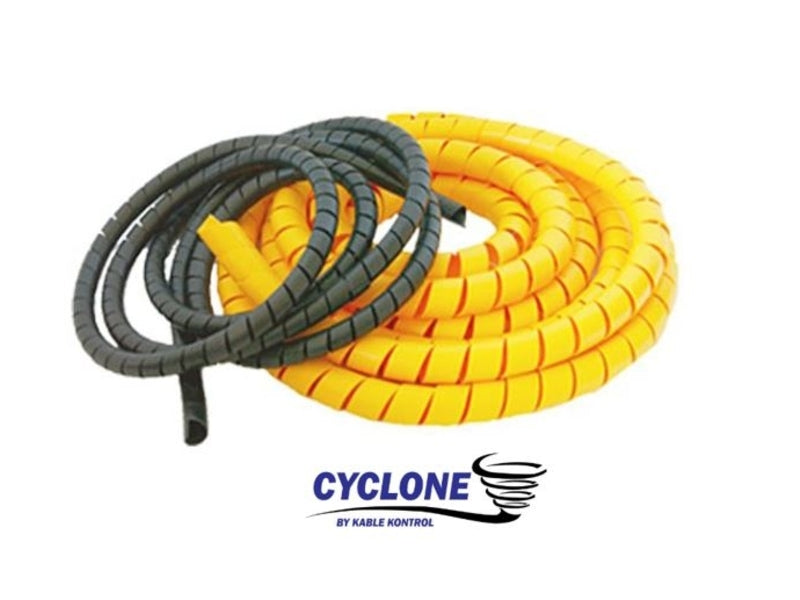

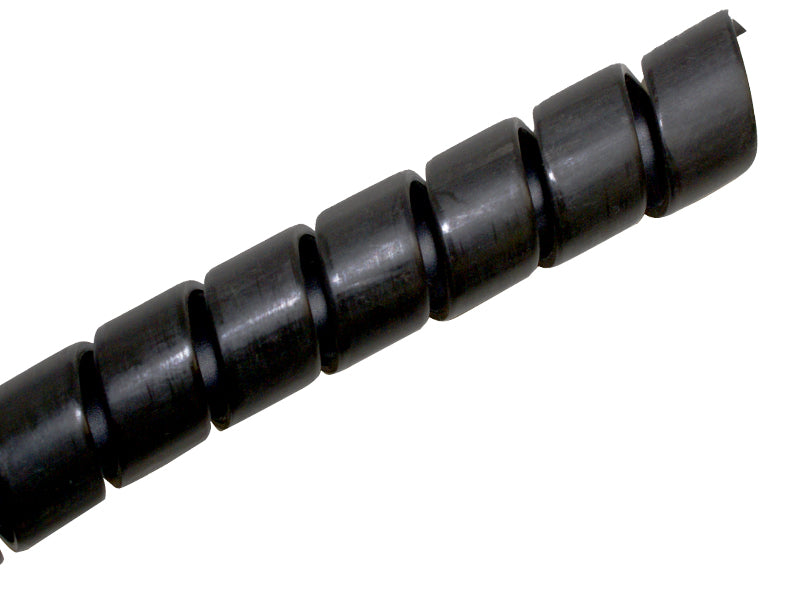

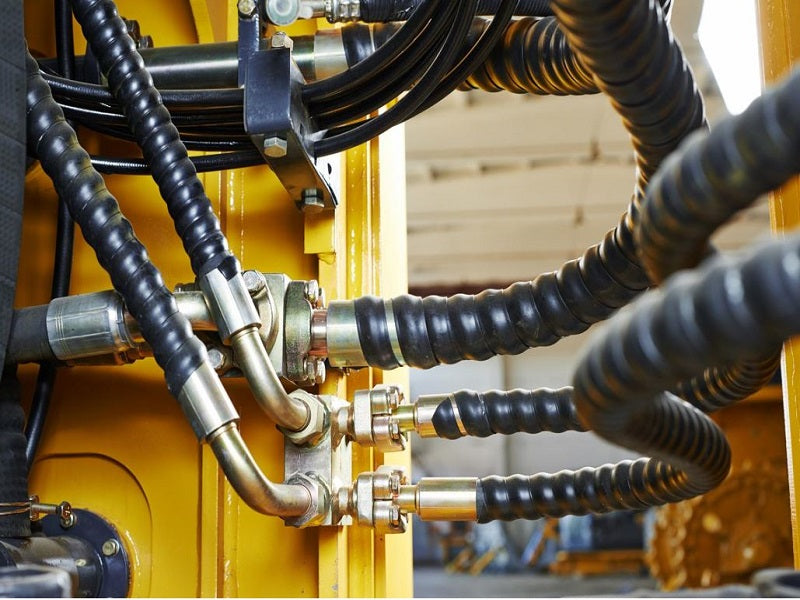

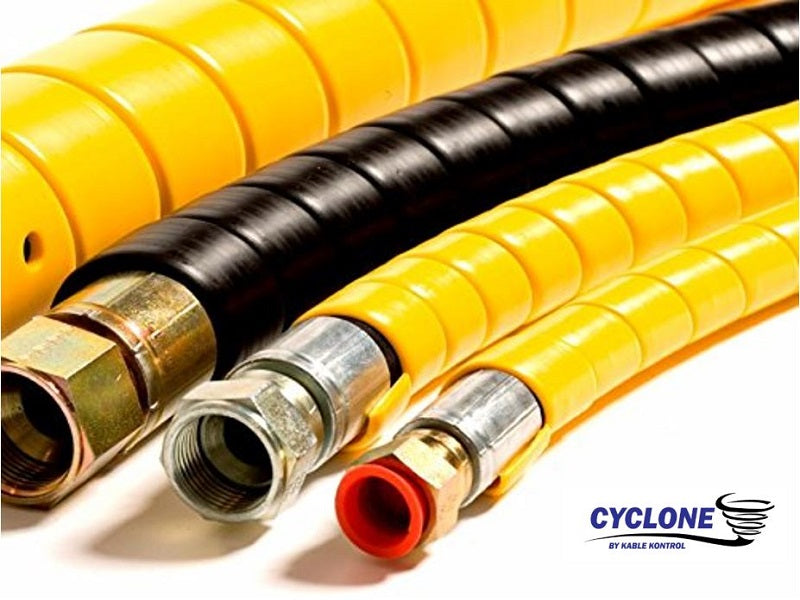

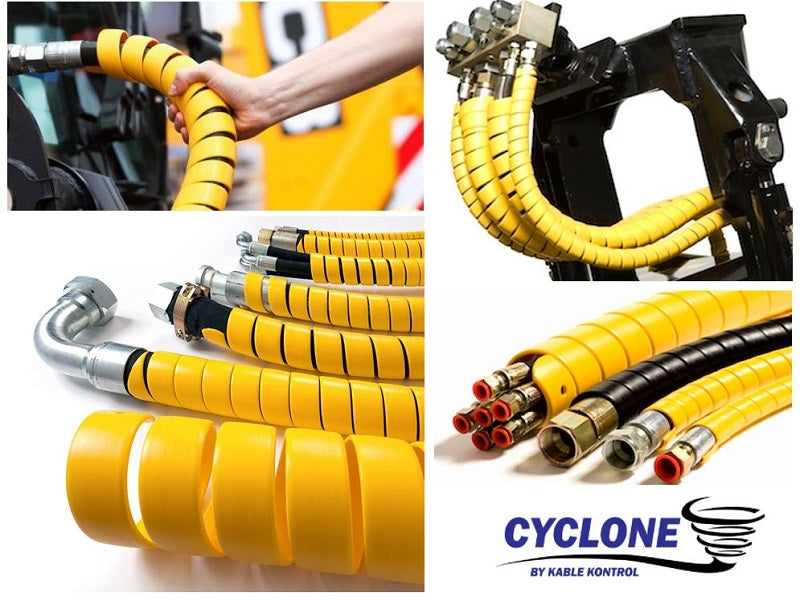

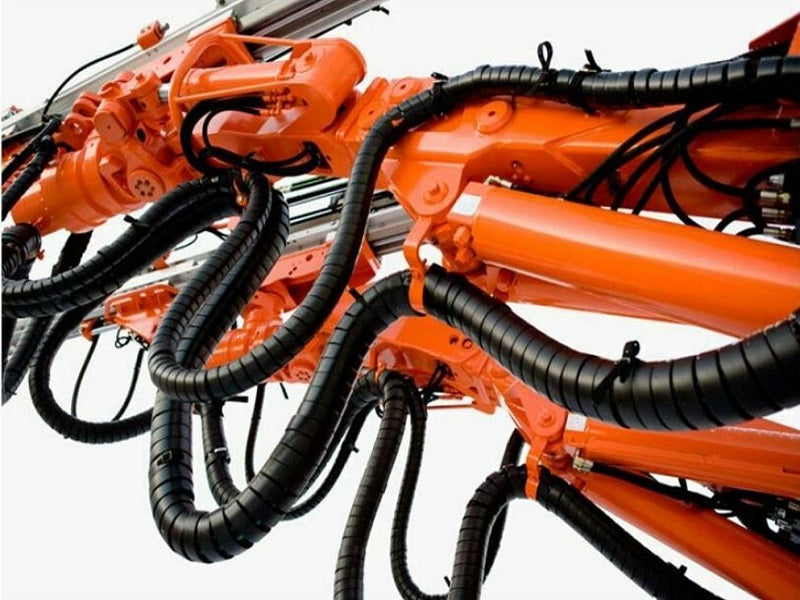

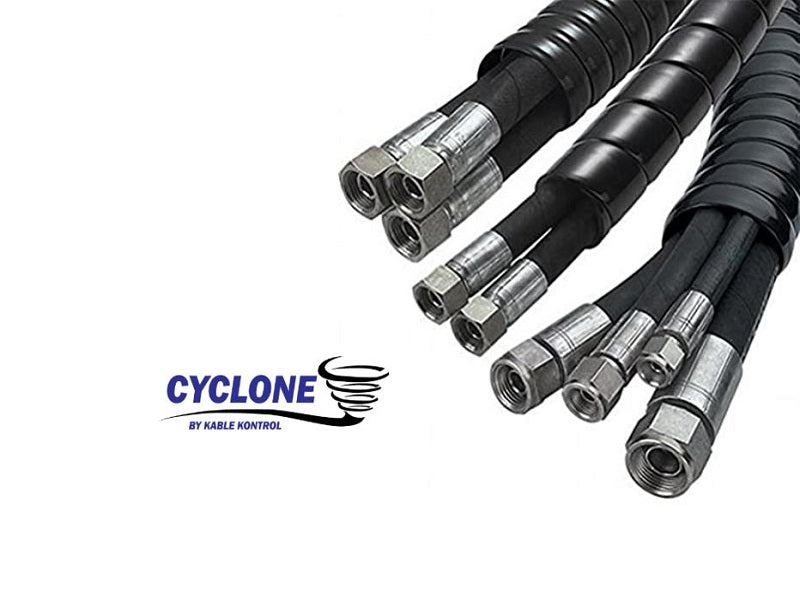

Cyclone Heavy Duty HDPE hydraulic hose wrap spiral Tubing helps protect your investment from damage and wear. HDPE hydraulic hose wrap is ideal for heavy-duty bundling and hydraulic hose protection. As the name suggests Cyclone Heavy Duty Spiral Wrap is an HDPE (High-Density Polyethylene) protective spiral hose wrap designed specifically for heavy-duty bundling and protection of hydraulic and pneumatic hoses used across various industries. It serves as a cost-effective and quick method for minimizing heavy production losses. Cyclone® hydraulic hose spiral wrap protects against production losses and damage caused by depreciation, abrasion, regular misuse, poor maintenance, or severe working environments. HDPE Heavy Duty Spiral Wrap is available in a wide range of dimensions and fits.
MSHA Certified
Technical SpecificationsÂ
| Part Number | Nominal OD (mm/inch) | Nominal ID (mm/inch) | Wall Thickness (mm/inch) | Pitch (mm/Inch) | Feet/Box |
| HGPW-12-165 | 12mm/0.47" | 9mm/0.35" | 1.5mm/0.059" | 10mm/0.39" | 165' |
| HGPW-16-165 | 16mm/0.63" | 12.6mm/0.50" | 1.7mm/0.067" | 12mm/0.47" | 165' |
| HGPW-20-66* | 20mm/0.79" | 16mm/0.63" | 2mm/0.079" | 16mm/0.63" | 66' |
| HGPW-20-165 | 20mm/0.79" | 16mm/0.63" | 2mm/0.079" | 16mm/0.63" | 165' |
| HGPW-25-66* | 25mm/0.98" | 20.6mm/0.81" | 2.2mm/0.087" | 20mm/0.79" | 66' |
| HGPW-25-165 | 25mm/0.98" | 20.6mm/0.81" | 2.2mm/0.087" | 20mm/0.79" | 165' |
| HGPW-32-66* | 32mm/1.26" | 27mm/1.06" | 2.5mm/0.098" | 22mm/0.87" | 66' |
| HGPW-32-165 | 32mm/1.26" | 27mm/1.06" | 2.5mm/0.098" | 22mm/0.87" | 165' |
| HGPW-40-66* | 40mm/1.57" | 34.6mm/1.36" | 2.7mm/0.106" | 27mm/1.06" | 66' |
| HGPW-40-165 | 40mm/1.57" | 34.6mm/1.36" | 2.7mm/0.106" | 27mm/1.06" | 165' |
| HGPW-50-66* | 50mm/1.97" | 44mm/1.73" | 3.0mm/0.118" | 30mm/1.18" | 66' |
| HGPW-63-66* | 63mm/2.48" | 55.4mm/2.18" | 3.8mm/0.150" | 37mm/1.46" | 66' |
| HGPW-75-66* | 75mm/2.95" | 67mm/2.64" | 4.0mm/0.157" | 42mm/1.65" | 66' |
| HGPW-90-66* | 90mm/3.54" | 80mm/3.15" | 5.0mm/0.197" | 45mm/1.77" | 66' |
| HGPW-110-40* | 110mm/4.33" | 99mm/3.90" | 5.5mm/0.220" | 50mm/1.97" | 40' |
| HGPW-125-40* | 125mm/4.92" | 113mm/4.45" | 6.0mm/0.240" | 55mm/2.17" | 40' |

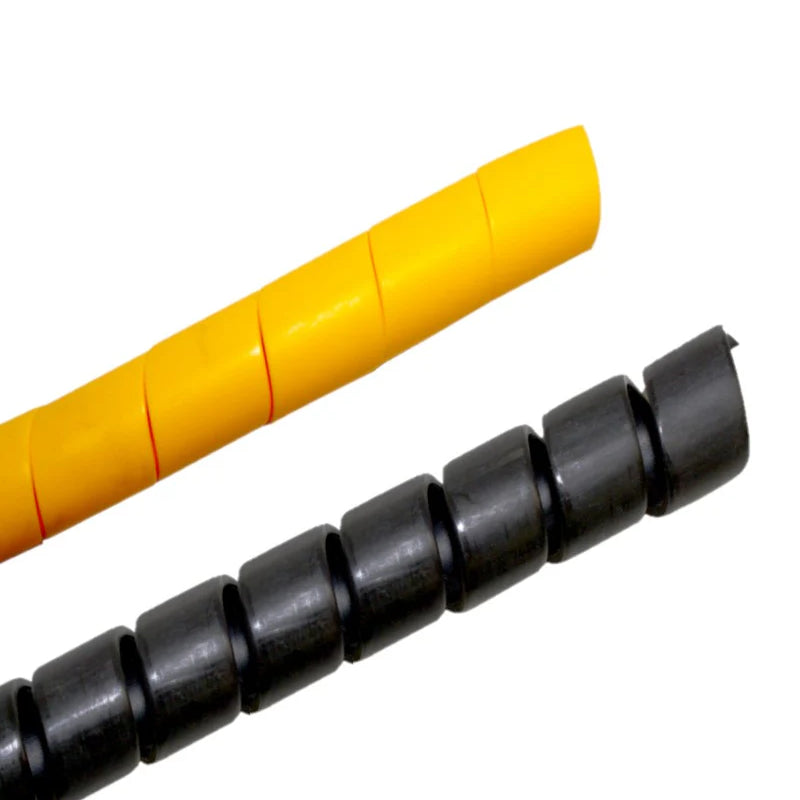

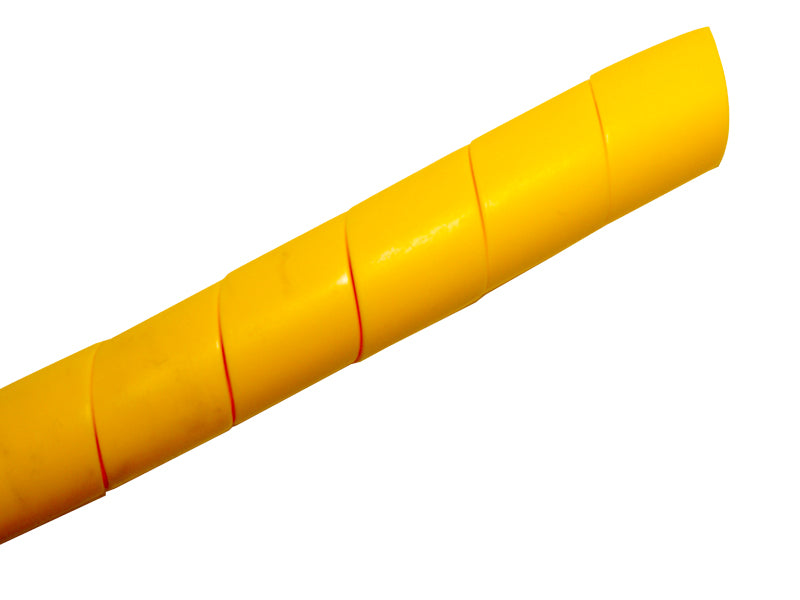

*Available in Black or Yellow
Testing DataÂ
| Properties | Unit | Testing Method | Thai-zex Advance 8100MB |
| Melt Flow Rate @ 2.16kg. 190ÂşC | g/10 Min. | ASTM D1238 | 0.03 |
| Melt Flow Rate @ 21.6kg. 190ÂşC | g/10 Min. | ASTM D1238 | 6 |
| Density @ 23ÂşC | g/cm3 | ASTM D1505 | 0.962 |
| Tensile Strength @ Yield | kg/cm2 | ASTM D638 | 230 |
| Tensile Strength @ Break | kg/cm2 | ASTM D638 | 360 |
| Elongation @ Break | % | ASTM D638 | 780 |
| Stiffness (Olsen) | kg/cm2 | ASTM D747 | 8500 |
| Izod Impact Strength (With Notch) | kg.cm/cm | ASTM D256 | 45 (NB) |
| MRS | MPa | ISO/TR 9080 | 10 |
| Classification | - | ISO 12162 | PE100 |
| ESCR (F50) | Hours | ASTM D1693 | >2000 |
| Carbon Black Content | % | ASTM D4218 | >2.00 |
