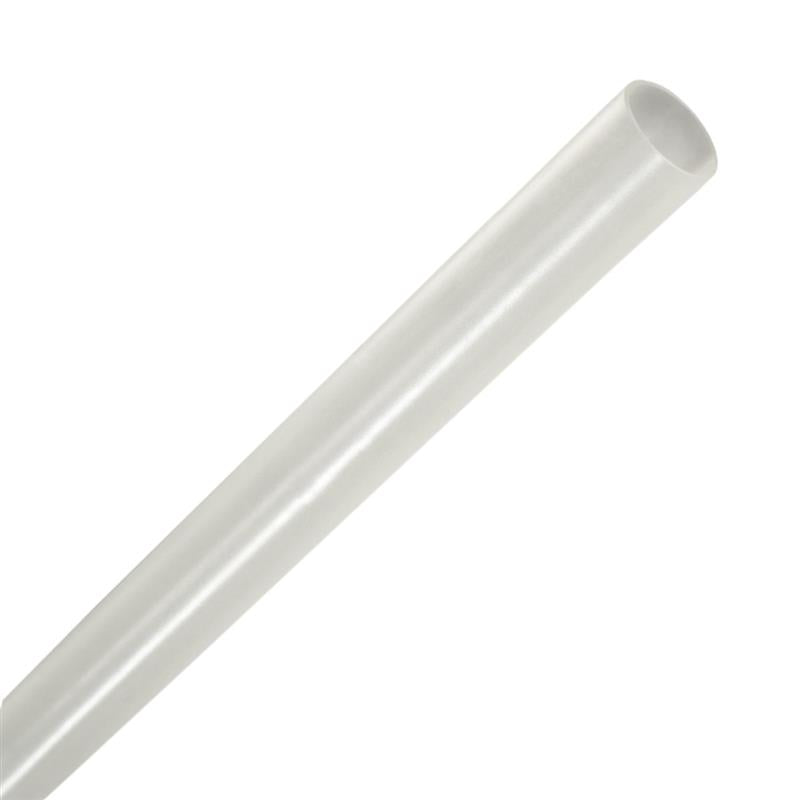

PTFE Teflon Heat Shrink Tubing 4:1

Name: PTFE Teflon Heat Shrink Tubing 4:1
Brand: KABLE KONTROL®
SKU: HS4-PTFE-012-4-CL
Price: 14.44 USD
Availability: InStock

SKU HS4-PTFE-012-4-CL

Login To View Discounted Pricing

$14.44 - $87.54

$14.44

$14.44 - $87.54

$14.44

Quantity

Want to Sell Our Products. Click Here

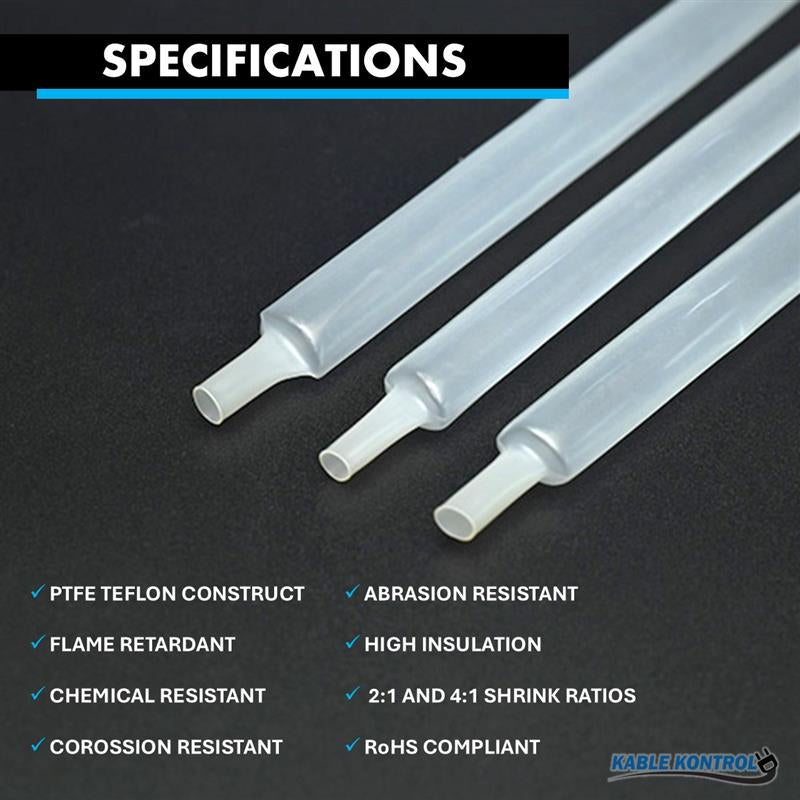

Description

Sold as 4’ Feet Stick
Exceptional resistance to corrosion: shields against harsh acids, alkalis, chemicals, and oils
High dielectric strength: provides excellent electrical insulation
Operating temperature range: -65°C to +200°C
Transparent (clear) color
Shrink Temperature: >350°C

Kable Kontrol® PTFE Heat Shrinkable Tubing delivers advanced protection and electrical insulation in the harshest industrial environments. Made from high-purity Teflon™ PTFE, this tubing excels in resisting corrosive substances and withstanding high voltages. Its wide temperature tolerance and chemical resilience make it a reliable choice for high-performance applications in aerospace, automotive, chemical processing, mechanical systems, transformers, and communication infrastructure. Designed for durability and efficiency, it offers long-term performance where other materials fail.

CERTIFICATES & STANDARDS

UL Listed, File E536025
RoHS Compliant

Property	Test Method	Standard
Tensile Strength(MPa)	ASTM D2671	19
Elongation(%)	ASTM D2671	200
Cold impact (-65°C)	ASTMD 2671 Method C	No cracking
Flammablity	ASTM D2671	VW-1
Dieletric strength(kV/mm)	VDE 0303 Part2	26
Volume resistivity(Ω.cm)	VDE 0303 Part2	1.0X10¹⁴

Inside Diameter	As Supplied (mm)	Recovered (mm)
Inside Diameter	Inner Diameter	Inner Diameter	Wall Thickness
3mm (1/8”)	3.0＋0.8/-0.3	≤0.75	0.30±0.05
4.5mm (3/16”)	4.5＋0.8/-0.3	≤1.12	0.30±0.05
6mm (1/4”)	6.0＋0.8/-0.3	≤1.50	0.30±0.05
9.5mm (3/8”)	9.5＋0.8/-0.3	≤2.40	0.30±0.05
