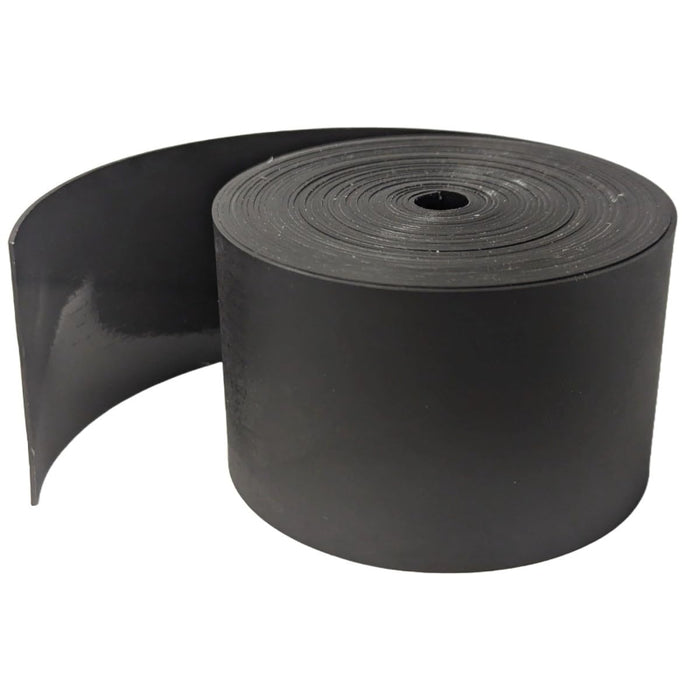

Heat Shrink Tape

SKU RSJD-1IN-0.04T
Original price $14.50 - Original price $21.98
Original price
$14.50
$14.50 - $21.98
Current price $14.50
Request a quote

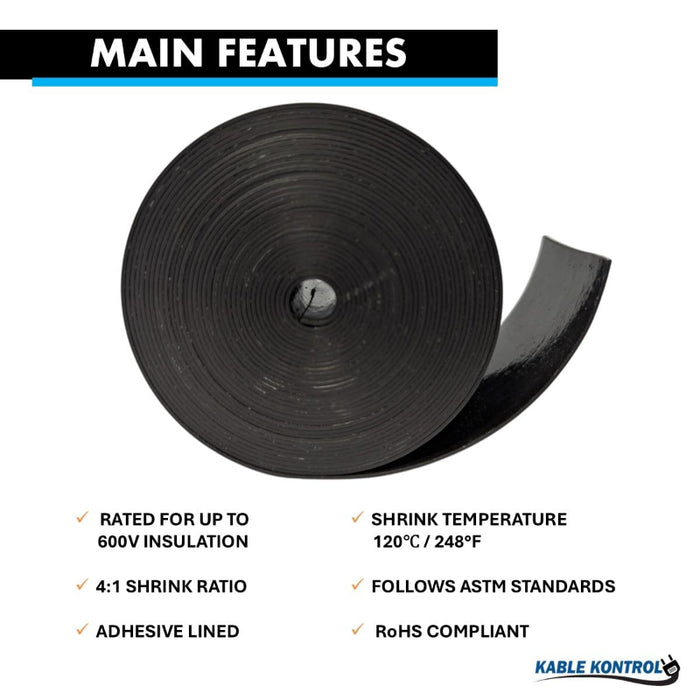

  • Each Roll is 16.5 Feet In Length
  • 4:1 shrink ratio
  • Continuous operating temperature: -45℃ - 125℃
  • Shrink temperature: 120℃
  • Easily Repairs Damaged Wires  Without Disconnecting
  • Adhesive Lining Protects Against Moisture Penetration
  • Capable For Long Term Protection of Wire
  • Helps Protect Pipes From Corrosion
  • Internal Wall of Hot-Melt Adhesive Which Provides Excellent Bonding - Plastic & Metals.
  • RoHS Compliant

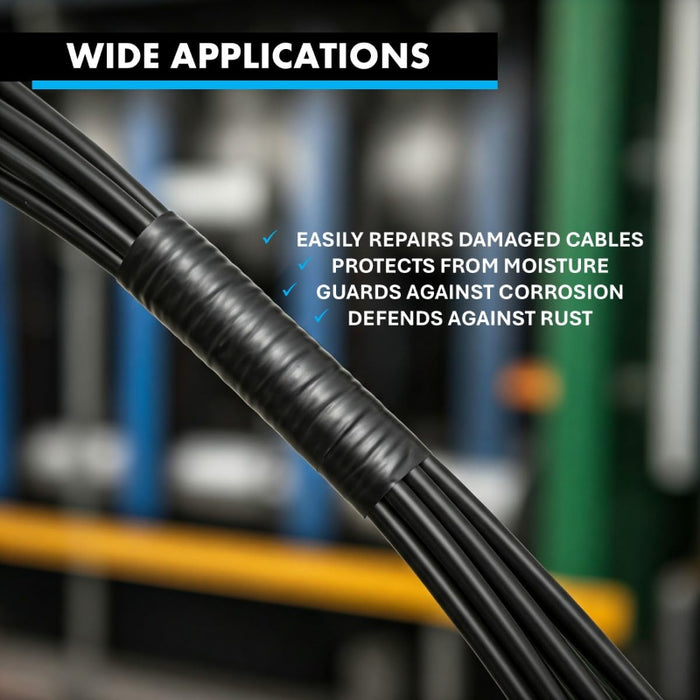

  • Great for damaged Cables and Wires
  • Defends against rust on pipes
  • Eliminates air leakage in vacuum and ventilation systems
  • Seals against moisture ingress and other contaminants
  • Powerful adhesive bonds to galvanized steel, Aluminum and stainless steel
  • ​Effective, reproducible seal allows for resistance to bending, vibrations and other mechanical stresses over a wide range of temperatures

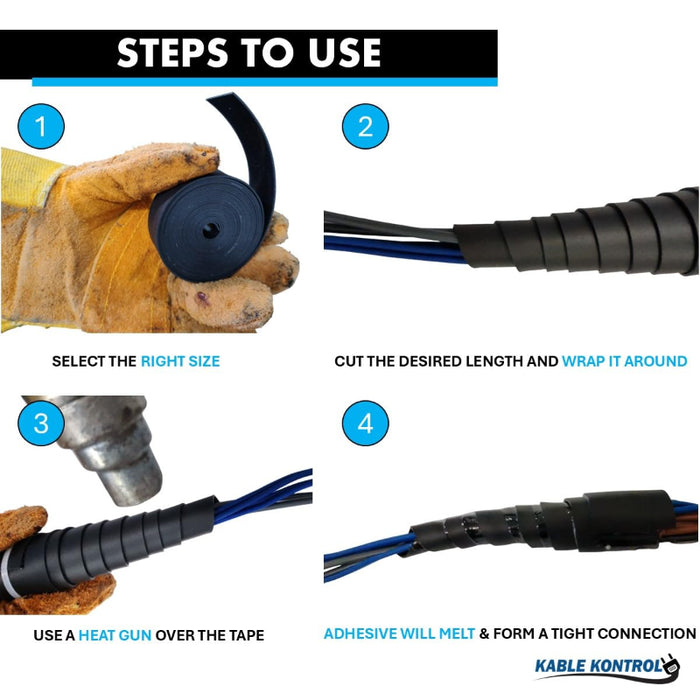

  • Application procedure is quick, simple and clean

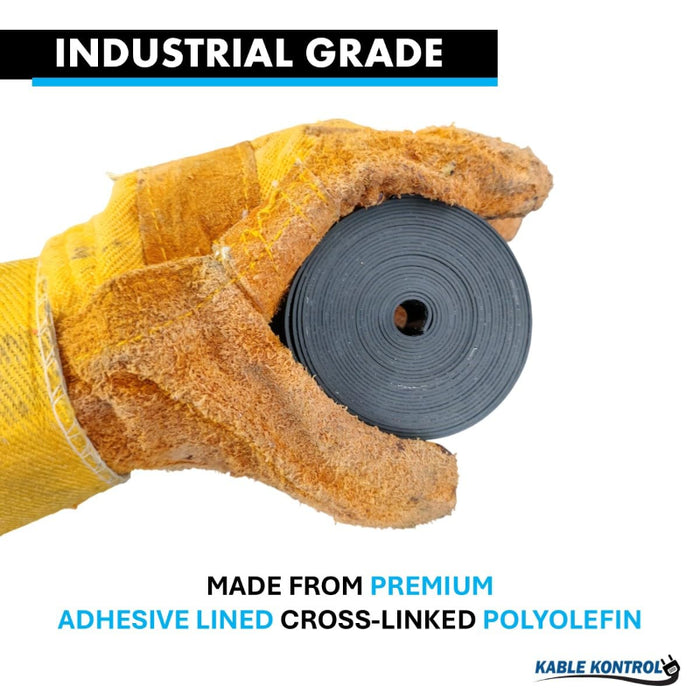

Kable Kontrol® Electrical Heat shrink tape is a heat melted adhesive-backed polyolefin tape. Kable Kontrol adhesive heat shrink tape is primarily used for the repair of electrical cabling and in wire insulation applications. Heat Shrink tape is especially effective when wires cannot be disconnected, but has many other uses as well. Kable Kontrol’s Adhesive Lined Cross-Linked Polyolefin Heat Shrink Tape Adhesive lined, heat shrink duct and vacuum tape may also be utilized in sealing joints on spiral, flexible or flat oval ducts used in heating, ventilating, air conditioning and exhaust recovery systems.

RoHS Compliant

ONLINE RETAILERS

Technical Specifications

Physical Properties
PROPERTY TEST METHOD TEST DATA
Tensile Strength (MPa) ASTM D638 ≥12
Tensile Strength (after Thermal Aging) ASTM D2671/120°C, 168 hrs ≥10
Elongation (%) ASTM D638 ≥400%
Dielectric strength (KV/mm) IEC 243 ≥20
Volume resistance (Ω.m) IEC 250 ≥1 X 1014

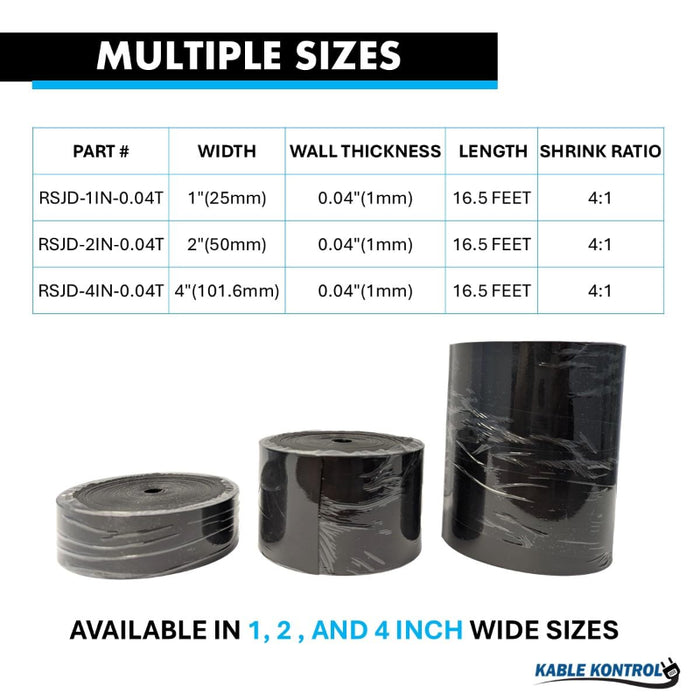

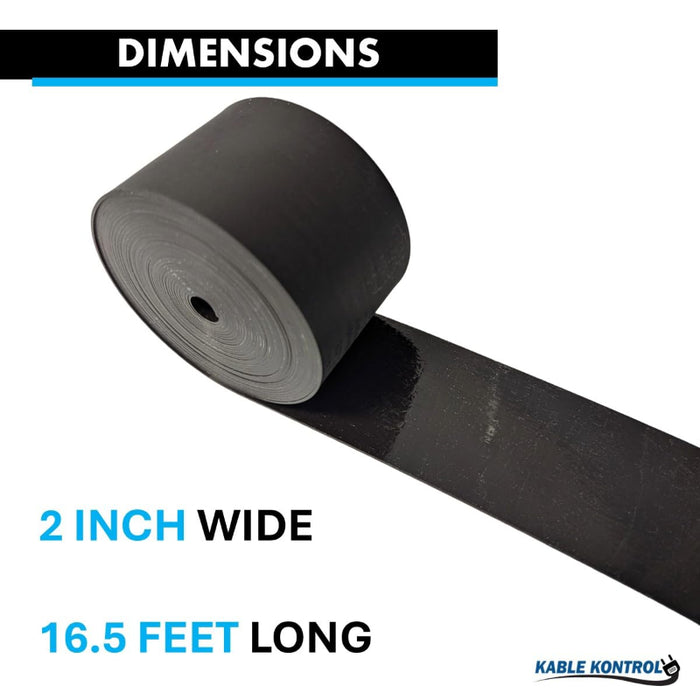

Dimensions
SKU WIDTH WALL THICKNESS
RSJD-1IN-0.04T 1"(25mm) 0.04"(1mm)
RSJD-2IN-0.04T 2"(50mm) 0.04"(1mm)
