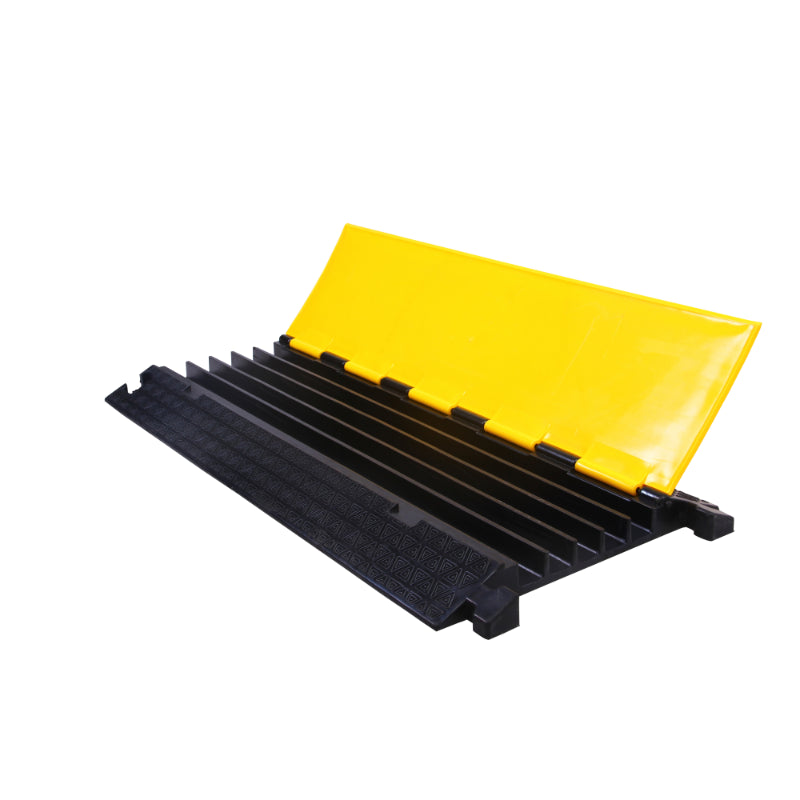

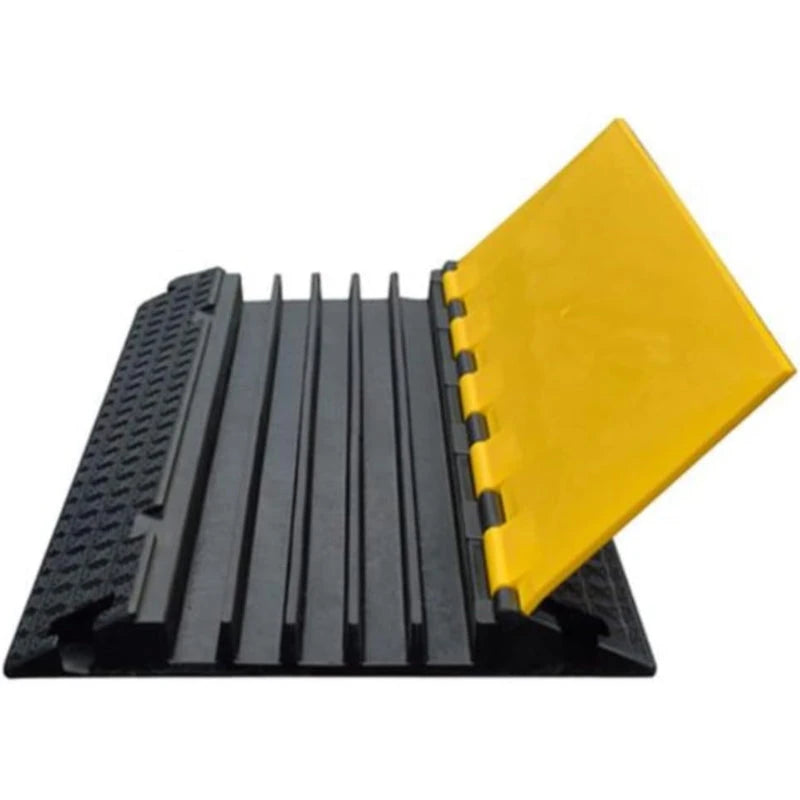

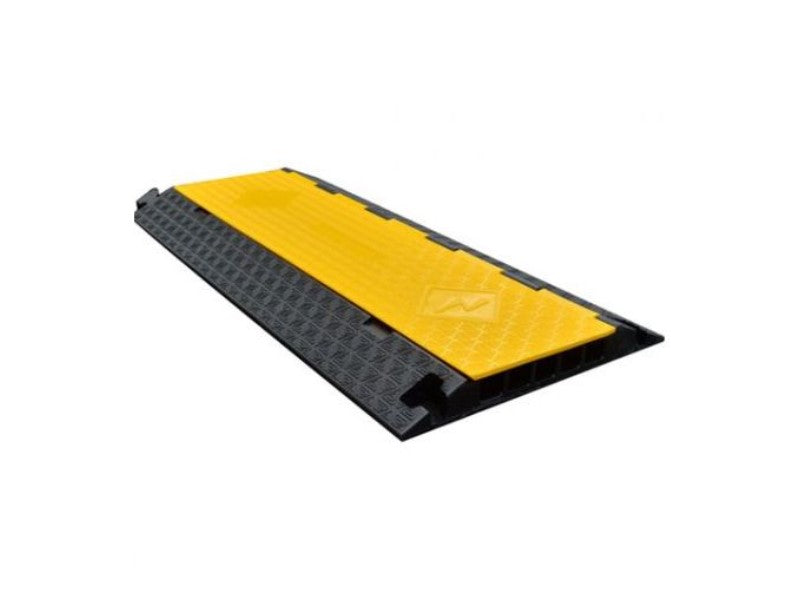

ATLAS Rubber Cable Protector - 5 Channels - CP9975

ATLAS Rubber Cable Protector - 5 Channels - CP9975

SKU
  • Number OF Channels - 5 Channel
  • Channel Size - 1.25" H x 1.25" W
  • Length - 36" Long
  • Color - Yellow / Black
  • 5,000 Lbs Per Axle
  • Lighter Weight than heavy-duty models. Save on shipping and setup / tear down with ease.
  • Maximum Weight Capacity 5,000 Lbs Per Axle
  • Commonly Used In *Light* Vehicle & Pedestrian Foot Traffic Applications
  • Constructed With Recycled Rubber Base & Polyurethane Lid
  • Able To Withstand Severe Weather & Temperatures from -40ºF to +130ºF
  • Highly Visible, Black Base & Safety Yellow Hinged lid

    Where To Buy

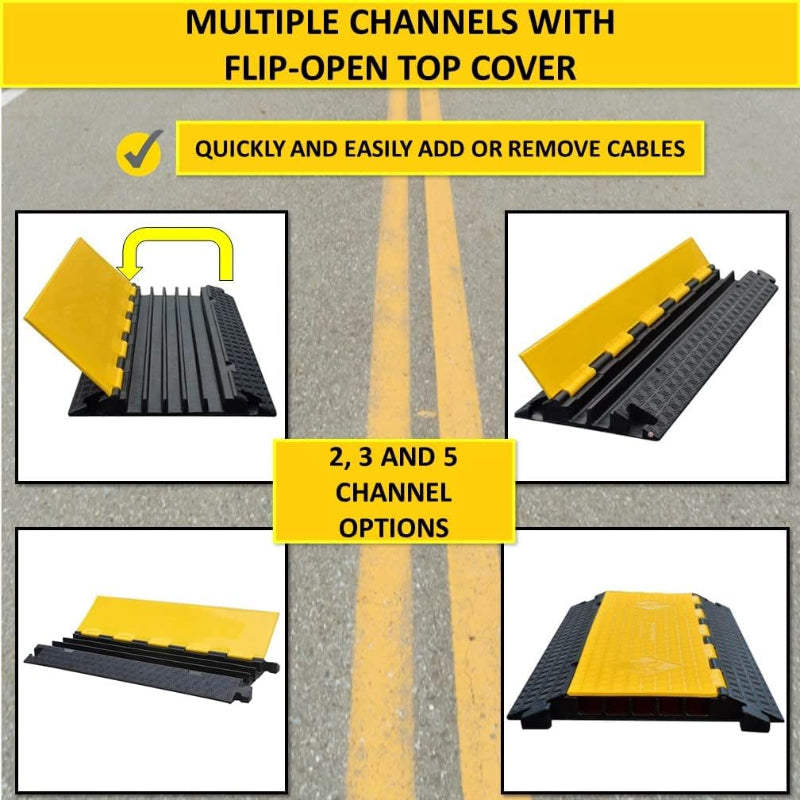

    Kable Kontrol® ATLAS® Medium Duty Rubber Cable Protector - 5 Channel - 1.25" H x 1.25" W is constructed from recycled rubber and designed for the protection of multiple valuable cables or hoses. Moreover, these light-duty cable covers will ensure that your wires and hoses do not become potential tripping hazards for any pedestrians that will be walking over them. The hinged lid allows for the easy top loading of cables. Further, due to their rigid manufacturing process, these light-duty cable covers are commonly used both outdoors and indoors as well as in any in weather condition.

    NOTE: Kable Kontrol® ATLAS® Rubber Cable Protectors are NOT Designed or rated to Withstand Heavy Vehicle Traffic.

    RoHS & REACH Compliant

    MUTCD & OSHA Compliant

    SPECIFICATIONS

    Part #

    CP9975

    Color

    Yellow Lid / Black Base

    Quantity Included

    1 Pc

    Pallet Quantity

    56

    Load Capacity Per Axle

    5,000 Lbs.

    Overall Length (Inches)

    36

    Overall Width (Inches)

    22

    Overall Height (Inches)

    2.125

    Weight

    22 Lbs.

    Number of Channels

    5 - Channel

    Connector Type

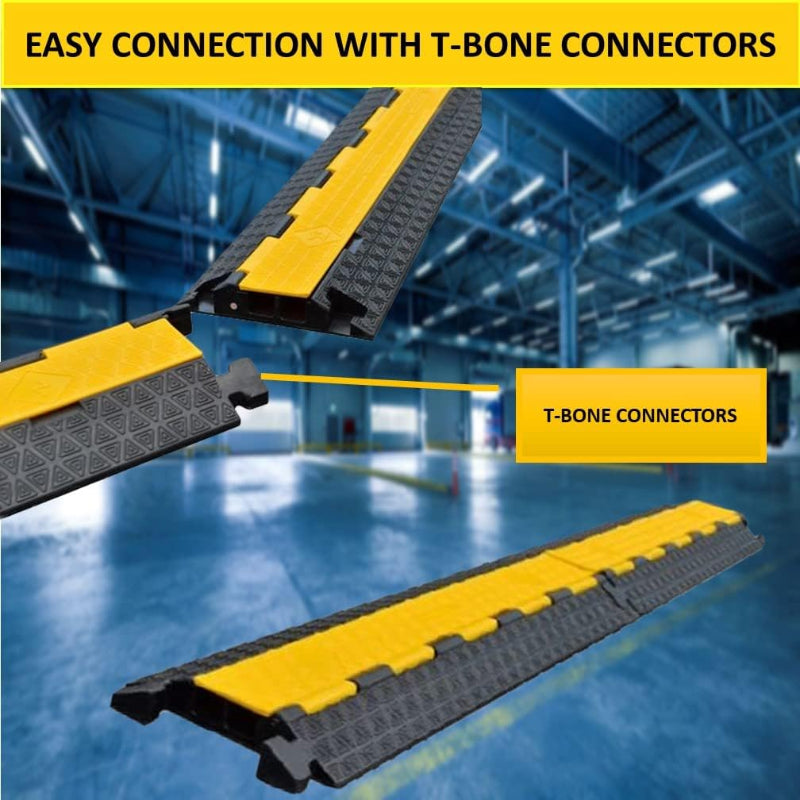

    T - Bone Connector

    Channel Width (Inches)

    1.25

    Channel Height (Inches)

    1.25

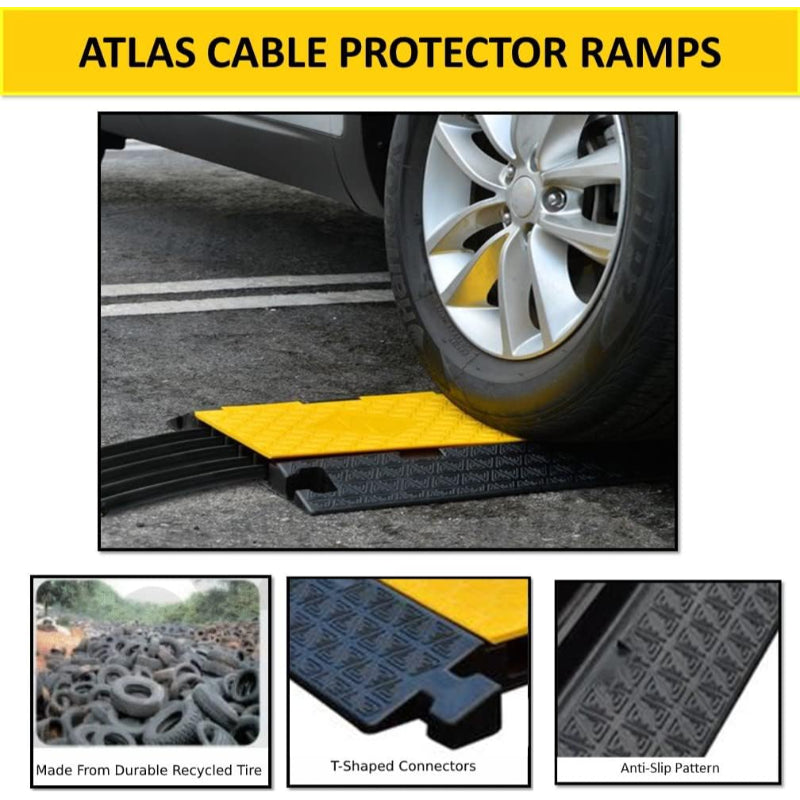

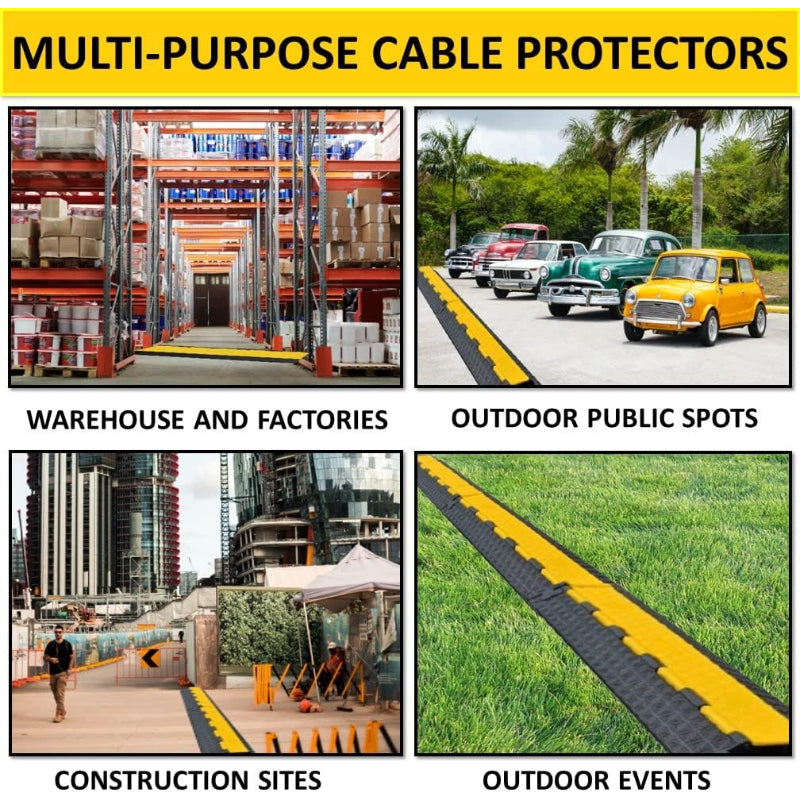

    The Atlas® Cable Protectors made by Kable Kontrol®, are constructed from industrial grade rubber and designed for the protection of multiple valuable cables or hoses. These durable cable protector ramps will ensure that your wires and hoses do not become potential tripping hazards for any pedestrians that will be walking over them. The hinged lid allows for the easy top loading of cables. Further, due to their rigid manufacturing process, these Atlas heavy duty cable protectors are commonly used both outdoors and indoors as well as in any in weather condition. The black base contrasted against the bright safety yellow lid makes these cable ramps highly visible to any nearby pedestrians, further lowering the possibility of pedestrian injury. These cable protector ramps can withstand thousands of pounds of vehicle drive-over weight from 14,000 - 26,000 Lbs Per Axle depending on which channel configuration you choose. Lastly, these cable protectors do not move around because of their natural weight. For maximum functionality, the rubber cable protectors have been treated for temperature resistivity and UV-stabilization.
