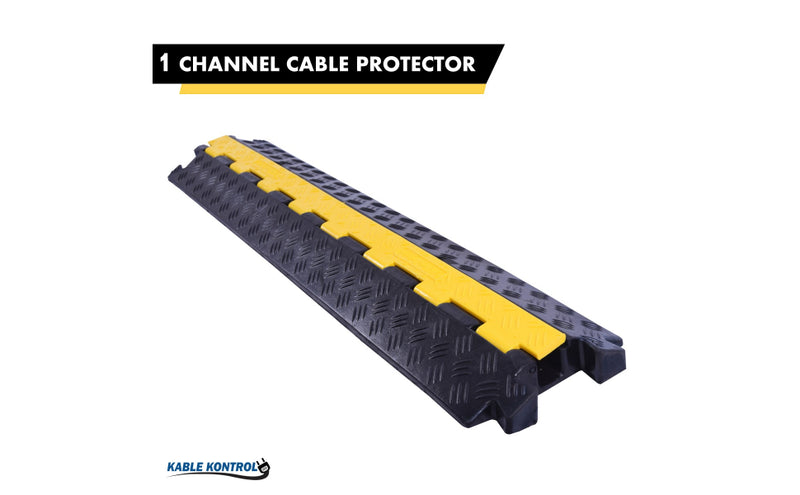

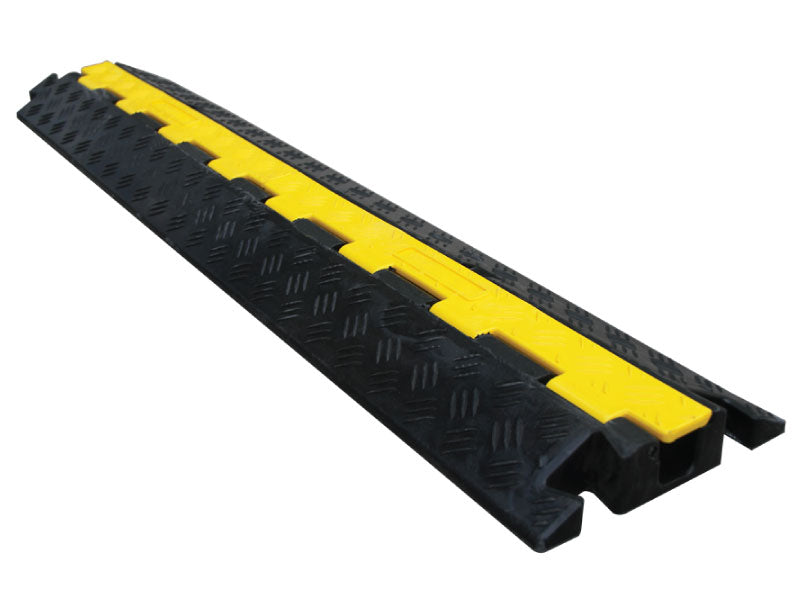

ATLAS Heavy Duty Rubber Cable Protector - 1 Channel - CP9896

SKU CP9896
Original price $75.98 - Original price $75.98
Original price
$75.98
$75.98 - $75.98
Current price $75.98
Request a quote

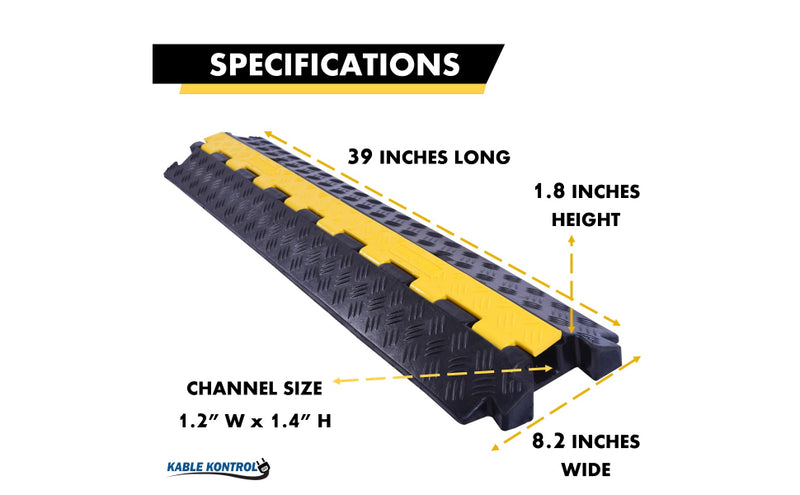

  • Number OF Channels - 1 Channel
  • Channel Size - 1.125" H x 1.25" W
  • Length - 39.37" Long
  • Color - Yellow / Black

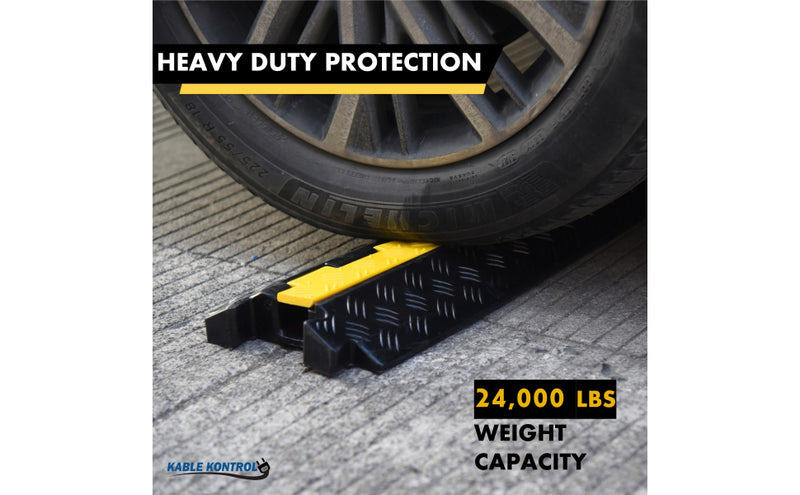

  • 26,000 Lbs Per Axle Weight Rating
  • Commonly Used In Vehicle & Pedestrian High Traffic Applications
  • Highly Durable To Withstand Severe Weather & Temperatures from -40ºF to +130ºF

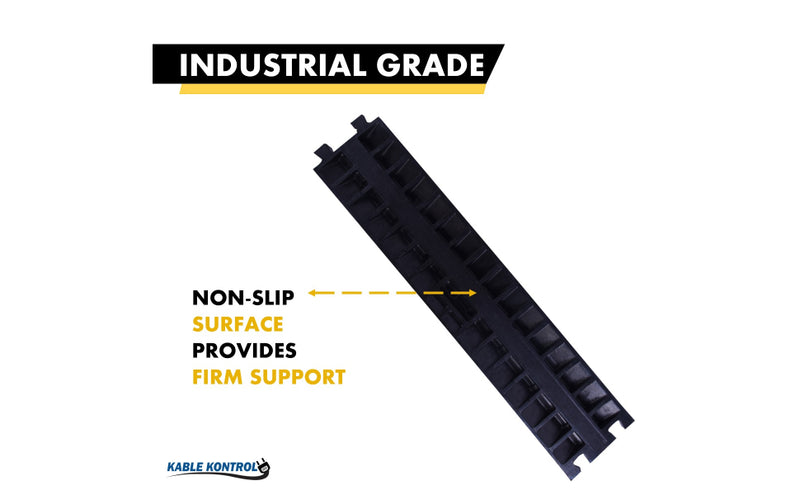

  • Constructed From Highly Durable Industrial Grade Rubber Base & Polyurethane Lid
  • Highly Visible, Black Base & Safety Yellow Hinged lid
  • Treated for temperature resistivity and UV-stabilization

Kable Kontrol® ATLAS® Heavy Duty Rubber Cable Protector - 1 Channel - 1.125" H x 1.25" W suitable for the protection of wires, cables, and cords in areas where heavy vehicles or constant pedestrian traffic is present. The rubber HD cable cover is manufactured with thick, commercial-grade rubber that is impact and temperature resistant for increased durability. Our selection of heavy duty rubber cable covers is suitable for indoor and outdoor usage.

    RoHS & REACH Compliant

    MUTCD & OSHA Compliant

    ONLINE RETAILERS

    SPECIFICATIONS

    Part #

    CP9896

    Color

    Yellow Lid / Black Base

    Quantity Included

    1 Pc

    Pallet Quantity

    134

    Load Capacity Per Axle

    26,000 Lbs.

    Load Capacity Per Tire

    9,000 Lbs.

    Failure Max Capacity

    31,200 Lbs.

    Overall Length (Inches)

    39.37

    Overall Width (Inches)

    8.267

    Overall Height (Inches)

    1.77

    Weight

    11.68 Lbs.

    Number of Channels

    1 - Channel

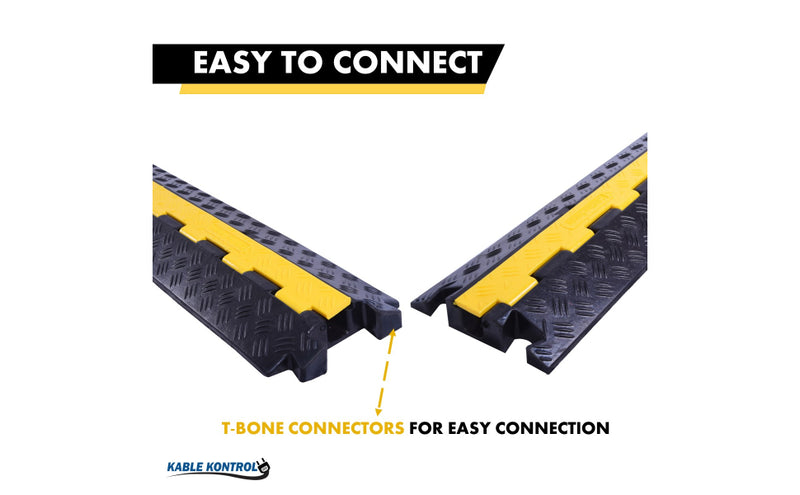

    Connector Type

    T - Bone Connector

    Channel Width (Inches)

    1.25

    Channel Height (Inches)

    1.125

    Atlas® Cable Protectors

    Atlas® Cable Protectors

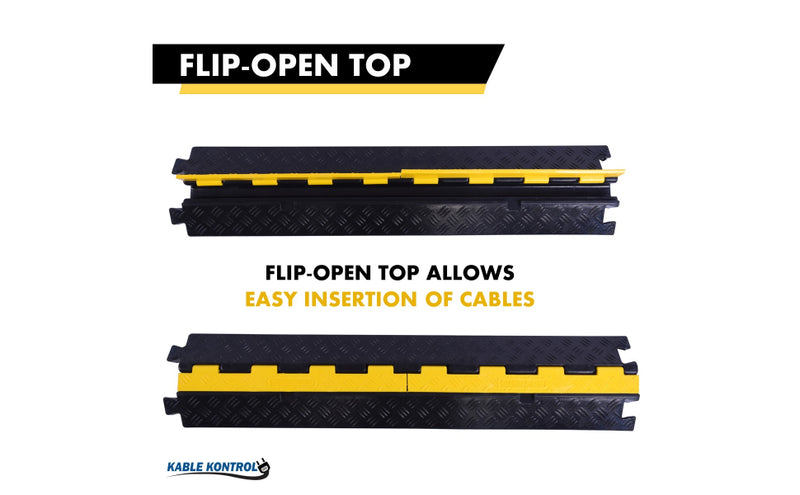

    The Atlas® Cable Protectors made by Kable Kontrol®, are constructed from industrial grade rubber and designed for the protection of multiple valuable cables or hoses. These durable cable protector ramps will ensure that your wires and hoses do not become potential tripping hazards for any pedestrians that will be walking over them. The hinged lid allows for the easy top loading of cables. Further, due to their rigid manufacturing process, these Atlas heavy duty cable protectors are commonly used both outdoors and indoors as well as in any in weather condition. The black base contrasted against the bright safety yellow lid makes these cable ramps highly visible to any nearby pedestrians, further lowering the possibility of pedestrian injury. These cable protector ramps can withstand thousands of pounds of vehicle drive-over weight from 14,000 - 26,000 Lbs Per Axle depending on which channel configuration you choose. Lastly, these cable protectors do not move around because of their natural weight. For maximum functionality, the rubber cable protectors have been treated for temperature resistivity and UV-stabilization.
