  • Overall Dimensions – 37” L x 40” W x 1.3” H
  • Max Weight Capacity Per Axel: 33,040 lbs
  • No. of Channel – 5 Channels
  • Can be connected to our Low Channel Protector (CP9983-LP)
  • Meets ADA Requirement of maximum running slope 1:12 (4.76°)
  • Non-skid traction surface for added stability
  • “T” Type Connector
  • Durable construction
  • Wide-angle Skid resistance ramp makes it extremely convenience to handicapped people
  • Constructed From Highly Durable Industrial Grade Rubber Base & Polyurethane Lid
    ADA Compliant for wheelchair access
  • The dimension can be unlimited increase by adding middle sections, assembling procedure is easy and simple
  • The channels of the protectors are designed to connect seamlessly to allow smooth passage of cables between protectors

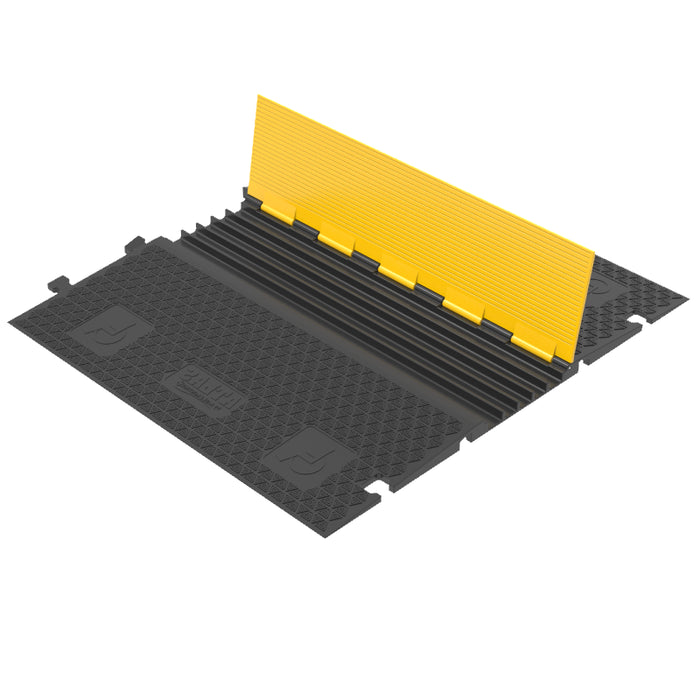

The ATLAS® ADA Cable Protector Ramp combines robust cable protection with ADA compliance, ensuring safety and accessibility in high-traffic environments. Designed with gently sloped ramps and textured surfaces, it accommodates pedestrians, wheelchairs, carts, and vehicles while shielding cables and hoses from damage. Manufactured from heavy-duty, weather-resistant industrial grade rubber base and an HDPE lid the ATLAS® ADA Cable Protector Ramp is suitable for both indoor and outdoor use, offering exceptional durability and reliability. Its interlocking design allows for easy installation and customization to fit various applications, making it an ideal solution for events, construction sites, and industrial settings that require accessibility without compromising cable protection.

RoHS & REACH Compliant

MUTCD & OSHA Compliant

SPECIFICATIONS

Part #

CP9983-LP

Color

Yellow Lid / Black Base

Quantity Included

1 Pc

Pallet Quantity

56

Load Capacity Per Axle

33,040 Lbs.

Load Capacity Per Tire

16,500 Lbs.

Overall Length (Inches)

37

Overall Width (Inches)

16

Overall Height (Inches)

1.3

Weight

18 Lbs.

Number of Channels

5 - Channel

Connector Type

T - Bone Connector

Channel Width (Inches)

1.5 (Outer) & 1.31 (Inner)

Channel Height (Inches)

0.75
Atlas® Cable Protectors

Atlas® Cable Protectors

The Atlas® Cable Protectors made by Kable Kontrol®, are constructed from industrial grade rubber and designed for the protection of multiple valuable cables or hoses. These durable cable protector ramps will ensure that your wires and hoses do not become potential tripping hazards for any pedestrians that will be walking over them. The hinged lid allows for the easy top loading of cables. Further, due to their rigid manufacturing process, these Atlas heavy duty cable protectors are commonly used both outdoors and indoors as well as in any in weather condition. The black base contrasted against the bright safety yellow lid makes these cable ramps highly visible to any nearby pedestrians, further lowering the possibility of pedestrian injury. These cable protector ramps can withstand thousands of pounds of vehicle drive-over weight from 14,000 - 26,000 Lbs Per Axle depending on which channel configuration you choose. Lastly, these cable protectors do not move around because of their natural weight. For maximum functionality, the rubber cable protectors have been treated for temperature resistivity and UV-stabilization.
