  • Overall Dimensions – 37” L x 16” W x 1.3” H
  • (2) Outer Channel Dimension – 1-1/2” W x 3/4” H
  • (3) Inner Channel Dimension – 1-5/16” W x 3/4” H
  • Commonly Used In Vehicle & Pedestrian High Traffic Applications
  • Can be connected to ADA Cable Protector Ramp (CP-ADA-5CH-YB)
  • 33,040 lbs per axle weight rating ensures heavy-duty performance for vehicles and equipment
  • Highly Durable To Withstand Severe Weather & Temperatures from -40º F to +130° F
  • Constructed From Highly Durable Industrial Grade Rubber Base & Polyurethane Lid
  • “T” type connector system ensures easy, secure interlocking of multiple units.
  • Hinged lid allows quick and hassle-free cable placement and removal
  • Highly Visible, Black Base & Safety Yellow Hinged lid

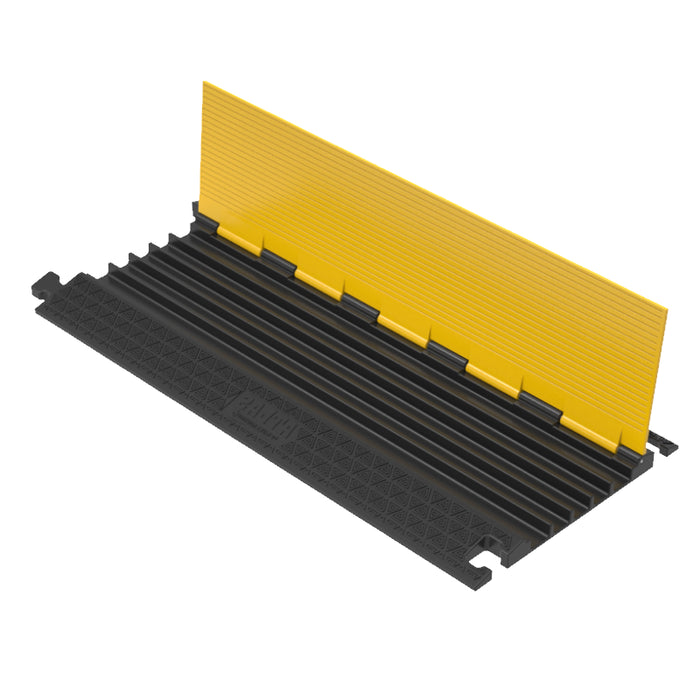

These Atlas low profile heavy duty rubber cable protectors are constructed from industrial grade rubber and designed for the protection of multiple valuable cables or hoses. These durable cable protector ramps will ensure that your wires and hoses do not become potential tripping hazards for any pedestrians that will be walking over them. The hinged lid allows for the easy top loading of cables. Furthermore, due to their rigid manufacturing process, these Atlas heavy duty cable protectors are commonly used both outdoors and indoors as well as in any in weather condition. The black base contrasted against the bright safety yellow lid makes these cable ramps highly visible to any nearby pedestrians, further lowering the possibility of pedestrian injury. With an impressive 33,040 lbs per axle weight rating, this cable protector easily withstands vehicular and pedestrian traffic. The non-skid traction surface provides enhanced stability, reducing the risk of slips or trips in busy environments. The innovative “T” type connector allows for secure interlocking between multiple units, ensuring a seamless and adaptable setup for varying lengths. The recommended operating temperature range is -40º to +130℉. Atlas Heavy Duty Rubber cable covers are designed and manufactured according to the guidelines provided by MUTCD, OSHA, RoHS, REACH. For maximum functionality, the rubber cable protectors have been treated for temperature resistivity and UV-stabilization.

RoHS & REACH Compliant

MUTCD & OSHA Compliant

SPECIFICATIONS

Part #

CP-ADA-5CH-YB

Color

Yellow Lid / Black Base

Quantity Included

1 Pc

Pallet Quantity

28

Load Capacity Per Axle

33,040 Lbs.

Load Capacity Per Tire

16,500 Lbs.

Overall Length (Inches)

37

Overall Width (Inches)

40

Overall Height (Inches)

1.3

Weight

36 Lbs.

Number of Channels

5 - Channel

Connector Type

T - Bone Connector

Channel Width (Inches)

1.5 (Outer) & 1.31 (Inner)

Channel Height (Inches)

0.75
Atlas® Cable Protectors

Atlas® Cable Protectors

The Atlas® Cable Protectors made by Kable Kontrol®, are constructed from industrial grade rubber and designed for the protection of multiple valuable cables or hoses. These durable cable protector ramps will ensure that your wires and hoses do not become potential tripping hazards for any pedestrians that will be walking over them. The hinged lid allows for the easy top loading of cables. Further, due to their rigid manufacturing process, these Atlas heavy duty cable protectors are commonly used both outdoors and indoors as well as in any in weather condition. The black base contrasted against the bright safety yellow lid makes these cable ramps highly visible to any nearby pedestrians, further lowering the possibility of pedestrian injury. These cable protector ramps can withstand thousands of pounds of vehicle drive-over weight from 14,000 - 26,000 Lbs Per Axle depending on which channel configuration you choose. Lastly, these cable protectors do not move around because of their natural weight. For maximum functionality, the rubber cable protectors have been treated for temperature resistivity and UV-stabilization.
