Steel Cable Clamps - Zinc Plated & Rubber Insulated

Steel Cable Clamps - Zinc Plated & Rubber Insulated

SKU CC-5007-C

Login To View Discounted Pricing

$57.84 - $154.72
$57.84
$57.84 - $154.72
$57.84
Request a quote

Want to Sell Our Products. Click Here

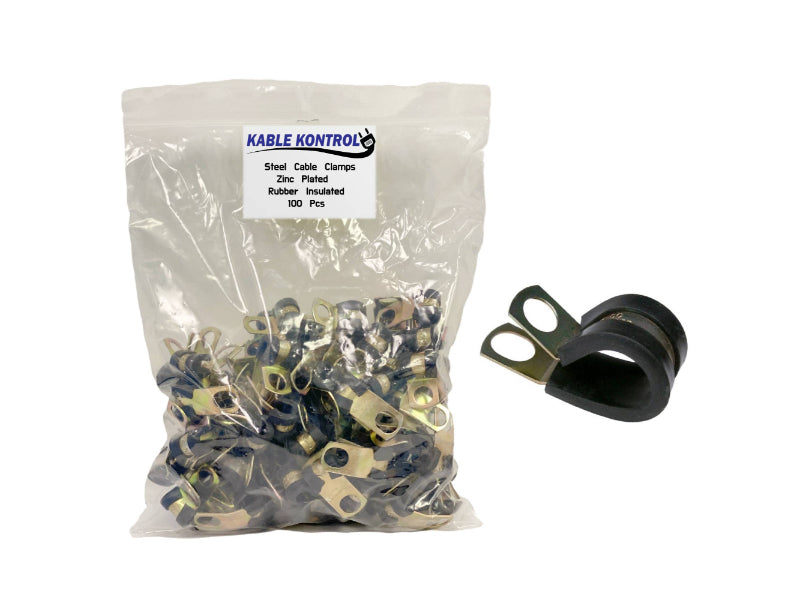

  • SOLD AS: 100 pcs Per Pack
  • Slows natural corrosion
  • No exotic chemicals used in manufacturing
  • Soldering-friendly for extra grip
  • Operating Temperature -40° C To 100° C (-40° F To 212° F)
  • 3/8" mount hole, 5/8" metal width

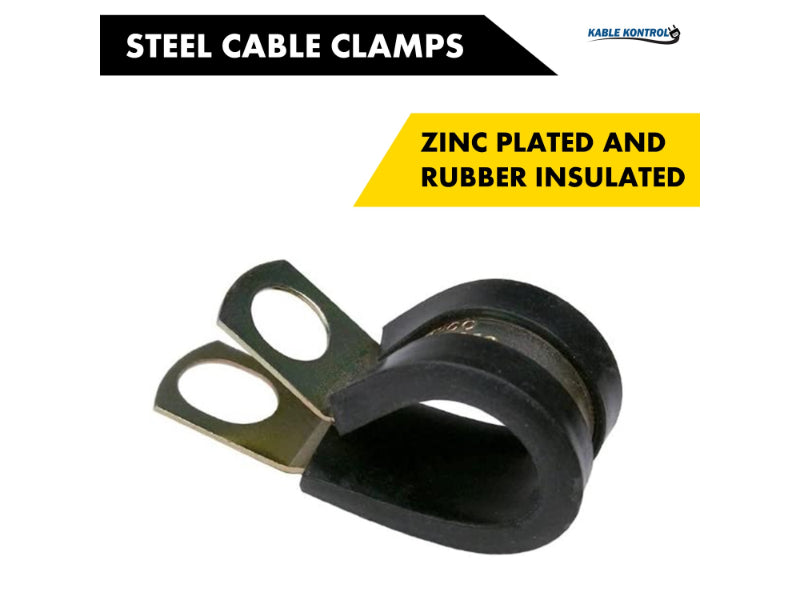

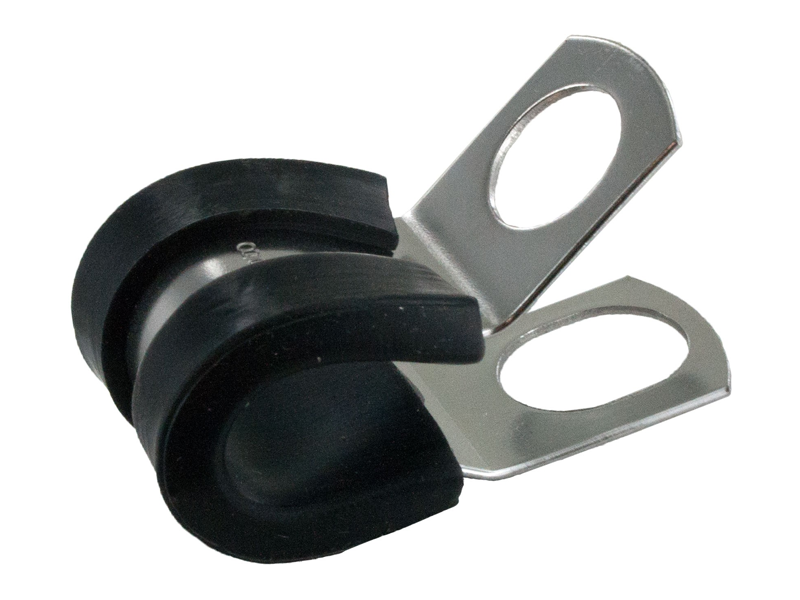

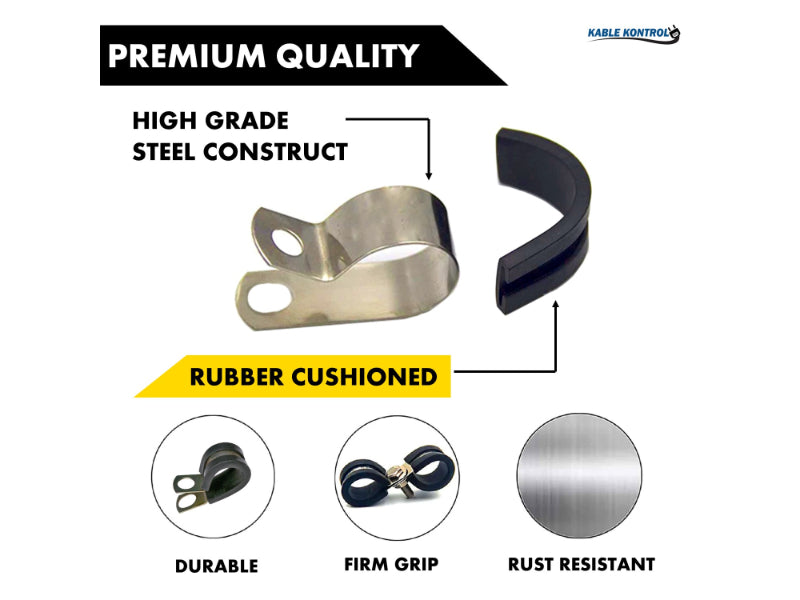

Zinc Plating Steel Cable Clamp is great for any project where a secure mounting is imperative. Zinc is compatible with solder materials, thus after mounting the zinc plated cable clamp with a screw, soldering it to the surface is an option. The plating also reduces the speed of corrosion. Combined with the rubber coating, this clamp also hinders cord vibrations once secured in the clamp and keeps rattling noises to a minimum. This rubber insulated metal clamp is also our largest in terms of its diameter and as well as the mounting hole.

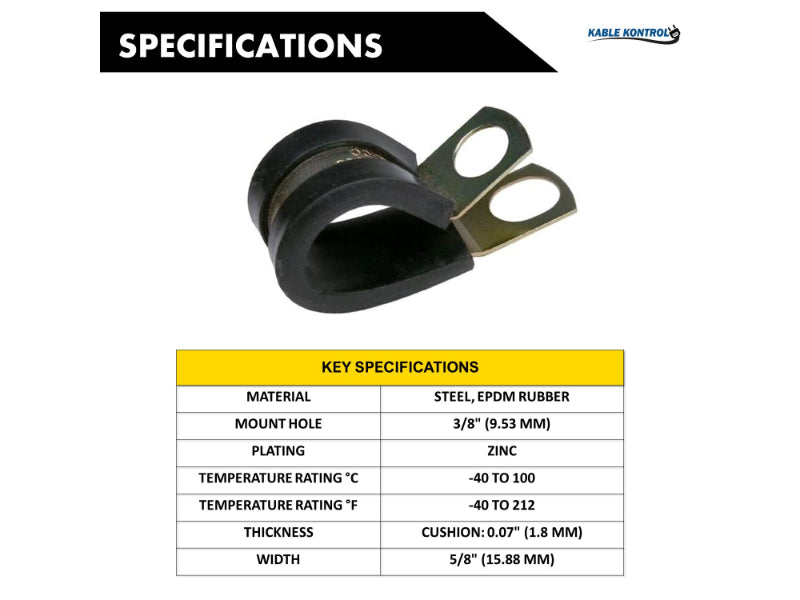

Technical Specifications

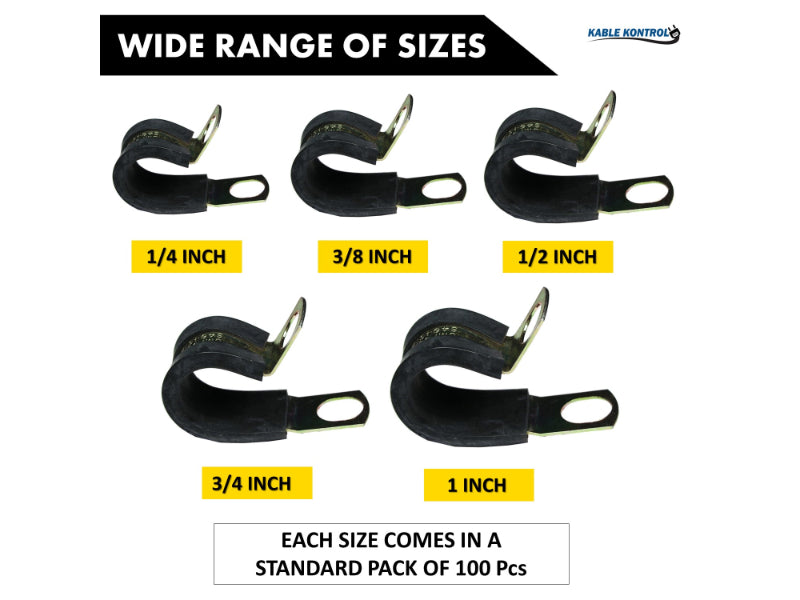

Part # Diameter Mount Hole Cushion
 Thickness		 Width
CC-5007-C 1/4” (6.35 mm) 3/8” (9.53 mm) 0.07” (1.8 mm) 5/8” (15.88 mm)
CC-5008-C 3/8” (9.53 mm) 3/8” (9.53 mm) 0.07” (1.8 mm) 5/8” (15.88 mm)
CC-5009-C 1/2" (12.70 mm) 3/8” (9.53 mm) 0.07” (1.8 mm) 5/8” (15.88 mm)
CC-5010-C 3/4" (19.05 mm) 3/8” (9.53 mm) 0.07” (1.8 mm) 5/8” (15.88 mm)
CC-5011-C 1" (25.40 mm) 3/8” (9.53 mm) 0.07” (1.8 mm) 5/8” (15.88 mm)
