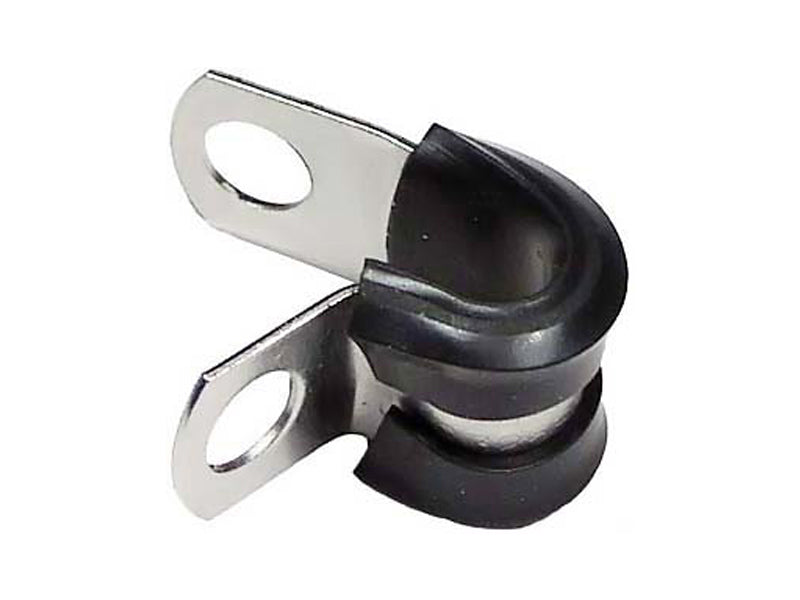

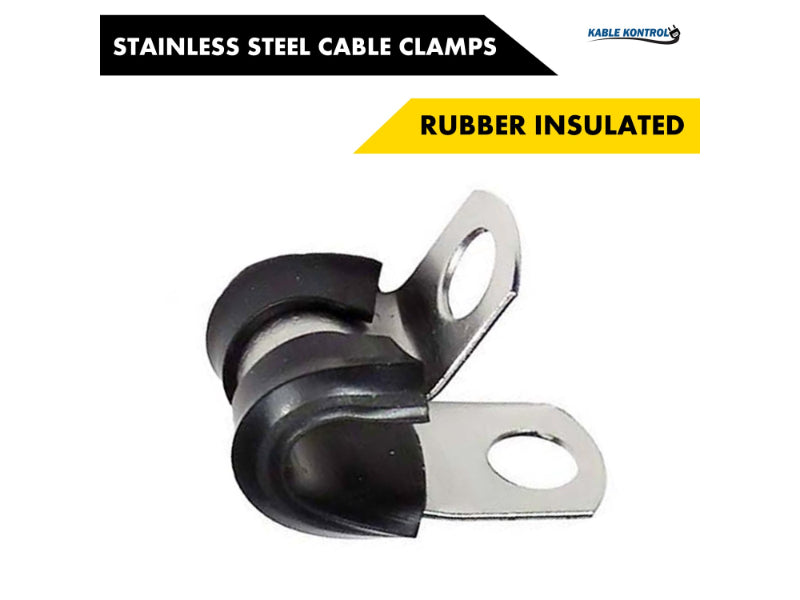

Stainless Steel Cable Clamps - Rubber Insulated

SKU

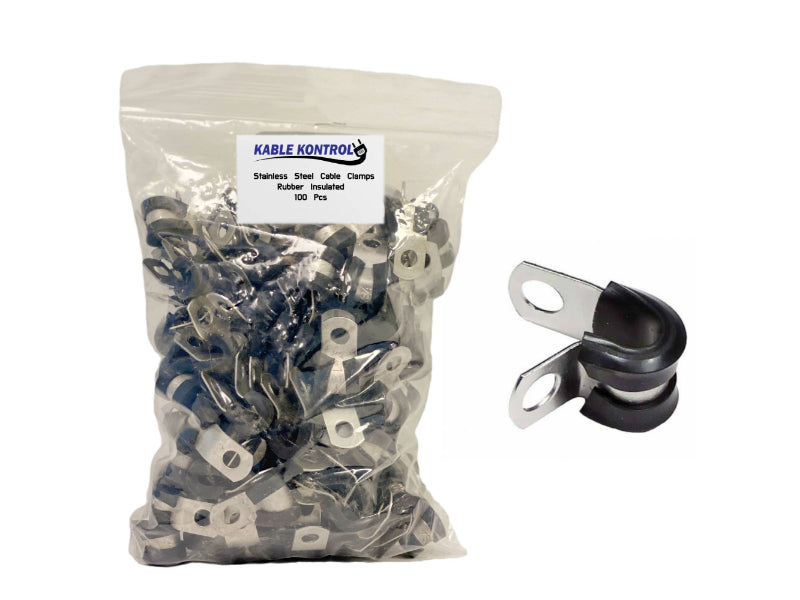

  • 100 pcs per Pack
  • Stainless steel is highly resistant to natural corrosion
  • Adapts to both extreme hot and cold temperatures
  • Secures cables together and mounts to most surfaces
  • Rubber insulated
  • Operating Temperature: : –40° C to 100° C ( –40° F to 212° F)
  • Mount hole 1/4” & 1/2” metal width
  • Thermoplastic rubber cushion rated to 194°F

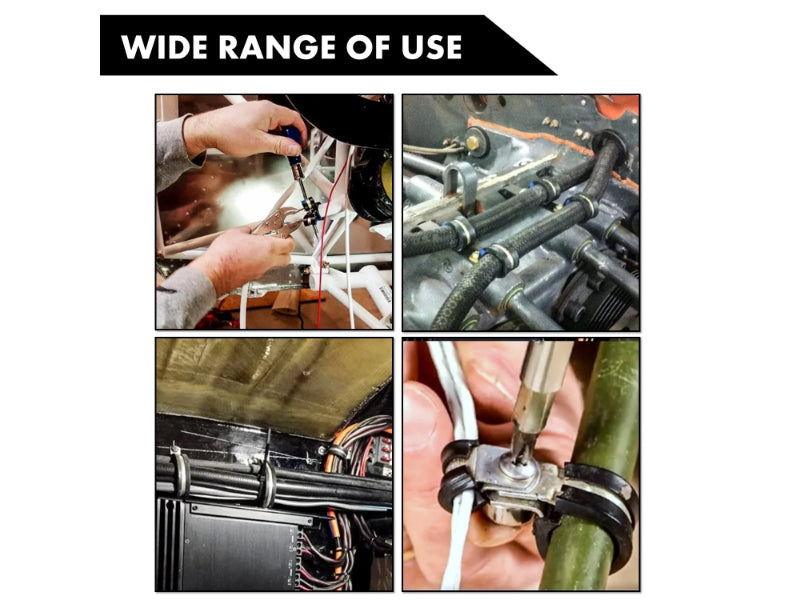

  • Commonly used with aircraft harnesses, pipes, and hoses
  • MIL Spec R-3065 & AMS-3209

These steel clamps work well with wire harnesses and wiring in an aircraft. They help you provide some insulation and vibration absorption to signal to carry wires. In this way, the delicate wiring doesn't have direct contact with the steel clamp. Both the stainless steel and rubber coating are best for upkeep and aesthetics. When impact resistance is crucial, this is the most beneficial material. Thus, stainless steel cable clamps are best used when securing cables to an unsecured spot, such as automatic doors. It is also one of the longest-lasting products (regardless of the rubber coating) due to its’ high resistance to corrosion as well as its’ overall superior properties.

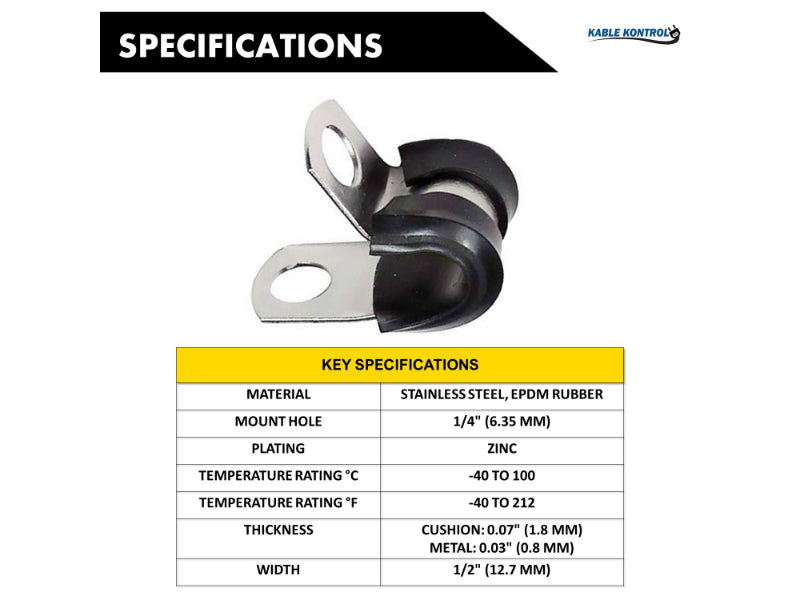

Technical Specifications

ITEM # A
Inches
B
Inches
C
Inches
D
Inches
E
Inches
F
Inches
CC-5021-C 0.25 0.39 0.5 0.25 0.787 0.055
CC-5022-C 0.25 0.51 0.5 0.38 1.00 0.059
CC-5023-C 0.25 0.598 0.5 0.5 1.22 0.059
CC-5024-C 0.25 0.716 0.5 0.75 1.37 0.059
CC-5025-C 0.25 0.866 0.5 1 1.69 0.07
