Tuff-Weave Heavy Duty Nylon Hose Sleeve
Tuff-Weave Heavy Duty Nylon Hose Sleeve
Tuff-Weave Heavy Duty Nylon Hose Sleeve
Tuff-Weave Heavy Duty Nylon Hose Sleeve
Tuff-Weave Heavy Duty Nylon Hose Sleeve
Tuff-Weave Heavy Duty Nylon Hose Sleeve
Tuff-Weave Heavy Duty Nylon Hose Sleeve
Tuff-Weave Heavy Duty Nylon Hose Sleeve
Tuff-Weave Heavy Duty Nylon Hose Sleeve
Tuff-Weave Heavy Duty Nylon Hose Sleeve

Tuff-Weave Heavy Duty Nylon Hose Sleeve

SKU HGNS-017-50
$241.32 - $1,630.65
$241.32
$241.32 - $1,630.65
$241.32

Large Quantity & Frequent Purchaser Discounts

Are you looking to place frequent or large quantity orders? Call, email or chat with us to inquire about applicable discounts!

Click Here to Request a Quote

  • MSHA-IC-359/01 Compliance Mark Stamped on Sleeving
  • MSHA Certified
  • Cuts Easily With Scissors
  • Protects Exposed Applications from UV Damage
  • Extremely Abrasion & Cut Resistant
  • Operating Temps: -49°F to 248°F (-45°C to 120°C)
  • Resists Common Chemicals, Gasoline, Salt & Solvents
  • Tightly Woven for Full Coverage & Protection
  • No Damage After 50,000 Abrasion Test Cycles
  • Deflects High-Pressure Hose Ruptures
  • Melt Temp: 410°F/210°C
  • Nylon 6 weave construction

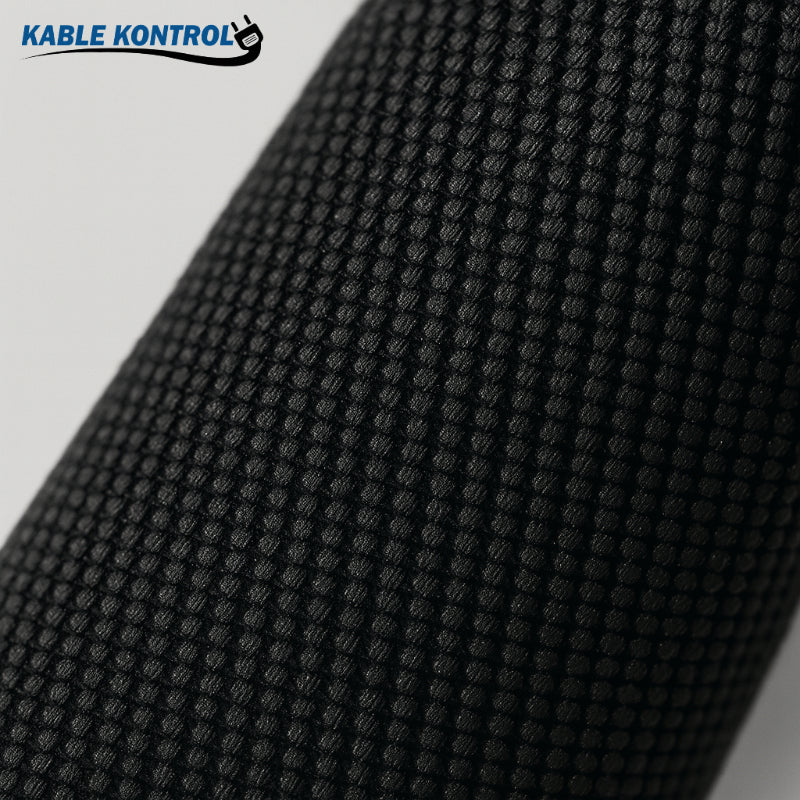

Designed to provide excellent abrasion protection, this nylon textile sleeve is used to prevent wear on hydraulic/oil lines, rubber hoses, pipes, and cabling. Thick and strong strands with a tight woven construction give a high degree of burst resistance while still maintaining decent flexibility. Nylon protective hose sleeve is resistant to abrasion, cuts, heat, and UV/Ozone deterioration.

MSHA Certified

Find This Product at These Online Retailers:

Technical Specifications

Part No. Inside Diameter Thickness Length (FT)
HGNS-017-50 0.71” 1.6 mm 165’
HGNS-017-300ft 0.71” 1.6 mm 300’
HGNS-020-50 0.77” 1.6 mm 165’
HGNS-020-300ft 0.77” 1.6 mm 300’
HGNS-023-50 0.9” 1.6 mm 165’
HGNS-023-300ft 0.9” 1.6 mm 300’
HGNS-025-50 1” 1.6 mm 165’
HGNS-025-300ft 1” 1.6 mm 300’
HGNS-027-50 1.14” 1.6 mm 165’
HGNS-027-300ft 1.14” 1.6 mm 300’
HGNS-031-50 1.25” 1.6 mm 165’
HGNS-031-300ft 1.25” 1.6 mm 300’
HGNS-033-50 1.3” 1.6 mm 165’
HGNS-033-300ft 1.3” 1.6 mm 300’
HGNS-036-50 1.38” 1.6 mm 165’
HGNS-036-300ft 1.38” 1.6 mm 300’
HGNS-040-50 1.59” 1.6 mm 165’
HGNS-040-300ft 1.59” 1.6 mm 300’
HGNS-044-50 1.75” 1.6 mm 165’
HGNS-044-300ft 1.75” 1.6 mm 300’
HGNS-047-50 1.85” 1.6 mm 165’
HGNS-047-300ft 1.85” 1.6 mm 300’
HGNS-053-50 2.07” 1.6 mm 165’
HGNS-053-300ft 2.07” 1.6 mm 300’
HGNS-055-50 2.25” 1.6 mm 165’
HGNS-055-300ft 2.25” 1.6 mm 300’
HGNS-060-50 2.38” 1.6 mm 165’
HGNS-060-300ft 2.38” 1.6 mm 300’
HGNS-066-50 2.54” 1.6 mm 165’
HGNS-066-300ft 2.54” 1.6 mm 300’
HGNS-073-50 2.64” 1.6 mm 165’
HGNS-073-300ft 2.64” 1.6 mm 300’
HGNS-078-50 2.96” 1.6 mm 165’
HGNS-078-300ft 2.96” 1.6 mm 300’
HGNS-085-50 3.34” 1.6 mm 165’
HGNS-085-300ft 3.34” 1.6 mm 300’
HGNS-093-50 3.66” 1.6 mm 165’
HGNS-093-300ft 3.66” 1.6 mm 300’
HGNS-112-50 4.5” 1.6 mm 165’
HGNS-112-300ft 4.5” 1.6 mm 300’
