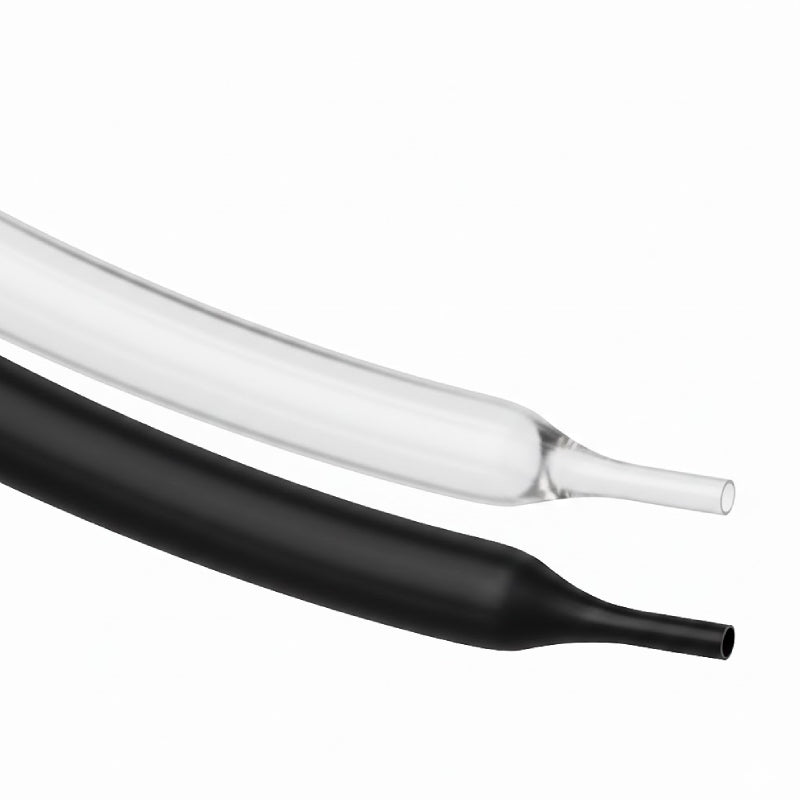

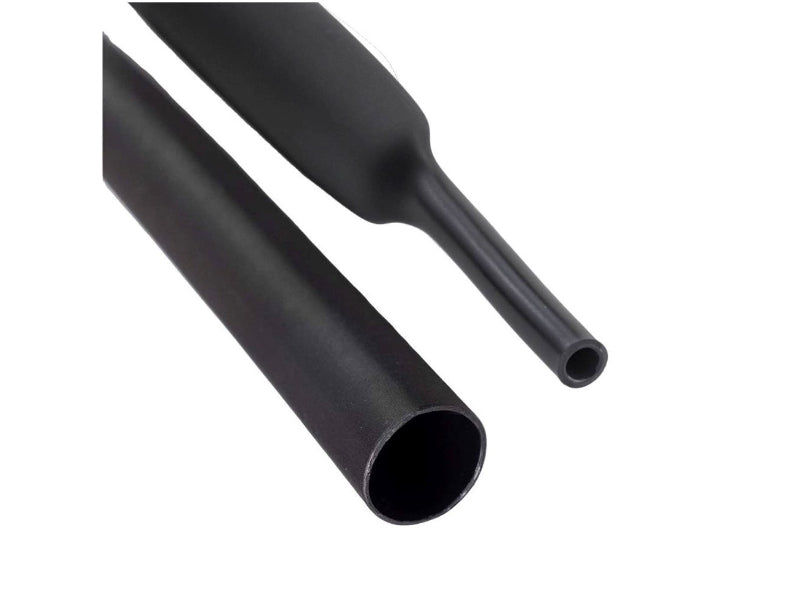

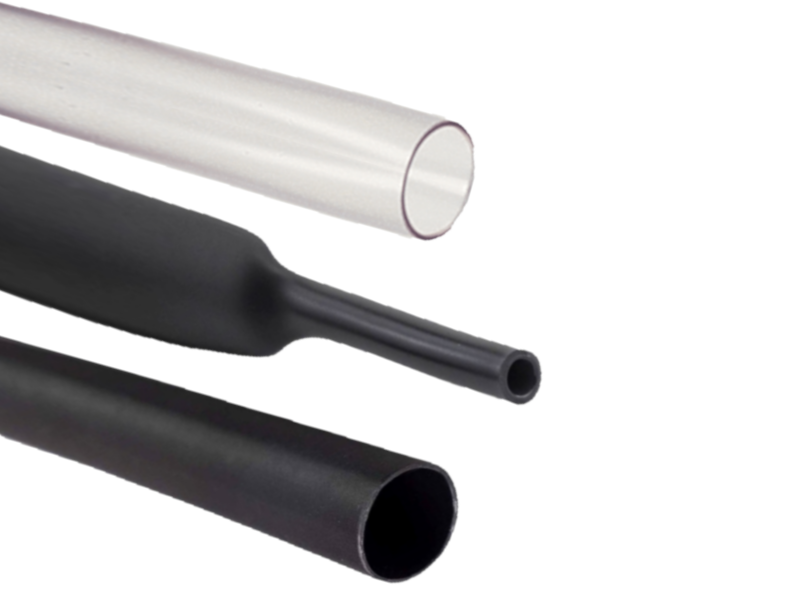

Heat Shrink Tubing - Dual Wall Adhesive Lined - Polyolefin - 4:1 Ratio

• 4' Long Stick
• UL Listed, File E536025
• RoHS Compliant
• Only Black is UV Resistant
• Made From Polyolefin Material

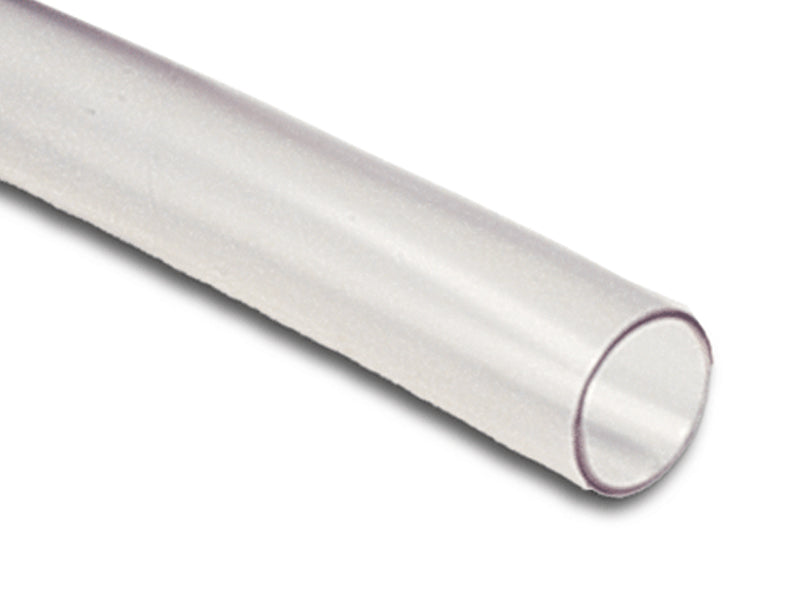

• Clear Color Is Not UL Listed
• Shrinks to 1/4 Original Size

• Meets Requirements of AMS-DTL-23053/4 Class 3
• Crosses to Sumitomo W3B2(4X), Raychem ATUM4X, LG GSH4635WT
• Please Note: Our Diameters for Heat Shrink Tubing are measured as ROUND TUBE, NOT FLAT
• Shrink ratio: 75% or more in the radial direction
• Continuous operating temperature: -55°C to 135°C
• Very high heat resistance
• High resistance to chemicals and oils
• Cross Reference: Raychem RP-4800, Alpha FIT 421, LG GSHS-4635
• Mil Spec # AMS-DTL- 23053/5
• Please be advised: All 4’ long sticks are shipped Folded to avoid costly "oversized shipping" fees for the customer. If you require your HS stick to ship un-folded please contact us

The Kable Kontrol® versatile dual walled adhesive-lined heat shrink tubing is ideally used where protection of cables and wires from moisture is important. Applied with a heat gun, tubing will adhere tightly to whatever wire or component is being protected. Tubing will shrink to 1/4 of it's original size. Typically used for insulation, identification of wires, strain relief and bundling of wires. Manufactured to meet SAE AMS-DTL-23053/4 Class 3 specifications.

• Mil Spec # AMS-DTL- 23053/13
• UL224 VW-1
