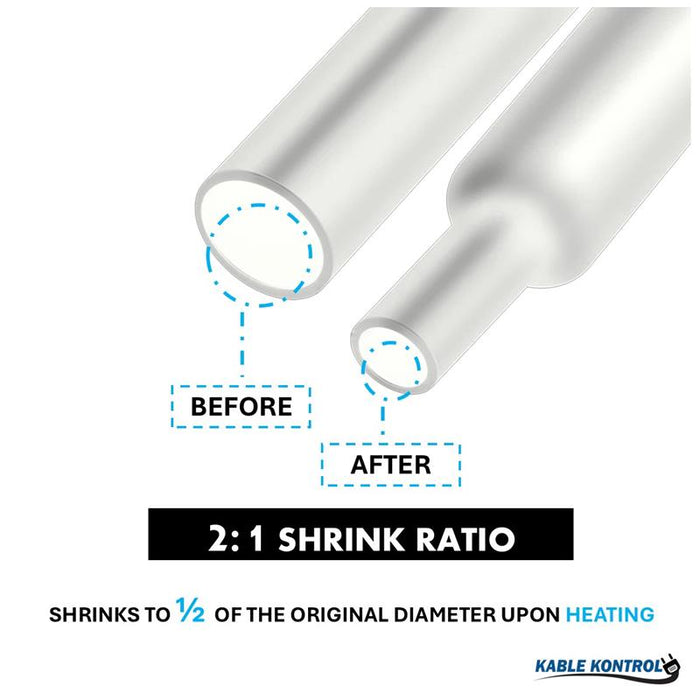

PTFE Teflon Heat Shrink Tubing 2:1

PTFE Teflon Heat Shrink Tubing 2:1

SKU HS2-PTFE-012-4-CL

Login To View Discounted Pricing

$40.32 - $104.40
$40.32
$40.32 - $104.40
$40.32
Request a quote

Want to Sell Our Products. Click Here

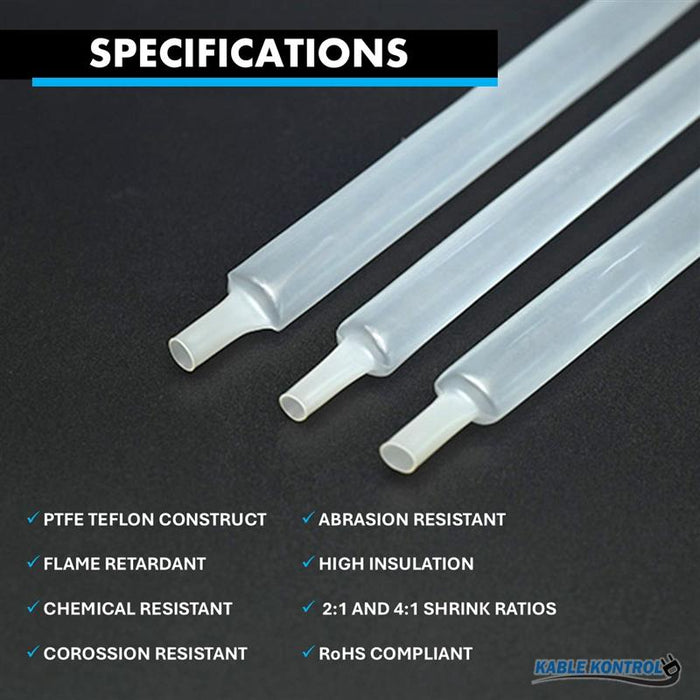

  • Sold as 4’ Feet Stick
  • Exceptional corrosion resistance: protects against acids, alkalis, chemicals, and oils
  • High dielectric strength for superior voltage insulation
  • Wide operating temperature range: -65°C to +200°C
  • Standard transparent (clear) color
  • Shrink activation temperature: >350°C

Kable Kontrol® PTFE Heat Shrinkable Tubing offers premium insulation and protection for applications exposed to extreme temperatures and aggressive chemicals. Known for its excellent resistance to corrosion and high voltage insulation, this tubing is ideal for demanding environments in chemical processing, aerospace, automotive, mechanical, transformer, and communication systems. Engineered from Teflon™ PTFE, it ensures long-term reliability, even in the most challenging conditions.

UL Listed, File E536025
RoHS Compliant

Property Test Method Standard
Tensile Strength(MPa) ASTM D2671 19
Elongation(%) ASTM D2671 200
Cold impact (-65°C) ASTMD 2671     Method C No cracking
Flammablity ASTM D2671 VW-1
Dieletric strength(kV/mm) VDE 0303 Part2 26
Volume resistivity(Ω.cm) VDE 0303 Part2 1.0X1014

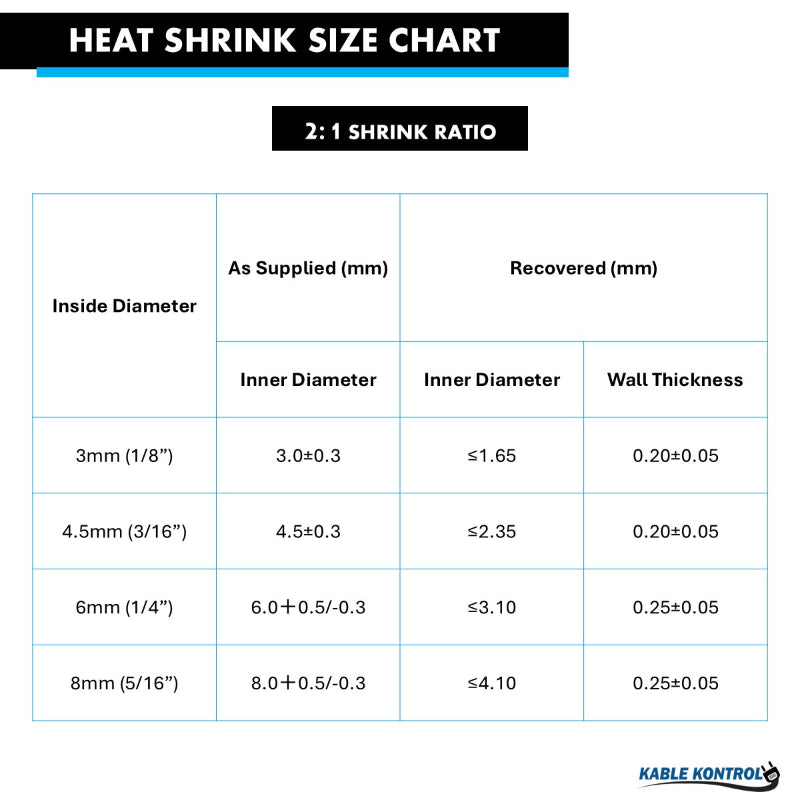

Inside Diameter As Supplied (mm) Recovered (mm)
Inner Diameter Inner Diameter Wall Thickness
3mm (1/8”) 3.0±0.3 ≤1.65 0.20±0.05
4.5mm (3/16”) 4.5±0.3 ≤2.35 0.20±0.05
6mm (1/4”) 6.0＋0.5/-0.3 ≤3.10 0.25±0.05
8mm (5/16”) 8.0＋0.5/-0.3 ≤4.10 0.25±0.05
